TWINBIRD Soft More ST Futon Dryer FD-4121GY Instruction Manual

1. அறிமுகம்

நன்றி, நன்றி.asing the TWINBIRD Soft More ST Futon Dryer FD-4121GY. This appliance is designed to provide a comfortable sleeping environment by drying futons, eliminating mites, and offering versatile drying options for shoes and small clothing items. Please read this manual thoroughly before use to ensure safe and optimal operation. Keep this manual for future reference.

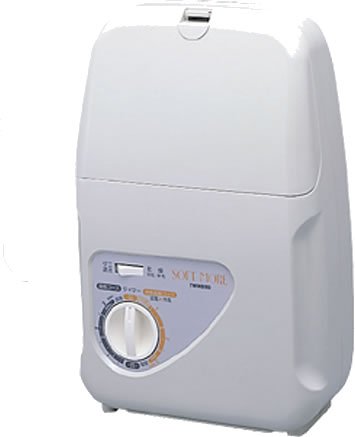

Image: TWINBIRD Soft More ST Futon Dryer FD-4121GY main unit in white.

2. பாதுகாப்பு முன்னெச்சரிக்கைகள்

To prevent injury to yourself and others, or damage to property, always observe the following safety precautions:

• Do not use the appliance with wet hands or in wet environments.
• Ensure the power cord is not damaged, pinched, or placed under heavy objects.
• Do not insert foreign objects into the air outlet or inlet.
• எரியக்கூடிய பொருட்களிலிருந்து சாதனத்தை விலக்கி வைக்கவும்.
• பயன்பாட்டில் இல்லாதபோது, ​​சுத்தம் செய்வதற்கு முன் அல்லது பராமரிப்பின் போது எப்போதும் சாதனத்தைத் துண்டிக்கவும்.
• Do not disassemble or modify the appliance. Contact qualified service personnel for repairs.
• குழந்தைகள் கருவியுடன் விளையாடாமல் இருப்பதை உறுதிசெய்ய அவர்களைக் கண்காணிக்கவும்.

3. தயாரிப்பு முடிந்துவிட்டதுview

The FD-4121GY consists of the main unit, a flexible hose, and an air mat. The main unit features a control dial for selecting drying modes and setting the timer. The hose extends to direct warm air, and the air mat is used for efficient futon drying.

கூறுகள்:

• Main Unit (with integrated hose storage)
• நெகிழ்வான குழாய்
• Futon Drying Air Mat
• Shoe Drying Attachment (integrated into hose end)
• Aroma Case (for adding fragrance during drying)

கண்ட்ரோல் பேனல்:

The control panel features a rotary dial for selecting the desired drying course and setting the timer. Indicators show the selected mode (e.g., Winter, Summer, Mite Extermination).

4 அமைவு

1. அலகைத் திறக்கவும்: Carefully remove the futon dryer and all accessories from the packaging.
2. பிரதான அலகை நிலைநிறுத்துங்கள்: Place the main unit on a stable, flat surface near the item to be dried. Ensure there is adequate space around the unit for proper ventilation.
3. Extend the Hose: Open the hose storage compartment on the main unit and pull out the flexible hose.
4. Prepare for Drying: Depending on the item you wish to dry, attach the appropriate nozzle or air mat to the end of the hose.

5. இயக்க வழிமுறைகள்

5.1. Futon Drying

This mode is ideal for warming and drying futons, mattresses, and bedding.

1. Attach Air Mat: Connect the futon drying air mat to the end of the flexible hose.
2. Insert into Futon: Lift your futon or mattress and insert the air mat underneath, ensuring it is spread out evenly to distribute warm air.
3. பாடத்திட்டத்தைத் தேர்ந்தெடுங்கள்: Turn the control dial to select either the 'Winter Course' for warming and thorough drying, or the 'Summer Course' for refreshing and removing humidity.
4. டைமரை அமைக்கவும்: Set the desired drying time using the timer dial (up to 3 hours).
5. தொடக்கம்: The unit will begin operation. For the 'Summer Course', the unit will automatically switch to cool air circulation 60 minutes before the end of the cycle to refresh the futon.

Note: Drying times may vary depending on environmental conditions and futon type. Adjust as needed.

5.2. Mite Extermination

The mite extermination function uses high heat to effectively reduce mites in your futon or mattress.

1. Prepare Futon: Follow steps 1 and 2 from '5.1. Futon Drying'.
2. Select Mite Extermination Mode: Turn the control dial to the 'Mite Extermination' setting.
3. டைமரை அமைக்கவும்: Set the recommended time for mite extermination (typically 90-120 minutes).
4. தொடக்கம்: The unit will operate at a high temperature. After the cycle, it is recommended to vacuum the futon to remove dead mites and allergens.

5.3. Shoe Drying

Dry shoes quickly and efficiently using the dedicated shoe drying attachment.

1. Attach Shoe Nozzle: Remove the air mat and attach the shoe drying nozzle to the flexible hose.
2. Insert into Shoes: Place the nozzles into each shoe.
3. Select Course & Timer: Select a suitable drying course (e.g., 'Drying' or 'Winter Course' for warm air) and set the timer.
4. தொடக்கம்: The unit will begin drying your shoes.

5.4. Small Clothing Item Drying

The unit can also be used to dry small clothing items.

1. Position Hose: Use the hose holder (if available) or position the hose to direct air towards hanging small clothing items.
2. Select Course & Timer: Select a suitable drying course and set the timer.
3. தொடக்கம்: The unit will provide warm air for drying.

5.5. Aroma Function

Enhance your drying experience with a pleasant aroma.

1. Prepare Aroma Case: Place a few drops of your favorite aroma oil onto a cotton pad and insert it into the aroma case.
2. Attach Aroma Case: Secure the aroma case to the designated slot on the hose end or attachment.
3. உலர்த்தத் தொடங்குங்கள்: Proceed with your chosen drying mode. The warm air will gently diffuse the aroma.

6. பராமரிப்பு

Regular maintenance ensures the longevity and optimal performance of your futon dryer.

• முக்கிய அலகு சுத்தம் செய்தல்: Wipe the exterior of the main unit with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• காற்று வடிகட்டியை சுத்தம் செய்தல்: Periodically check and clean the air filter located at the air intake. Remove any dust or debris to maintain airflow.
• Hose and Attachments: Wipe the hose and attachments with a damp cloth if they become dirty. Ensure they are completely dry before storing.
• சேமிப்பு: After use, ensure the hose and all attachments are stored compactly within the main unit's designated compartments. This space-saving design allows for vertical storage in small spaces like closets or shelves.

7. சரிசெய்தல்

நீங்கள் ஏதேனும் சிக்கல்களை எதிர்கொண்டால், பின்வரும் பொதுவான சிக்கல்கள் மற்றும் தீர்வுகளைப் பார்க்கவும்:

இந்த தீர்வுகளை முயற்சித்த பிறகும் சிக்கல் தொடர்ந்தால், வாடிக்கையாளர் ஆதரவைத் தொடர்பு கொள்ளவும்.

8. விவரக்குறிப்புகள்

9. உத்தரவாதம் மற்றும் ஆதரவு

This product comes with a manufacturer's warranty. Please refer to the separate warranty card included in the packaging for details on coverage and duration. For technical support, service, or inquiries regarding your TWINBIRD Soft More ST Futon Dryer FD-4121GY, please contact TWINBIRD customer service. Contact information can be found on the TWINBIRD official webதளத்தில் அல்லது உங்கள் உத்தரவாத அட்டையில்.
