R&G Racing Crash Protectors User Manual

1. அறிமுகம்

This manual provides essential information for the installation, maintenance, and safe use of R&G Racing Crash Protectors (Sturzpads) designed specifically for the Honda CBR 900 RR motorcycle models manufactured between 2000 and 2003. These crash protectors are engineered to minimize damage to your motorcycle's frame, engine casings, and other critical components in the event of a slide or fall.

Please read this manual thoroughly before attempting any installation or maintenance procedures. Proper installation is crucial for the effectiveness and safety of the product.

2. பாதுகாப்பு தகவல்

• தொழில்முறை நிறுவல் பரிந்துரைக்கப்படுகிறது: While installation instructions are provided, R&G Racing strongly recommends that these crash protectors be installed by a qualified motorcycle mechanic or technician. Incorrect installation can lead to product failure or damage to the motorcycle.
• Motorcycle Stability: Ensure the motorcycle is securely supported on a stand before beginning any work.
• கருவிகள்: Use appropriate tools for all steps. Do not overtighten or undertighten fasteners. Refer to your motorcycle's service manual for specific torque settings if applicable.
• தனிப்பட்ட பாதுகாப்பு உபகரணங்கள்: நிறுவலின் போது பொருத்தமான தனிப்பட்ட பாதுகாப்பு உபகரணங்களை (எ.கா. கையுறைகள், கண் பாதுகாப்பு) அணியுங்கள்.
• வழக்கமான ஆய்வு: Periodically inspect the crash protectors for any signs of wear, damage, or loose fasteners. Replace damaged components immediately.

3. தொகுப்பு உள்ளடக்கங்கள்

Verify that all components are present and undamaged before proceeding with installation. The typical package for R&G Racing Crash Protectors (Model CP0017BL) includes:

• 2 x Crash Protector bobbins (left and right)
• 2 x Mounting bolts (specific length and thread for your model)
• 2 x Spacers/Washers (if required for fitment)
• 1 x Installation instruction sheet (this manual serves as a comprehensive guide)

4. அமைவு மற்றும் நிறுவல்

The installation process involves mounting the crash protector bobbins to the motorcycle's frame. Specific steps may vary slightly depending on the exact model year and fairing configuration of your Honda CBR 900 RR. Always refer to the detailed instructions provided with your specific kit.

1. மோட்டார் சைக்கிளை தயார் செய்யவும்: Park the motorcycle on a level, stable surface. Ensure the engine is cool. If necessary, remove any fairing panels that obstruct access to the frame mounting points. For some models, minor fairing modification (drilling a hole) may be required.
2. மவுண்டிங் பாயிண்ட்களை அடையாளம் காணவும்: Locate the designated mounting points on the motorcycle frame. These are typically existing engine mount bolts or specific frame points designed for accessories.
3. Install Left Side Protector:
   • Carefully remove the original frame bolt (if applicable) from the left side mounting point.
   • Insert the R&G mounting bolt through the crash protector bobbin and any required spacers/washers.
   • Thread the assembly into the frame mounting point. Hand-tighten initially.
   • Once aligned, tighten the bolt to the manufacturer's specified torque setting. Do not overtighten.
4. Install Right Side Protector: Repeat the process for the right side of the motorcycle.
5. Reassemble Fairings: If fairings were removed or modified, carefully reattach them, ensuring no interference with the newly installed crash protectors.
6. இறுதி சரிபார்ப்பு: Double-check that both crash protectors are securely fastened and that all fairing panels are correctly reinstalled. Ensure there is no interference with steering or other motorcycle components.

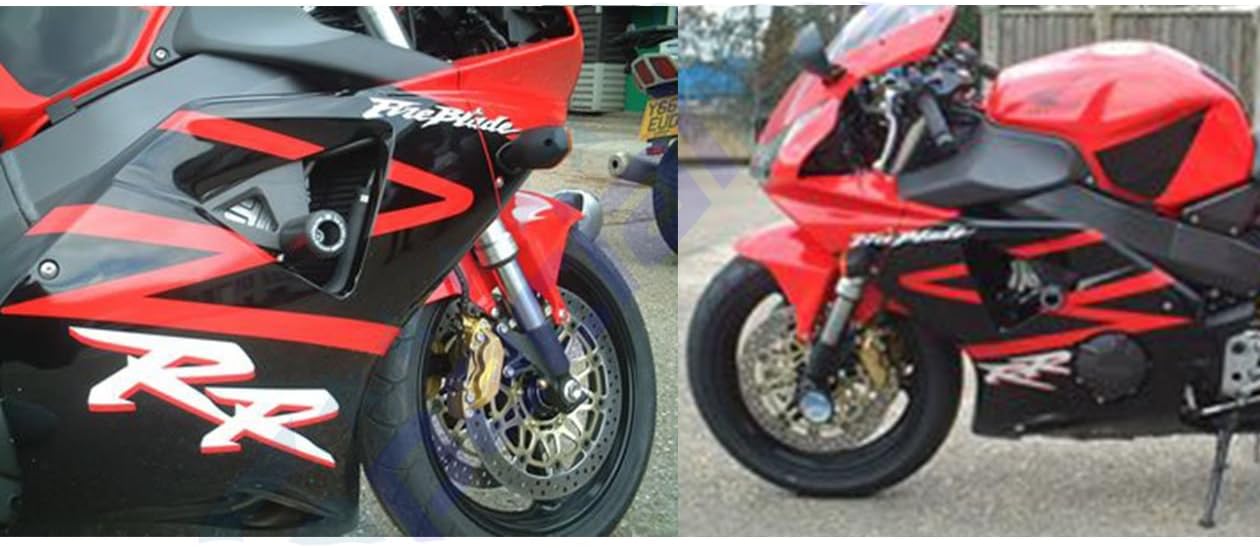

படம் 1: R&G Racing Crash Protector (Sturzpads) mounted on a Honda CBR 900 RR motorcycle. The protector is visible near the front wheel and engine area, designed to absorb impact and protect critical components during a slide or fall. The motorcycle itself is red and black, with the 'FireBlade' and 'RR' decals visible on the fairing.

5. இயக்க வழிமுறைகள்

Once properly installed, R&G Racing Crash Protectors operate passively. Their function is to provide a sacrificial point of contact with the ground in the event of a motorcycle slide or fall, thereby reducing the impact and abrasion damage to the motorcycle's frame, engine, and fairings. No active operation is required from the user.

6. பராமரிப்பு

• சுத்தம்: Clean the crash protectors periodically with a mild soap and water solution to remove dirt and road grime. Avoid harsh chemicals that may damage the material.
• ஃபாஸ்டர்னர் சோதனை: Regularly check the tightness of the mounting bolts, especially after the first few rides and then as part of your routine motorcycle inspection. Vibration can sometimes cause fasteners to loosen.
• சேத ஆய்வு: After any incident where the motorcycle has fallen or slid, thoroughly inspect the crash protectors for any signs of damage, cracking, or deformation. Even minor damage can compromise their protective capabilities.

7. சரிசெய்தல்

R&G Racing Crash Protectors are passive safety devices and typically do not require troubleshooting in the traditional sense. However, if you encounter issues:

• Loose Protector: If a crash protector feels loose, re-tighten the mounting bolt to the specified torque. If it continues to loosen, consult a professional mechanic.
• Damaged Protector: If a crash protector shows any signs of damage (e.g., cracks, deep scratches, deformation) after a fall or impact, it has served its purpose and should be replaced immediately. Do not attempt to repair damaged protectors.
• பொருத்துதல் சிக்கல்கள்: If you experience difficulty during installation or believe the product does not fit correctly, double-check the model compatibility and review the installation steps. If issues persist, contact R&G Racing customer support or a professional installer.

8. விவரக்குறிப்புகள்

9. உத்தரவாதம் மற்றும் ஆதரவு

R&G Racing products are manufactured to high standards and come with a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and product. Please retain your proof of purchase.

For warranty claims, technical support, or further assistance, please contact R&G Racing directly through their official website or authorized distributors. Contact information can typically be found on the R&G Racing webதளம்: www.rg-racing.com

குறிப்பு: Damage resulting from improper installation, misuse, neglect, or normal wear and tear is typically not covered under warranty. Crash protectors are designed to be sacrificial and will likely be damaged in an incident; such damage is not considered a manufacturing defect.
