1. அறிமுகம் மற்றும் முடிந்துவிட்டதுview
This manual provides instructions for the installation, operation, and maintenance of your VAXCEL T0494 Outland One Light Outdoor Long Arm Wall Mount. This fixture features a brushed pewter finish and is designed for outdoor use, incorporating a dusk-to-dawn photocell for automatic operation and dark-sky compliance to minimize light pollution. It is suitable for various outdoor settings such as porches, entryways, and garages.
Figure 1.1: VAXCEL T0494 Outland Outdoor Wall Mount Light, Brushed Pewter Finish.
2. பாதுகாப்பு தகவல்
எச்சரிக்கை: To reduce the risk of electric shock, always disconnect power at the main circuit breaker or fuse box before beginning installation or performing any maintenance. Ensure all electrical connections comply with local codes and ordinances, as well as the National Electric Code (NEC). If you are unfamiliar with electrical wiring, consult a qualified electrician. This fixture is designed for outdoor use and is wet-rated. Do not modify the fixture or use it for purposes other than its intended design.
3. தொகுப்பு உள்ளடக்கங்கள்
Verify that all components are present before beginning installation. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer support for assistance.
- Outdoor Wall Mount Fixture (Model T0494)
- Mounting Hardware Kit (screws, wire nuts, mounting plate)
- அறிவுறுத்தல் கையேடு (இந்த ஆவணம்)
- Shade (pre-attached or separate, depending on packaging)
4. அமைவு மற்றும் நிறுவல்
Assembly is required for this fixture. Follow these steps carefully for proper installation.
- பவரை அணைக்கவும்: Locate the circuit breaker controlling the outdoor lighting circuit and turn it OFF. Ensure power is disconnected before proceeding.
- பொருத்தும் மேற்பரப்பை தயார் செய்யவும்: Ensure the wall surface is clean, dry, and structurally sound to support the fixture.
- மவுண்டிங் பிளேட்டை நிறுவவும்: Attach the mounting plate (included in hardware kit) to the junction box using the provided screws. Ensure the plate is securely fastened.
- கம்பி இணைப்புகள்:
- இணைக்கவும் கருப்பு சாதனத்திலிருந்து கம்பி வரை கருப்பு ஒரு கம்பி நட்டைப் பயன்படுத்தி சந்திப்புப் பெட்டியிலிருந்து (சூடான) கம்பியை அகற்றுதல்.
- இணைக்கவும் வெள்ளை சாதனத்திலிருந்து கம்பி வரை வெள்ளை ஒரு கம்பி நட்டைப் பயன்படுத்தி சந்திப்புப் பெட்டியிலிருந்து (நடுநிலை) கம்பியை அகற்றுதல்.
- இணைக்கவும் தரை சாதனத்திலிருந்து கம்பி (வெற்று செம்பு அல்லது பச்சை) தரை wire from the junction box and the mounting plate using a wire nut or ground screw.
- பாதுகாப்பான பொருத்தம்: Carefully tuck all wires into the junction box. Align the fixture with the mounting plate and secure it using the provided screws. Ensure the fixture is flush against the wall and stable.
- விளக்கை நிறுவவும்: Insert a compatible bulb (see Section 5.1) into the socket. Do not exceed the maximum wattage specified in the Specifications section.
- சக்தியை மீட்டமை: சர்க்யூட் பிரேக்கரில் மீண்டும் மின்சாரத்தை இயக்கவும்.
படம் 4.1: எ.காample of the VAXCEL T0494 fixture installed on an exterior wall.

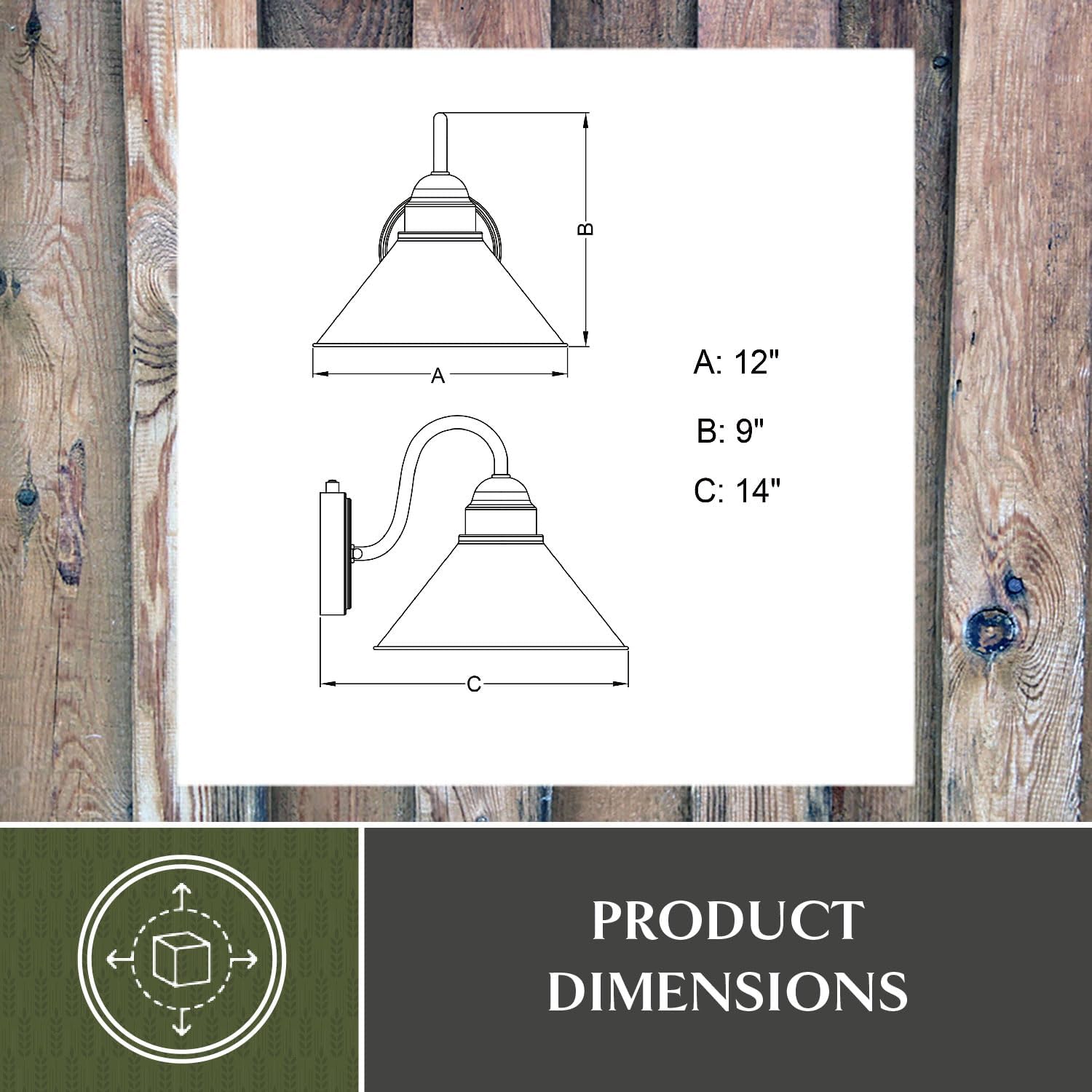

Figure 4.2: Product dimensions for planning installation. A: 12", B: 9", C: 14".
5. இயக்க வழிமுறைகள்
5.1. Dusk-to-Dawn Photocell Operation
The VAXCEL T0494 fixture is equipped with a built-in photocell sensor that automatically turns the light on at dusk and off at dawn. This feature provides convenience and energy savings by ensuring the light operates only when needed.
Figure 5.1: Illustration of the dusk-to-dawn photocell functionality, showing automatic on at dusk and off at dawn.
படம் 5.2: நெருக்கமான காட்சி view of the photocell sensor located on the fixture's base.
5.2. Compatible Bulbs
This fixture uses an E27 bulb base and supports various bulb types. Ensure the bulb wattage does not exceed 60 watts. Compatible bulb types include:
- ஆலசன்
- ஒளிரும்
- வின்tage Filament
- LED (and Color Changing)
- எல்இடி வின்tage Filament
Note: Dimmable bulbs require a compatible dimmer switch. An LED bulb must be listed as dimmable to function with a dimmer.
Figure 5.3: Visual guide to compatible bulb types for the fixture.
6. பராமரிப்பு
Regular maintenance ensures the longevity and optimal performance of your outdoor wall mount light.
- சுத்தம்: மென்மையான, d துணியால் சாதனத்தை சுத்தம் செய்யவும்.amp cloth. Do not use abrasive cleaners, solvents, or any products containing alcohol, as these can damage the finish or electrical components.
- பல்ப் மாற்று: Before replacing a bulb, ensure the power is turned off at the circuit breaker. Allow the old bulb to cool completely before removing it. Install a new bulb of the correct type and wattage (E27 base, max 60W).
- ஆய்வு: Periodically inspect the fixture for any signs of wear, damage, or loose connections. If any issues are found, disconnect power and address them promptly.
Figure 6.1: Close-up of the brushed pewter finish and hammered shade texture, highlighting areas to clean gently.
7. சரிசெய்தல்
If your fixture is not operating correctly, refer to the following troubleshooting guide:
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| ஒளி இயக்கவில்லை. |
|
|
| பகலில் வெளிச்சம் தொடர்ந்து இருக்கும். |
|
|
| ஒளி மின்னுகிறது. |
|
|
8. விவரக்குறிப்புகள்
| மாதிரி எண் | T0494 |
| பிராண்ட் | VAXCEL |
| தயாரிப்பு பரிமாணங்கள் | 35.56 x 30.48 x 22.86 செ.மீ (14 x 12 x 9 அங்குலம் தோராயமாக) |
| பொருளின் எடை | 948.01 கிராம் (2.09 பவுண்டுகள்) |
| பொருள் | அலாய் ஸ்டீல் (பொருத்துதல்), கண்ணாடி (நிழல்) |
| பினிஷ் வகை | Brushed Pewter |
| சக்தி ஆதாரம் | கம்பியூட்டப்பட்ட மின்சாரம் |
| தொகுதிtage | 120 வோல்ட் |
| வாட்tage | அதிகபட்சம் 60 வாட்ஸ் |
| பல்ப் பேஸ் | E27 |
| ஒளி மூலங்களின் எண்ணிக்கை | 1 |
| மவுண்டிங் வகை | Wall Mount, Flush Mount |
| சிறப்பு அம்சங்கள் | Dusk-to-Dawn Photocell, Dark-Sky Compliant, Wet Rated |
| சட்டசபை தேவை | ஆம் |
Figure 8.1: Illustration of the fixture's outdoor durability, highlighting its weather-resistant steel material and wet rating.
Figure 8.2: Explanation of the dark-sky compliant design, which prevents light pollution.
9. உத்தரவாதம் மற்றும் ஆதரவு
9.1. உற்பத்தியாளர் உத்தரவாதம்
முழுமையாக வேலை செய்யும் பொருளை உறுதி செய்வதற்காக வாங்கப்பட்ட அனைத்து தயாரிப்புகளுக்கும் 30 நாள் மாற்று பாகங்கள் கொள்கை உள்ளது. Amazon இல் வாங்கும் போது அனைத்து தயாரிப்புகளும் 1 வருட உத்தரவாதத்தின் கீழ் உள்ளன. தயாரிப்பு முதலில் அனுப்பப்பட்ட நாளிலிருந்து உத்தரவாதக் காலம் தொடங்குகிறது. அசல் உற்பத்தியாளரின் உத்தரவாதத்தில் அடையாளம் காணப்பட்ட அனைத்து பொருட்கள் மற்றும் நிபந்தனைகளையும் உத்தரவாதம் உள்ளடக்கியது. குறிப்பாக உத்தரவாதத்தால் உள்ளடக்கப்படாத சில பொருட்கள் இழப்பு மற்றும் திருட்டு, நீர் சேதம், வாடிக்கையாளர் துஷ்பிரயோகம் மற்றும் UV அல்லது கடலோர வெளிப்பாடு காரணமாக பூச்சு சிதைவு ஆகியவை அடங்கும்.
9.2. வாடிக்கையாளர் ஆதரவு
For technical assistance, missing parts, or warranty claims, please refer to the contact information provided with your purchase documentation or visit the VAXCEL official webஆதரவு ஆதாரங்களுக்கான தளம்.
