Jennov 5MP Dome Security Camera System Instruction Manual

1. அறிமுகம் & மேல்view

The Jennov 5MP Dome Security Camera System provides comprehensive surveillance with high-resolution video, advanced AI human detection, and robust weather resistance. This system includes a 13-inch monitor with a 1TB HDD for continuous recording, supporting up to 10 channels for future expansion. Enjoy peace of mind with remote monitoring capabilities via the Eseecloud app, real-time alerts, and versatile night vision modes.

Image: Jennov 5MP Dome Security Camera System overview.

2. தொகுப்பு உள்ளடக்கங்கள்

கீழே பட்டியலிடப்பட்டுள்ள அனைத்து பொருட்களும் உங்கள் தொகுப்பில் சேர்க்கப்பட்டுள்ளதா என்பதை சரிபார்க்கவும்:

• WiFi Recorder (NVR) x1
• WiFi Camera x4 (Dome Type)
• 1TB HDD x1 (Pre-installed in NVR)
• NVR Power Cord x1
• Power Adapter x4 (for cameras)
• Waterproof Cap x4
• அறிவுறுத்தல் கையேடு x1
• Camera Screws x4 sets
• லேன் கேபிள் x1
• நிலைப்படுத்தல் ஸ்டிக்கர் x4
• HDMI கேபிள் x1
• USB மவுஸ் x1
• Alarm Sticker x1

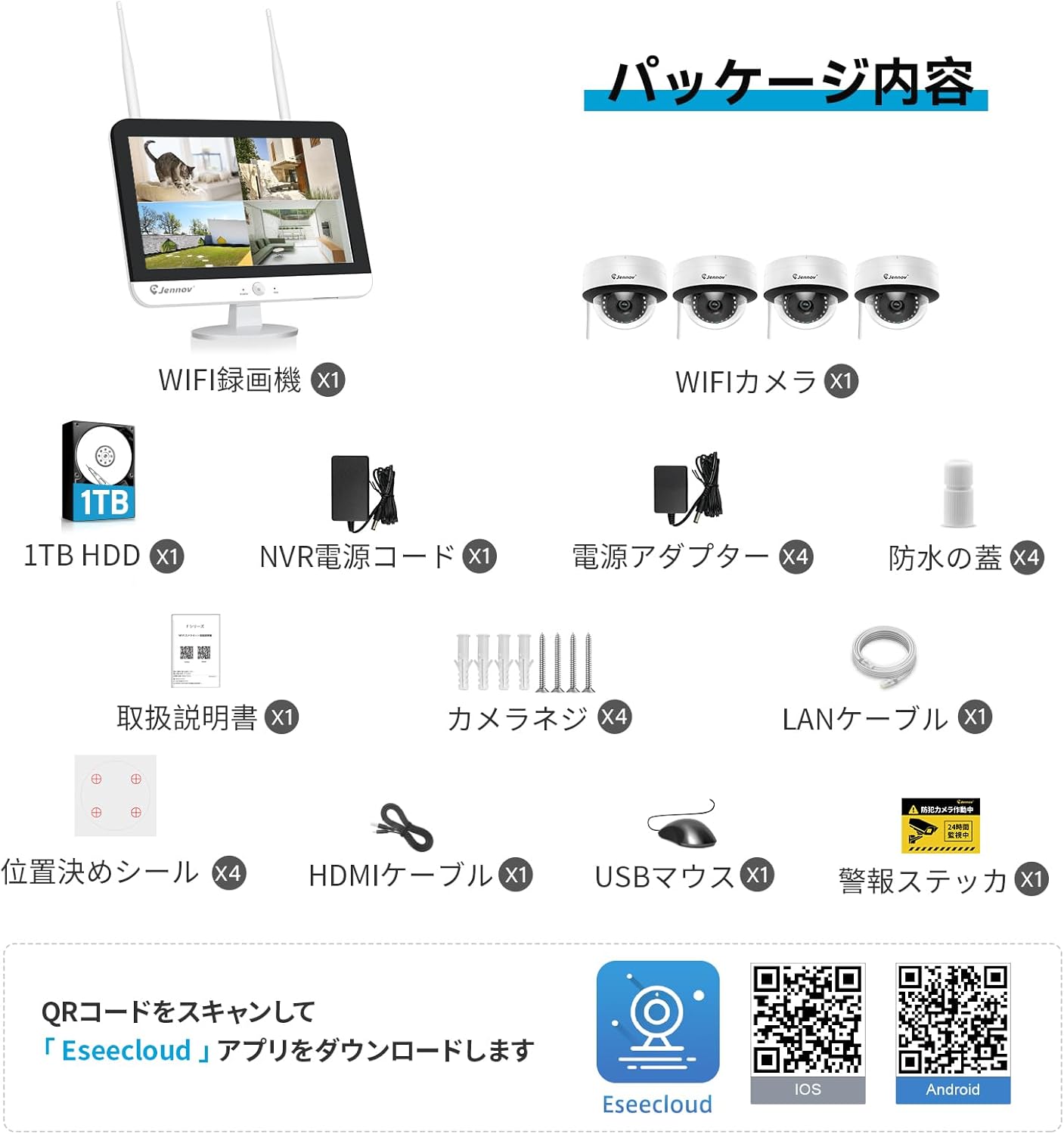

Image: All components of the Jennov 5MP Dome Security Camera System.

3. அமைவு வழிகாட்டி

3.1 கேமரா நிறுவல்

Follow these steps to install your dome cameras:

1. Remove the outer ring of the camera by unsnapping it in three places.
2. Loosen the two screws inside to adjust the camera lens to your desired monitoring direction.
3. Mount the camera base to the wall or ceiling using the provided screws. Ensure it is securely fastened.
4. Reattach the outer ring and tighten the three screws to secure the cover.

Video: This video demonstrates the installation process for a dome camera, including how to open the casing, adjust the lens, and mount it securely.

3.2 கணினி இணைப்பு

Connect the NVR (Network Video Recorder) and cameras as follows:

• Connect the USB mouse to the NVR's USB port.
• Connect the NVR power adapter to the NVR and then to a power outlet.
• ஒவ்வொரு கேமராவின் பவர் அடாப்டரையும் கேமராவுடன் இணைக்கவும், பின்னர் ஒரு பவர் அவுட்லெட்டுடன் இணைக்கவும்.
• The NVR will automatically detect and pair with the cameras once powered on.
• ரிமோட்டுக்கு viewing, connect the NVR to your router using the provided LAN cable.
• You can also connect the NVR to an external TV or monitor via HDMI or VGA for a larger display.

Image: Connecting the NVR to a television for display.

Image: Connecting the NVR to a smartphone for remote access.

4. இயக்க வழிமுறைகள்

4.1 Eseecloud App Setup & Remote Monitoring

To set up remote monitoring on your smartphone:

1. Download the Eseecloud app from the App Store (iOS) or Google Play Store (Android).
2. Register a new account using your email address.
3. Log in with your new account.
4. Tap "Add Smart Device" and scan the QR code displayed on the NVR monitor (or enter the UID manually).
5. Follow the on-screen prompts to name your device and complete the setup.

Once set up, you can view live feeds, playback recordings, and control camera functions remotely.

Video: This video demonstrates how to add a device to the Eseecloud app using a QR code for remote access.

Video: This video demonstrates various operations within the Eseecloud app, including viewing live feeds and accessing settings.

4.2 பதிவு முறைகள்

The system supports multiple recording modes to suit your needs:

• தொடர் பதிவு: Records 24/7. The 1TB HDD allows for long-term storage. Older data is overwritten when the disk is full.
• AI Human Detection Recording: Records only when human motion is detected, reducing false alarms from pets or natural phenomena.
• மோஷன் கண்டறிதல் பதிவு: Records when any motion is detected.
• திட்டமிடப்பட்ட பதிவு: Customize recording times based on your specific requirements.

படம்: முடிந்ததுview of the four available recording modes.

4.3 AI மனித கண்டறிதல் & எச்சரிக்கைகள்

The advanced AI human detection technology accurately identifies human figures, minimizing false alarms caused by rain, leaves, or pets. When an intruder is detected, you will receive instant notifications on your smartphone, allowing for timely action.

Video: This video demonstrates smart detection features, including AI human detection and smart night vision, though it features a PTZ camera model.

4.4 இருவழி ஆடியோ

Each camera is equipped with a built-in microphone, enabling real-time audio recording of the surveillance area. This feature is crucial for capturing conversations or sounds during incidents. Additionally, the system supports two-way audio communication, allowing you to speak to visitors or deter intruders directly through the app.

Image: The camera supports audio recording for enhanced surveillance.

Video: This video highlights product features including two-way audio communication and motion detection, though it features a PTZ camera model.

4.5 இரவு பார்வை முறைகள்

The system offers advanced night vision capabilities to ensure clear monitoring even in complete darkness:

• அகச்சிவப்பு இரவு பார்வை: Provides clear black and white images in low-light conditions using infrared LEDs.
• ஸ்மார்ட் நைட் விஷன்: Automatically switches between color and monochrome images based on detected motion. White LED lights illuminate upon detection to deter intruders and capture color footage.

Image: High-quality video footage during both day and night.

5. பராமரிப்பு

To ensure optimal performance and longevity of your Jennov Security Camera System, regular maintenance is recommended:

• சுத்தம்: Gently wipe camera lenses and housings with a soft, damp தூசி மற்றும் அழுக்குகளை அகற்ற துணி. சிராய்ப்பு கிளீனர்களைத் தவிர்க்கவும்.
• நிலைபொருள் புதுப்பிப்புகள்: Periodically check the Eseecloud app or Jennov website for firmware updates to ensure your system has the latest features and security patches.
• கேபிள் ஆய்வு: Regularly inspect all cables for any signs of wear, damage, or loose connections.
• HDD ஆரோக்கியம்: The NVR's 1TB HDD is designed for continuous use. While durable, it's good practice to periodically check its health status through the NVR settings.

6. சரிசெய்தல்

If you encounter issues with your Jennov Security Camera System, refer to the following common troubleshooting tips:

• வீடியோ ஊட்டம் இல்லை: Ensure all cameras and the NVR are powered on and connected correctly. Check network connectivity if viewing remotely.
• மோசமான படத்தின் தரம்: Clean camera lenses. Ensure cameras are within WiFi range or consider using the repeater function for extended coverage.
• ஆடியோ இல்லை: Verify microphone settings in the Eseecloud app or NVR interface. Ensure volume is not muted.
• தவறான அலாரங்கள்: Adjust AI human detection sensitivity or define specific detection zones to minimize unwanted alerts.
• தொலைநிலை அணுகல் சிக்கல்கள்: Confirm the NVR is connected to the internet via LAN cable. Check your router settings and ensure the Eseecloud app is updated.

7. விவரக்குறிப்புகள்

8. உத்தரவாதம் & ஆதரவு

Your Jennov Security Camera System comes with a 12-month warranty from the date of purchase. For technical support, sales inquiries, or payment-related questions, please contact us using the information below:

• தொலைபேசி: 05050509046
• Webதளம்: www.jennov.com
• மின்னஞ்சல்: ஆதரவுjp@jennov.com

The product also holds PSE and GITEKI certifications, ensuring compliance with safety and technical standards.

Image: Product certifications (PSE, GITEKI).
