1. தயாரிப்பு முடிந்துவிட்டதுview
The Sanotechnik Uni Complete Shower Cabin, Model PS15B, is a modern and functional shower solution designed for contemporary bathrooms. This cabin integrates high-quality materials and intelligent design to provide a comfortable and efficient showering experience. It features 4mm ESG safety glass, black aluminum profiles, and chrome-plated handles, ensuring durability and ease of maintenance.
Key features include a silent corner sliding door system with foldable rollers for space efficiency, a single-lever mixer with an adjustable hand shower, and a practical glass shelf for toiletries. The cabin is delivered largely pre-assembled and includes a 15 cm high shower tray. It is designed without a roof to ensure adequate air exchange and simplify cleaning.
படம் 1.1: முன் view of the Sanotechnik Uni Complete Shower Cabin, showcasing its black aluminum frame and clear glass panels.
2. அமைவு மற்றும் நிறுவல்
While the Sanotechnik Uni Shower Cabin is largely pre-assembled, professional installation is recommended to ensure proper function and water-tightness. The cabin is delivered in three cartons. Please inspect all components for damage before beginning installation.
2.1 பிரித்தெடுத்தல் மற்றும் கூறு சரிபார்ப்பு
- Carefully unpack all cartons and lay out the components on a clean, protected surface.
- பேக்கிங் பட்டியலில் பட்டியலிடப்பட்டுள்ள அனைத்து பாகங்களும் உள்ளனவா மற்றும் சேதமடையாமல் உள்ளதா என்பதைச் சரிபார்க்கவும்.
- Identify the shower tray, glass panels, aluminum profiles, door rollers, handles, mixer, hand shower, and glass shelf.
2.2 தளம் தயாரித்தல்
- Ensure the installation area is level, clean, and has appropriate water supply and drainage connections.
- The floor must be capable of supporting the weight of the shower cabin and water.
- Refer to the technical drawing for precise dimensions and connection points.

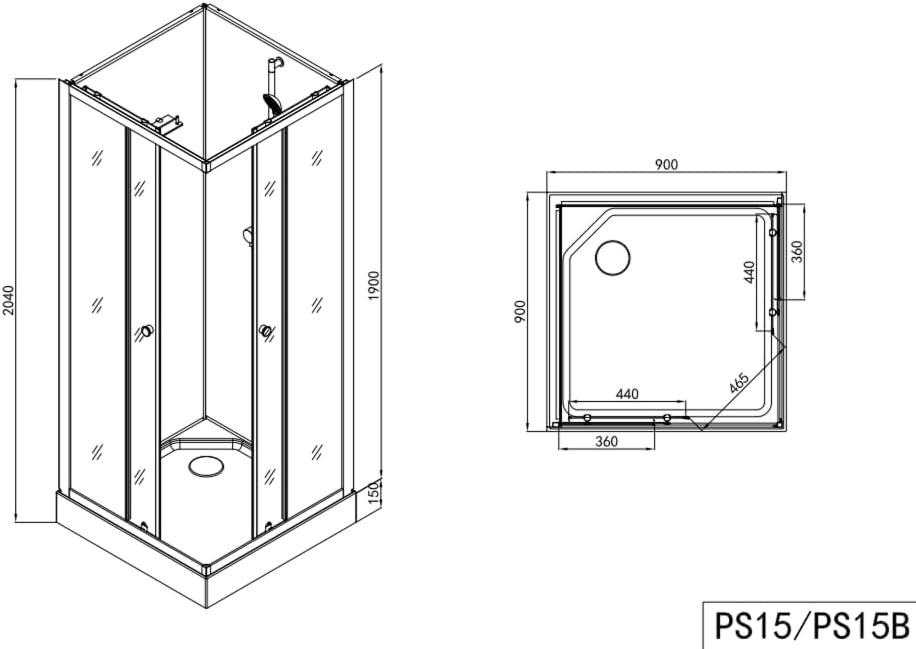

Image 2.1: Technical drawing illustrating the dimensions and layout of the shower cabin, essential for planning installation.
2.3 அசெம்பிளி படிகள் (பொது வழிகாட்டுதல்)
- Position the shower tray: Place the 15 cm high acrylic shower tray in the desired corner, ensuring it is level and properly connected to the drainage system.
- Install back panels and side profiles: Secure the white ESG back panels and black aluminum side profiles according to the manufacturer's instructions.
- Mount the sliding door system: Attach the upper and lower tracks for the sliding doors. Install the foldable rollers onto the glass doors and then mount the doors onto the tracks.
- Connect plumbing: Install the single-lever mixer and connect it to the hot and cold water supplies. Attach the hand shower and its adjustable bar.
- Install accessories: Mount the chrome-plated handles onto the doors and secure the glass shelf inside the cabin.
- Seal all joints: Apply silicone sealant to all external joints between the cabin and the bathroom walls/floor to prevent water leakage. Allow adequate drying time before use.
Image 2.2: Detail of the black aluminum top corner frame, highlighting the robust construction.
படம் 2.3: View of the bottom track and rollers, showing the mechanism for the sliding doors.
3. இயக்க வழிமுறைகள்
3.1 சறுக்கும் கதவுகள்
The shower cabin features a corner sliding door system with foldable rollers for smooth and quiet operation. To open or close the doors, gently push or pull the chrome-plated handles. Ensure the doors are fully closed before starting the shower to prevent water leakage.
Image 3.1: Detail of the chrome-plated handles on the sliding doors.
3.2 Single-Lever Mixer and Hand Shower
- நீர் ஓட்டம் மற்றும் வெப்பநிலை: The single-lever mixer controls both water flow and temperature. Lift the lever to increase water flow and move it left or right to adjust the temperature.
- கை மழை: The hand shower is attached to an adjustable bar. You can slide the hand shower holder up or down the bar to set the desired height. The shower head itself may have multiple spray settings, which can be adjusted by rotating the shower head face.
3.3 கண்ணாடி அலமாரி
The integrated glass shelf provides convenient storage for your toiletries. Ensure items placed on the shelf are stable and do not exceed its weight capacity.
Image 3.2: The practical glass shelf for storing shower essentials.
4. பராமரிப்பு
Regular cleaning and maintenance will ensure the longevity and optimal performance of your Sanotechnik Uni Shower Cabin.
4.1 Cleaning Glass Panels and Aluminum Profiles
- After each use, rinse the glass panels with clean water to remove soap residue.
- Use a soft cloth or squeegee to wipe down the glass and aluminum profiles to prevent water spots and limescale buildup.
- For deeper cleaning, use a mild, non-abrasive bathroom cleaner specifically designed for glass and aluminum surfaces. Avoid harsh chemicals, abrasive sponges, or scouring powders, as these can damage the surfaces.
4.2 Cleaning Shower Tray
- Clean the acrylic shower tray regularly with a mild, non-abrasive cleaner and a soft cloth.
- Ensure the drain is clear of hair and debris to maintain proper water flow.
4.3 Door Rollers and Tracks
- Periodically inspect the sliding door rollers and tracks for any buildup of soap scum or debris.
- Clean the tracks with a small brush and mild soapy water to ensure smooth operation.
- The foldable rollers can be detached for thorough cleaning if necessary, following the manufacturer's specific instructions for removal and reattachment.
Image 4.1: Detail of the top rollers and track, showing the mechanism that allows the doors to slide smoothly.
5. சரிசெய்தல்
This section addresses common issues you might encounter with your shower cabin.
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| Water leakage from the cabin | Improper sealing; loose connections; damaged seals. | Check all silicone seals and reapply if necessary. Ensure all plumbing connections are tight. Inspect door seals for damage and replace if needed. |
| Sliding doors are stiff or noisy | Debris in tracks; worn or dirty rollers; misaligned doors. | Clean tracks and rollers thoroughly. Lubricate rollers with a silicone-based spray (avoid oil-based lubricants). Check door alignment and adjust if possible. |
| Poor water flow from hand shower | Clogged shower head; low water pressure; issue with mixer. | Clean the shower head nozzles. Check household water pressure. If the problem persists, consult a plumber for mixer inspection. |
| Water spots or limescale on glass | Hard water residue; infrequent cleaning. | Wipe down glass after each use. Use a specialized limescale remover for glass, following product instructions. |
6. விவரக்குறிப்புகள்
| அம்சம் | விவரம் |
|---|---|
| பிராண்ட் | சனோடெக்னிக் |
| மாதிரி | PS15B |
| பரிமாணங்கள் (L x W x H) | 90 x 90 x 203 செ.மீ |
| எடை | 75 கிலோகிராம் |
| நிறம் | Black (profiles), White (back panels) |
| பொருள் | Aluminum, Tempered Glass (ESG 4mm), Acrylic (shower tray) |
| கதவு உடை | நெகிழ் கதவுகள் |
| Shower Tray Height | 15 செ.மீ |
| சட்டசபை தேவை | Yes (installation) |
| கூரை | No (open top for ventilation) |
7. உத்தரவாதத் தகவல்
Specific warranty terms and conditions for the Sanotechnik Uni Complete Shower Cabin are provided by the retailer or manufacturer at the time of purchase. Please retain your proof of purchase for any warranty claims.
Generally, warranties cover manufacturing defects under normal use. Damage resulting from improper installation, misuse, lack of maintenance, or unauthorized modifications may not be covered. For detailed information, please refer to the warranty documentation included with your product or contact your point of purchase.
8. வாடிக்கையாளர் ஆதரவு
If you require assistance with installation, have questions about product operation, or need to report a defect, please contact the retailer from whom you purchased the Sanotechnik Uni Complete Shower Cabin.
ஆதரவைத் தொடர்பு கொள்ளும்போது, பின்வரும் தகவல்களைத் தயாராக வைத்திருக்கவும்:
- Product Model: PS15B
- வாங்கிய தேதி
- பிரச்சினையின் விளக்கம்
- உங்கள் தொடர்புத் தகவல்
For further information regarding Sanotechnik products, you may visit the official Sanotechnik webதளம்.
