USonline911 Replacement Foil and Blade Combo Instruction Manual

1. அறிமுகம்

This manual provides instructions for the installation and maintenance of the USonline911 replacement foil and blade combo, designed for specific Panasonic electric shaver models. Regular replacement of shaver components ensures optimal performance and a comfortable shaving experience.

2. இணக்கத்தன்மை

This replacement foil and blade combo (model WES9015Y1361) is compatible with the following Panasonic shaver models:

• Panasonic ES-LT2
• Panasonic ES-LT4
• Panasonic ES-LT6

Please verify your shaver model before installation to ensure proper fit and function.

3. Why Replace Your Shaver Components?

Over time, the foil and blades of your electric shaver can become dull, pitted, or damaged. This can lead to:

• Reduced shaving efficiency, requiring more passes.
• Skin irritation, redness, or discomfort.
• A less close and satisfying shave.

Replacing these components regularly helps maintain your shaver's cutting performance and ensures a comfortable shave.

படம்: Recommended replacement schedule for shaver components. It is advised to replace the outer foil approximately every year and the inner blade approximately every two years for optimal performance.

4. தொகுப்பு உள்ளடக்கங்கள்

உங்கள் தொகுப்பில் பின்வருவன அடங்கும்:

• 1 x Shaving Foil (Outer Foil System)
• 1 x Blade (Inner Blade)

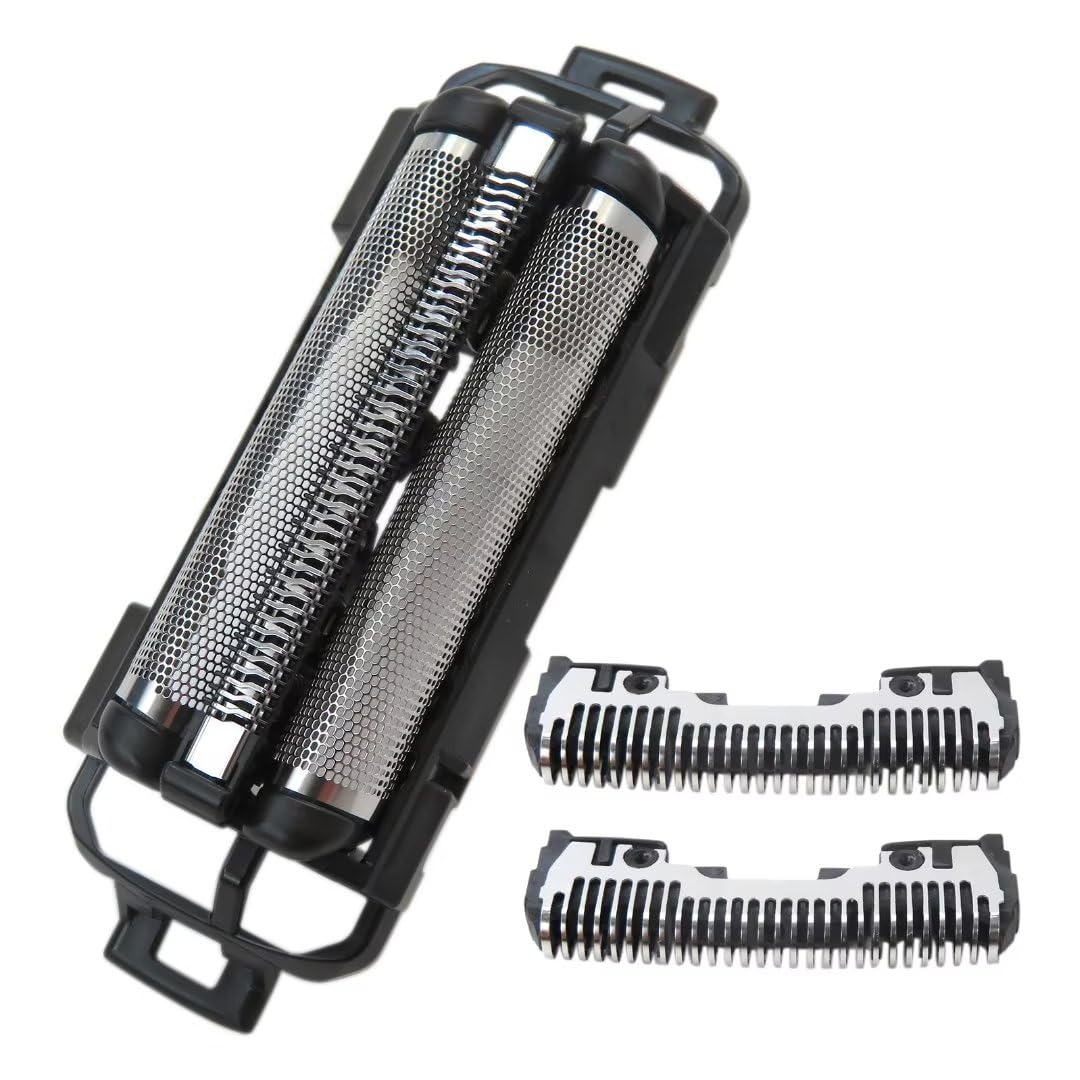

படம்: The complete replacement shaving foil and blade set, ready for installation.

5. நிறுவல் வழிமுறைகள்

Before installing the new foil and blade, ensure your shaver is turned off and disconnected from any power source. Clean the razor head thoroughly before proceeding.

5.1. Disassembly of Old Components

1. Remove Outer Tool Rest: Hold the left and right buttons on the shaver head and gently pull the outer tool rest upwards to remove it.
2. Remove Outer Tool Head: With the outer tool rest removed, hold the left and right buttons on the outer tool head and pull it upwards to detach.
3. Remove Internal Tool Head (Blades): Carefully grab both sides of the internal blades and pull them out one by one.

5.2. புதிய கூறுகளை நிறுவுதல்

1. Install Internal Tool Head (Blades): Align the new internal blades with their respective slots and press them down until they click into place. Ensure they are securely seated.
2. Install Outer Tool Head: Place the new outer tool head onto the shaver body. Press down firmly until you hear a click, ensuring it is securely attached.
3. Install Outer Tool Rest: Position the outer tool rest over the outer tool head. Apply even force from left to right and press down until it clicks into place.

படம்: Detailed tutorial for tool head installation, showing disassembly and reassembly steps for the outer tool rest, outer tool head, and internal tool head.

6. பராமரிப்பு மற்றும் சுத்தம்

Proper maintenance extends the life of your replacement components and ensures hygienic use.

• தினசரி சுத்தம்: After each shave, remove the outer foil and rinse the blades and foil under running water to remove hair clippings and debris.
• முழுமையான சுத்தம்: Periodically, disassemble the shaver head as described in the installation section and clean all components with a brush and warm soapy water. Rinse thoroughly and allow to air dry completely before reassembling.
• நீர்ப்புகா வடிவமைப்பு: The components are made of high-quality, waterproof materials, allowing for easy cleaning under running water.

படம்: The replacement foil and blades are designed for easy cleaning under water, facilitating hygiene and maintenance.

படம்: The shaver components are waterproof, allowing for convenient and thorough cleaning under running water.

7. தயாரிப்பு விவரக்குறிப்புகள்

8. சரிசெய்தல்

If you experience issues after replacing the foil and blade:

• மோசமான ஷேவிங் செயல்திறன்: Ensure the components are correctly installed and fully clicked into place. Verify that the replacement parts are compatible with your specific shaver model.
• தோல் எரிச்சல்: Ensure the shaver head is clean and free of debris. If irritation persists, ensure the components are correctly seated and consider if the issue might be related to your shaving technique or skin sensitivity.

மேலும் உதவிக்கு, வாடிக்கையாளர் ஆதரவைத் தொடர்பு கொள்ளவும்.

9. உத்தரவாதம் மற்றும் ஆதரவு

For any questions regarding this product, including warranty information or technical support, please contact USonline911 customer service. Refer to your purchase documentation for specific contact details or visit the USonline911 store on Amazon: USonline911 Store.
