Garosa PH-803W PH ORP Controller User Manual

1. அறிமுகம்

The Garosa PH-803W is a dual-measurement PH and ORP controller designed for continuous water quality monitoring. This device provides real-time readings of both pH and Oxidation-Reduction Potential (ORP) values, making it suitable for various applications such as aquariums, hydroponics, laboratories, and industrial water treatment. It features BNC socket electrodes for easy connection and two output power sockets for controlling external devices.

படம் 1: மேல்view of the PH-803W PH ORP Controller, including the main unit, electrodes, and power outlet.

2. தயாரிப்பு அம்சங்கள்

• Dual Measurement Display: Simultaneously measures and displays PH value (0.00 to 14.00) and ORP value (-1999 to 1999 mV).
• நிகழ் நேர கண்காணிப்பு: Adopts a real-time measurement method for continuous data display.
• எளிதான செயல்பாடு: No need to press buttons to switch between PH and ORP measurement values.
• ஒருங்கிணைந்த கட்டுப்பாடு: 2-in-1 PH and ORP controller with BNC socket electrodes and two output power sockets for external device control.
• நீடித்த கட்டுமானம்: Made from high-quality ABS material for longevity.
• ஏசி இயங்கும்: Designed for long-term, continuous water quality monitoring and control.

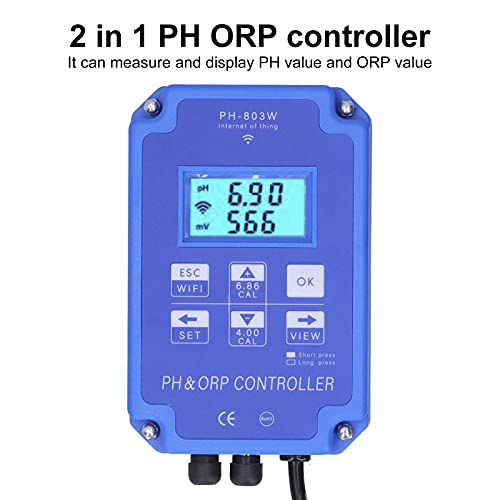

Figure 2: The controller's display shows both PH and ORP values simultaneously.

3. தொகுப்பு உள்ளடக்கங்கள்

தொகுப்பில் அனைத்து பொருட்களும் உள்ளதா என சரிபார்க்கவும்:

• 1 x ORP/PH Water Quality Detector (Main Unit)
• 1 x ORP Pole Test Pen (Electrode)
• 1 x PH Pole Test Pen (Electrode)
• 2 x உறிஞ்சும் கோப்பைகள்
• 1 x ஹூக்
• 1 x பயனர் கையேடு

4. விவரக்குறிப்புகள்

5. அமைவு வழிமுறைகள்

1. மின் இணைப்பு: Plug the controller into a standard 110V AC power outlet. Turn on the device.
2. மின்முனை இணைப்பு: Connect the PH electrode and the ORP electrode to their respective BNC sockets on the controller. Ensure connections are secure.
3. பாதுகாப்பு உறைகளை அகற்று: Carefully remove the protective covers from both the PH and ORP electrodes. எச்சரிக்கை: Avoid touching the glass bulb of the electrode with bare hands, as it is fragile and can be damaged by impact or contamination.
4. Initial Electrode Cleaning: Before first use, or if the electrodes have been stored dry, rinse them with distilled water or alcohol. Gently wipe the plastic shell and shake off any small water droplets from the electrode tip to prevent interference with test results.
5. WiFi Configuration (Optional): The device supports WiFi connectivity for real-time monitoring via a mobile application. Long press the 'ESC WIFI' button to enter WiFi network configuration mode. Follow the instructions in the mobile application to connect the device to your network. குறிப்பு: The mobile application is compatible with Android devices only.

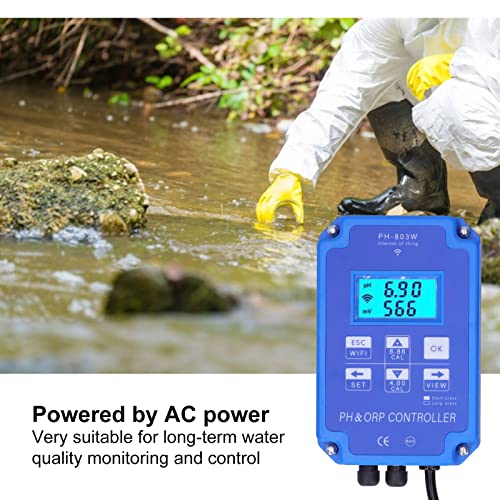

Figure 3: The controller is powered by an AC outlet for continuous operation.

Figure 4: The controller can connect to a mobile application via WiFi for remote monitoring (Android only).

6. இயக்க வழிமுறைகள்

1. மூழ்குதல்: Insert the electrodes into the solution to be measured, ensuring that the measuring electrodes are fully immersed.
2. அளவீடு: Gently shake the electrodes to dislodge any small air bubbles that may be clinging to the electrode surface. Wait for the display numbers to stabilize before taking a reading. The PH and ORP values will be displayed simultaneously.
3. நிகழ் நேர கண்காணிப்பு: The device continuously displays the PH and ORP values. No button presses are required to switch between measurements.
4. மொபைல் பயன்பாட்டு கண்காணிப்பு: If configured, use the dedicated mobile application on your Android device to view real-time data and water quality changes remotely.
5. வெளியீடு கட்டுப்பாடு: The two output power sockets can be used to connect and control external devices (e.g., solenoid valves, pumps) based on the measured PH and ORP values, according to your configured settings.

Figure 5: Real-time monitoring of water quality data is available on the device and via a mobile application.

படம் 6: எ.காample setup demonstrating simultaneous PH/ORP measurement and output control in an aquarium environment.

7. பராமரிப்பு

• பயன்பாட்டிற்கு பிறகு: After each measurement, unplug the power supply. Clean the electrodes thoroughly with clean water (preferably distilled water) and replace their protective covers.
• மின்முனை சேமிப்பு: Store electrodes with their protective caps filled with a suitable storage solution (e.g., KCL solution) or distilled water to prevent drying out. Never store electrodes dry.
• நீண்ட கால பயன்பாடு: For continuous, long-term monitoring, ensure the instrument and electrodes are securely fixed in place to prevent accidental damage or displacement.
• அளவுத்திருத்தம்: Regular calibration of the PH and ORP electrodes is essential for maintaining accuracy. Refer to the calibration section (if available in a separate guide) or the device's on-screen prompts for calibration procedures.

8. சரிசெய்தல்

• தவறான அளவீடுகள்: Ensure electrodes are clean and properly calibrated. Check for air bubbles on the electrode surface during measurement.
• காட்சி இல்லை: Verify the power supply is connected and the device is turned on. Check for any loose connections.
• நிலையற்ற அளவீடுகள்: Ensure the electrodes are fully immersed and the solution is not agitated excessively. Allow sufficient time for readings to stabilize.
• வைஃபை இணைப்புச் சிக்கல்கள்: Confirm your WiFi network is active and the password is correct. Ensure the device is within range of the WiFi router. Remember the mobile app is for Android devices only.
• Electrode Damage: If readings remain erratic or impossible to calibrate, the electrodes may be damaged or have reached the end of their lifespan and require replacement.

9. உத்தரவாதத் தகவல்

This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. The warranty period typically begins from the date of purchase. Please retain your proof of purchase for warranty claims. For specific warranty terms and conditions, refer to the documentation provided with your purchase or contact customer support.

10. வாடிக்கையாளர் ஆதரவு

For technical assistance, troubleshooting, or inquiries regarding your Garosa PH-803W PH ORP Controller, please contact Garosa customer support. Contact information can typically be found on the product packaging, the official Garosa webதளம் அல்லது உங்கள் சில்லறை விற்பனையாளர் மூலம்.
