Generic Solar Infrared Sensor Wireless Driveway Alarm System

1. அறிமுகம்

This manual provides detailed instructions for the installation, operation, and maintenance of your Generic Solar Infrared Sensor Wireless Driveway Alarm System. This system is designed to provide reliable motion detection and alerts for various outdoor and indoor applications, utilizing solar power for the motion sensor and a plug-in receiver for convenience. Please read this manual thoroughly before using the product to ensure proper function and longevity.

2. பாதுகாப்பு தகவல்

• சாதனத்தை பிரிக்கவோ அல்லது மாற்றவோ முயற்சிக்காதீர்கள். இது சேதத்தை ஏற்படுத்தலாம் மற்றும் உத்தரவாதத்தை ரத்து செய்யலாம்.
• Ensure the plug-in receiver is connected to a standard household power outlet (110-240V).
• Keep the solar panel clean to ensure optimal charging efficiency.
• Avoid placing the motion sensor in direct line of sight of heat sources or rapidly changing light conditions, which may cause false alarms.
• The motion sensor is weatherproof, but avoid submerging it in water.

3. Package Contents & Product Overview

தொகுப்பில் பின்வரும் கூறுகள் உள்ளன:

• 1 Solar Wireless Motion Sensor
• 2 Plug-in Alarm Receivers
• அறிவுறுத்தல் கையேடு

3.1. கூறு அடையாளம்

Figure 1: Dimensions and key components of the Plug-in Alarm Receiver and Solar Wireless Motion Sensor. The receiver measures approximately 3.3 inches by 3.3 inches by 1.1 inches. The sensor measures approximately 6.1 inches by 3.3 inches by 2.1 inches.

படம் 2: விரிவானது view of the Solar Wireless Motion Sensor, showing the integrated solar panel for charging and the infrared sensor lens.

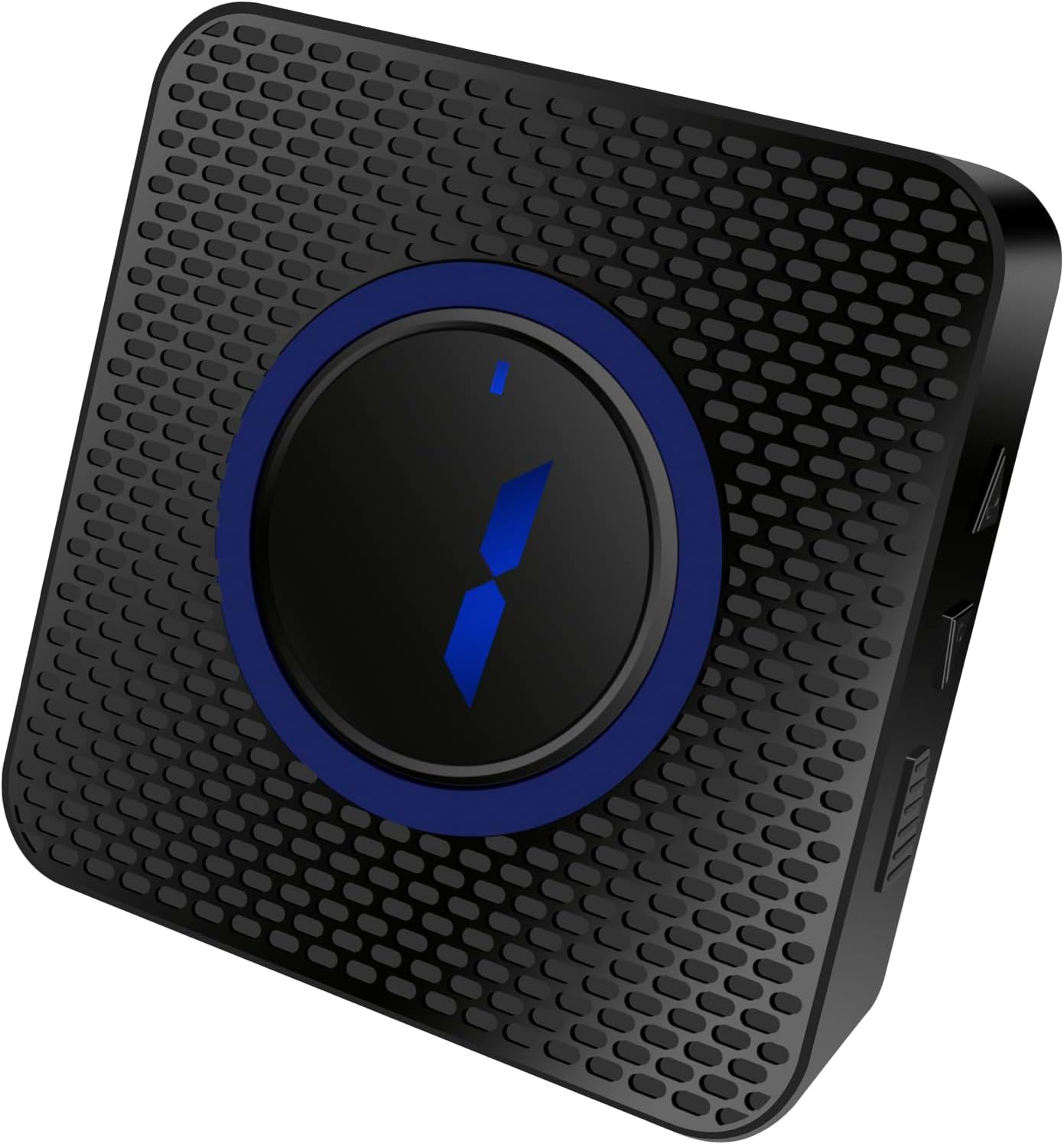

படம் 3: விரிவானது view of the Plug-in Alarm Receiver, featuring a textured surface and a central indicator light.

4. அமைவு & நிறுவல்

4.1. Solar Wireless Motion Sensor Installation

1. சார்ஜ்: The motion detector is solar powered. Ensure the solar panel is exposed to direct sunlight for optimal charging. A Type-C charging socket is also available for alternative charging. The solar charger can be fully charged within 8 hours of sunlight, providing power for over 9000 transmissions and a standby time of over 4 months. One hour of sunlight per day can cover a day's power consumption.
2. மவுண்டிங்: Place the detector in the desired position. It is recommended to install the detector at a height of approximately 1.3 meters (about 4.3 feet) for the best detection range. The installation height and angle will affect the detection range. The sensor can be mounted using fixed screws or silicone glue.
3. Adjusting Sensing Distance: The infrared sensing is highly sensitive. You can switch between three sensing distances: 5-8 meters (low sensitivity), 8-12 meters (medium sensitivity), and 13-16 meters (high sensitivity). Refer to Figure 4 for visual guidance.

Figure 4: Guide for adjusting the solar sensing distance. 'Shine up a bit' for 5-8 meters, 'Shine twice' for 8-12 meters, and 'Shine third' for 13-16 meters.

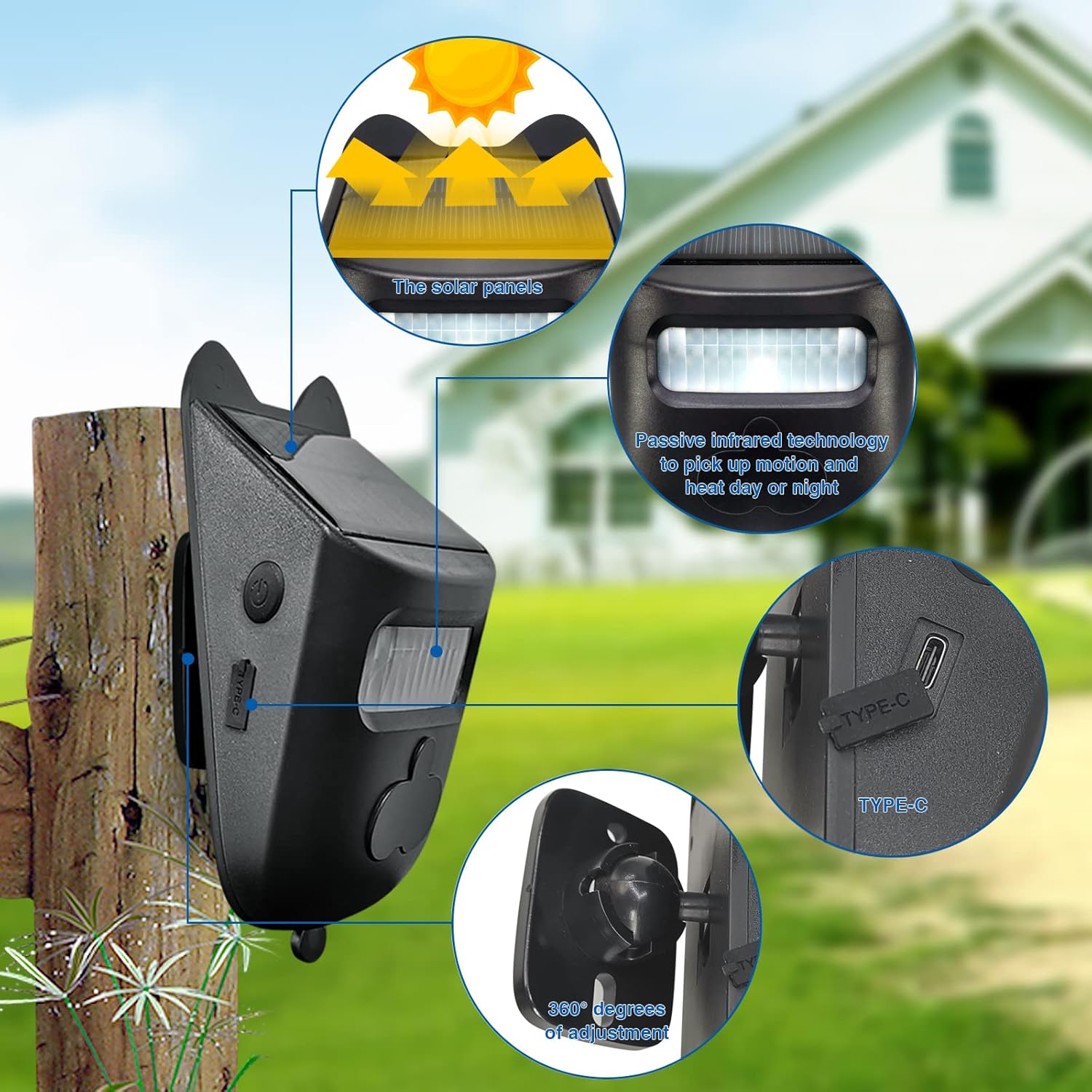

Figure 5: The Solar Wireless Motion Sensor features solar panels, passive infrared technology for motion and heat detection day or night, a Type-C charging port, and 360-degree adjustment for flexible positioning.

4.2. Plug-in Alarm Receiver Setup

1. மின் இணைப்பு: Plug the receiver into a standard 110-240V household power outlet.
2. இணைத்தல்: The system is typically pre-paired. If re-pairing is needed or if you are adding additional sensors/receivers, follow the pairing instructions in the operating section. One receiver can connect to multiple motion sensors, and one sensor can also be connected to multiple receivers.

4.3. நிறுவல் வீடியோ வழிகாட்டி

5. இயக்க வழிமுறைகள்

5.1. அடிப்படை செயல்பாடு

• Once the motion sensor is powered and the receiver is plugged in, the system is active.
• When motion is detected by the solar sensor, a signal is sent wirelessly to the receiver, which will then sound an alarm and/or illuminate an indicator light.

5.2. Adjusting Settings on the Receiver

Figure 6: The Plug-in Alarm Receiver offers 3 adjustable volume levels (high, medium, low, and mute) and 38 optional melodies. It can be set to provide sound alerts with an indicator light, or silent alerts with only the indicator light.

• தொகுதி சரிசெய்தல்: The receiver has four-level volume options (high, medium, low, and mute). Use the dedicated volume buttons on the side of the receiver to adjust the sound level.
• மெல்லிசை தேர்வு: Choose from 38 available melodies. Use the 'Previous Song' and 'Next Song' buttons on the receiver to cycle through the options.
• எச்சரிக்கை முறை: The prompt function can be set as sound (sound + indicator light on) or silence (indicator light on only).

5.3. மேம்பட்ட அம்சங்கள்

• பல சாதனங்களை இணைத்தல்: The system supports pairing multiple detectors with one receiver, or one detector with multiple receivers, allowing for flexible coverage of your property.
• பரந்த அளவிலான பயன்பாடுகள்: This system is suitable for various scenarios including gates, small courtyards, driveways, gardens, small supermarkets, and as general motion alarms.

படம் 7: எ.காamples of application scenarios for the alarm system, including monitoring doorways, vehicles, animals, and detecting intruders.

Figure 8: The system offers a wireless transmission range of up to 1/2 mile (600 feet) from sensor to receiver, with a sensor detection range of up to 30 feet (high sensitivity) and a horizontal detection angle of 89 degrees.

6. பராமரிப்பு

• சுத்தம்: Regularly wipe the solar panel and sensor lens with a soft, damp cloth to remove dust, dirt, or debris that may obstruct sunlight or sensor performance. Do not use harsh chemicals or abrasive cleaners.
• பேட்டரி பராமரிப்பு: The solar sensor's internal battery is designed for long life. Ensure consistent exposure to sunlight for optimal performance. If extended periods of low light occur, use the Type-C port for charging.
• வானிலை பாதுகாப்பு: While weatherproof, extreme weather conditions (e.g., heavy snow accumulation on the solar panel) may temporarily affect performance. Clear any obstructions as needed.

7. சரிசெய்தல்

8. விவரக்குறிப்புகள்

9. உத்தரவாதம் & ஆதரவு

For warranty information and customer support, please refer to the documentation provided at the point of purchase or contact your retailer. Keep your purchase receipt as proof of purchase for any warranty claims.
