அறிமுகம்
This manual provides essential information for the installation, operation, and maintenance of your new Generic Condenser Fan Motor Assembly. This component is designed to replace the original condenser fan motor in compatible Samsung refrigerator models, ensuring proper cooling system function.
பாதுகாப்பு தகவல்
WARNING: Before attempting any installation or repair, ensure the refrigerator is completely disconnected from the power supply. Failure to do so can result in electric shock, serious injury, or death.
- Always wear appropriate personal protective equipment, suchs as gloves and safety glasses.
- ஏதேனும் ஒரு படி குறித்து உங்களுக்கு சந்தேகம் இருந்தால், தகுதிவாய்ந்த உபகரண பழுதுபார்க்கும் தொழில்நுட்ப வல்லுநரை அணுகவும்.
- குழந்தைகள் மற்றும் செல்லப்பிராணிகளை வேலைப் பகுதியிலிருந்து விலக்கி வைக்கவும்.
- Handle the motor assembly carefully to avoid damage to components or personal injury.
தயாரிப்பு இணக்கத்தன்மை
This condenser fan motor assembly is compatible with a wide range of Samsung refrigerator models. Please verify your refrigerator's model number against the list below to ensure proper fit and function.
Exampஇணக்கமான மாதிரிகள்:
- RF26HFENDWW/AA-00, RF26HFENDWW/AA-02
- RF31FMESBSR/AA-07, RF31FMESBSR/AA-05, RF31FMESBSR/AA-06, RF31FMESBSR/AA-08
- RF263BEAESP/AA-03, RF263BEAESP/AA-02
- And many other Samsung models as listed in the product description.
For a complete list of compatible models, refer to the product listing or contact the seller.
பெட்டியில் என்ன இருக்கிறது
- One (1) Condenser Fan Motor Assembly
நிறுவல் (அமைவு)
The replacement of a condenser fan motor typically involves working with electrical components and refrigerant lines. It is highly recommended that this procedure be performed by a qualified appliance repair technician.
General Steps (for informational purposes only; consult a professional):
- மின் இணைப்பை துண்டிக்கவும்: சுவர் கடையிலிருந்து குளிர்சாதன பெட்டியை அவிழ்த்து விடுங்கள்.
- Access Condenser Area: Depending on your refrigerator model, this usually involves removing a rear access panel at the bottom of the unit.
- Locate and Disconnect Old Motor: Identify the existing condenser fan motor. Disconnect any wiring harnesses and remove mounting screws or clips.
- Remove Fan Blade: Carefully remove the fan blade from the old motor shaft. Note its orientation.
- புதிய மோட்டாரை நிறுவுதல்: Attach the new fan blade to the shaft of the new motor, ensuring correct orientation. Mount the new motor assembly in place using the original hardware.
- வயரிங் இணைக்க: Reconnect the wiring harness to the new motor.
- அணுகல் பலகத்தை மாற்றவும்: Securely reattach the rear access panel.
- சக்தியை மீட்டமை: குளிர்சாதன பெட்டியை மீண்டும் சுவர் கடையில் செருகவும்.
- சோதனை செயல்பாடு: Listen for the fan motor to operate and check for proper cooling.

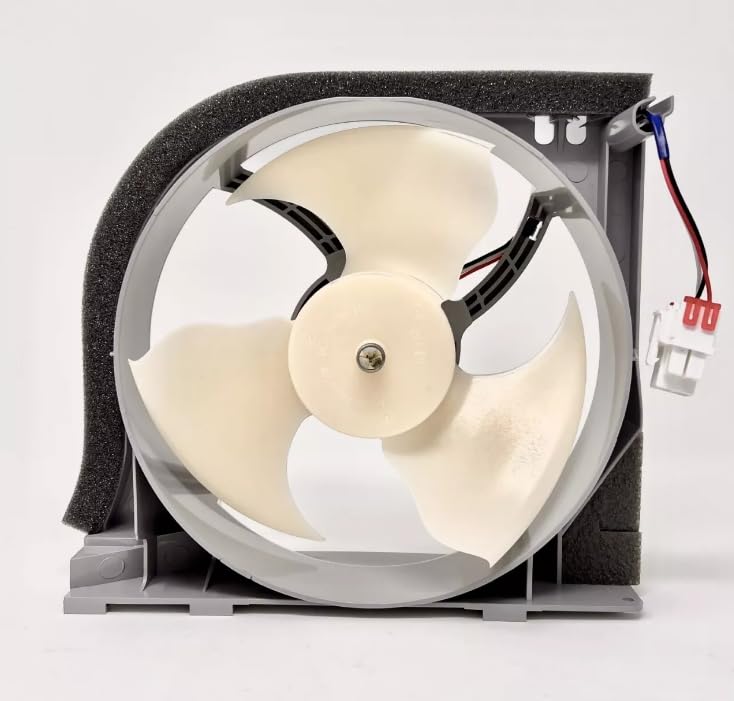

Image: The Generic Condenser Fan Motor Assembly. This image shows the motor unit with its attached fan blade, ready for installation.
இயக்கக் கோட்பாடுகள்
The condenser fan motor plays a critical role in your refrigerator's cooling system. It draws air over the condenser coils, which are located at the back or bottom of the refrigerator. This airflow helps dissipate heat from the refrigerant, allowing it to cool and condense. Proper operation of this fan is essential for efficient cooling and to prevent overheating of the compressor.
பராமரிப்பு
Regular maintenance of the condenser area can prolong the life of your fan motor and improve refrigerator efficiency.
- சுத்தமான கண்டன்சர் சுருள்கள்: Periodically (every 6-12 months), disconnect power to the refrigerator and use a vacuum cleaner with a brush attachment to gently clean dust and debris from the condenser coils and fan blades.
- மின்விசிறி பிளேடை ஆய்வு செய்யவும்: Check the fan blade for any obstructions or damage. Ensure it spins freely without hitting any components.
சரிசெய்தல்
If your refrigerator is experiencing issues after installation, consider the following common troubleshooting steps:
| அறிகுறி | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| Refrigerator not cooling properly | Condenser fan not running or running slowly; dirty condenser coils. | Ensure fan wiring is secure. Clean condenser coils. If fan still doesn't run, motor may be faulty (unlikely for new part). |
| Loud noise from back of refrigerator | Fan blade hitting an obstruction; loose motor mounting; faulty motor bearings. | Disconnect power and check for obstructions around the fan blade. Ensure motor is securely mounted. If noise persists, the motor may be defective. |
| Refrigerator compressor overheating | Condenser fan not providing adequate airflow. | Verify fan is spinning freely and at proper speed. Clean condenser coils. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified technician or the seller for further assistance.
விவரக்குறிப்புகள்
- பிராண்ட்: பொதுவான
- மாதிரி பெயர்: Condenser Fan Motor Assembly
- சேர்க்கப்பட்ட கூறுகள்: Condenser Fan Motor Assembly
- இணக்கமான குளிர்சாதன பெட்டி மாதிரிகள்: Refer to "Product Compatibility" section and product listing for full list.
உத்தரவாதம் மற்றும் ஆதரவு
For information regarding warranty coverage or technical support, please refer to the original product listing on Amazon or contact the seller directly. Keep your purchase receipt as proof of purchase.
