Frigidaire FDB1051RES2 Dishwasher Lower Spray Arm Replacement Part User Manual

அறிமுகம்

This manual provides comprehensive instructions for the safe and effective replacement of the lower spray arm in Frigidaire FDB1051RES2 dishwasher models. Please read all instructions carefully before beginning the installation process to ensure proper function and to prevent damage to your appliance.

பாதுகாப்பு தகவல்

WARNING: Always disconnect power to the dishwasher before attempting any repairs or maintenance. Failure to do so can result in electric shock, injury, or death.

• Ensure the dishwasher is unplugged from the electrical outlet or the circuit breaker is turned off.
• Turn off the water supply to the dishwasher.
• தேவைப்பட்டால், கையுறைகள் போன்ற பொருத்தமான தனிப்பட்ட பாதுகாப்பு உபகரணங்களை அணியுங்கள்.
• ஏதேனும் ஒரு படி குறித்து உங்களுக்கு சந்தேகம் இருந்தால், தகுதிவாய்ந்த உபகரண தொழில்நுட்ப வல்லுநரை அணுகவும்.

இணக்கத்தன்மை

This replacement part is specifically designed for the Frigidaire FDB1051RES2 dishwasher model. Please verify your dishwasher's model number before proceeding with installation to ensure proper fit and function. Appliance parts can appear similar, so careful verification is crucial.

தொகுப்பு உள்ளடக்கங்கள்

உங்கள் தொகுப்பில் பின்வரும் உருப்படி இருக்க வேண்டும்:

• 1 x Lower Spray Arm Replacement Part (Fricpart-019695)

Tools Required (May Vary)

• பிளாட்ஹெட் ஸ்க்ரூடிரைவர்
• இடுக்கி (விரும்பினால், பிடிவாதமான இணைப்புகளுக்கு)
• Towel or sponge (for minor water spills)

நிறுவல் வழிமுறைகள்

Follow these steps carefully to replace the lower spray arm:

1. Step 1: Disconnect Power and Water

   Before starting, ensure the dishwasher is completely disconnected from its power source by unplugging it or turning off the circuit breaker. Also, turn off the water supply valve to the dishwasher.

2. Step 2: Open Dishwasher Door and Remove Lower Rack

   Open the dishwasher door fully. Carefully pull out the lower dish rack and set it aside to gain clear access to the lower spray arm.

3. Step 3: Remove the Old Lower Spray Arm

   The lower spray arm is typically held in place by a central nut or a simple twist-lock mechanism. Locate the center hub of the spray arm. Depending on your specific model, you may need to:

   • Twist and Lift: Gently twist the spray arm counter-clockwise until it unlocks, then lift it straight up.
   • Unscrew Nut: If there's a retaining nut, use a flathead screwdriver or pliers to carefully unscrew it counter-clockwise, then lift the spray arm.

   Remove the old spray arm and inspect the area for any debris or blockages.

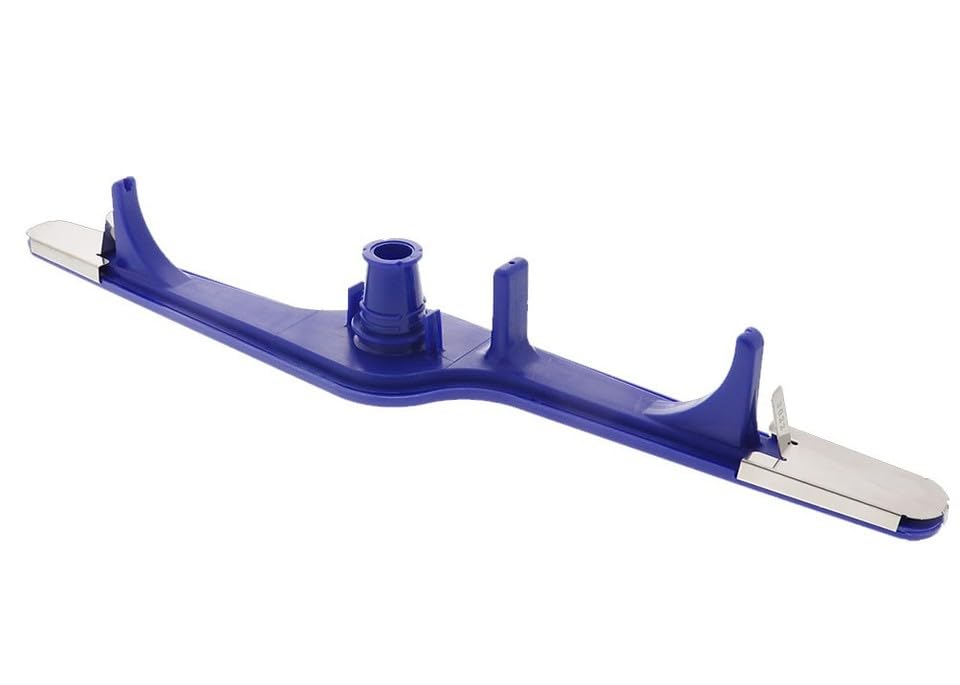

   Image: The replacement lower spray arm. This component is crucial for distributing water during the wash cycle. Ensure it matches the original part for your Frigidaire FDB1051RES2 dishwasher.

4. Step 4: Install the New Lower Spray Arm

   Align the new lower spray arm with the central post in the dishwasher tub. Gently push it down and then:

   • ட்விஸ்ட் டு லாக்: Twist the spray arm clockwise until it clicks securely into place.
   • Tighten Nut: If your model uses a nut, place it back on the post and tighten it clockwise until snug. Do not overtighten.

   Ensure the spray arm spins freely without obstruction.

5. Step 5: Replace Lower Rack and Restore Power/Water

   Carefully slide the lower dish rack back into its position. Restore the water supply and reconnect the dishwasher to its power source (plug it in or turn on the circuit breaker).

6. Step 6: Test the Dishwasher

   Run a short wash cycle to ensure the new spray arm is functioning correctly and there are no leaks. Observe the spray arm's rotation and water distribution.

Operating Your Dishwasher After Replacement

After successfully replacing the lower spray arm, your Frigidaire FDB1051RES2 dishwasher should operate as normal. The spray arm is responsible for distributing water throughout the lower rack during wash cycles. Proper installation ensures effective cleaning performance.

பராமரிப்பு

To ensure the longevity and optimal performance of your new lower spray arm and dishwasher:

• வழக்கமான ஆய்வு: Periodically check the spray arm for any signs of cracks, blockages in the spray holes, or mineral buildup.
• Clean Spray Holes: If spray holes become clogged, use a small pick or toothpick to clear them.
• தடைகளைத் தவிர்க்கவும்: Ensure dishes and utensils in the lower rack do not obstruct the spray arm's rotation.
• Use Dishwasher Cleaner: Run a dishwasher cleaning cycle regularly to prevent mineral and detergent buildup.

சரிசெய்தல்

If you encounter issues after replacing the lower spray arm, consider the following:

• Poor Cleaning Performance (Lower Rack):
  • Check if the spray arm is spinning freely.
  • Inspect spray arm holes for blockages.
  • Ensure the spray arm is securely attached.
  • Verify that dishes are not obstructing the spray arm's rotation.
• நீர் கசிவுகள்:
  • Recheck the installation of the spray arm to ensure it is seated correctly.
  • Ensure the central nut (if applicable) is tightened appropriately.
• அசாதாரண சத்தங்கள்:
  • Confirm the spray arm is not hitting any dishes or the dishwasher tub.
  • Ensure the spray arm is properly seated and not loose.

If problems persist, it may indicate an issue beyond the spray arm, and professional service may be required.

விவரக்குறிப்புகள்

உத்தரவாதம் மற்றும் ஆதரவு

For information regarding warranty coverage or technical support for this replacement part, please refer to the original purchase documentation or contact the seller directly. Keep your proof of purchase for any warranty claims.

For general inquiries about your Frigidaire FDB1051RES2 dishwasher, please consult your appliance's original user manual or the Frigidaire customer support resources.
