SANOTECHNIK® Sauna LUXOR 1 (SB50120) Instruction Manual

1. அறிமுகம்

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your SANOTECHNIK® Sauna LUXOR 1. Please read all instructions carefully before assembly and use. Retain this manual for future reference.

படம் 1.1: வெளிப்புறம் view of the SANOTECHNIK® Sauna LUXOR 1, showcasing its corner design with glass panels and hemlock wood structure.

2. பாதுகாப்பு தகவல்

எச்சரிக்கை: இந்த பாதுகாப்பு வழிமுறைகளைப் பின்பற்றத் தவறினால் தீ, மின்சார அதிர்ச்சி, கடுமையான காயம் அல்லது மரணம் ஏற்படலாம்.

• Consult a physician before using the sauna, especially if you have health conditions such as heart disease, high blood pressure, diabetes, or are pregnant.
• Do not use the sauna under the influence of alcohol, drugs, or medications that may impair judgment or cause drowsiness.
• Limit sauna sessions to 10-20 minutes to avoid overheating. Exit immediately if you feel dizzy, nauseous, or unwell.
• Keep children and pets away from the sauna, especially when in operation.
• Ensure proper ventilation as specified in the installation instructions.
• Do not place flammable materials inside or near the sauna heater.
• The sauna heater and stones become extremely hot. Avoid direct contact to prevent burns.
• Use only water on the sauna stones. Do not pour excessive amounts of water at once.
• Ensure the electrical installation meets local codes and is performed by a qualified electrician.
• Regularly inspect the sauna for any damage or wear. Do not operate if damaged.

3. தொகுப்பு உள்ளடக்கங்கள்

அசெம்பிளியைத் தொடங்குவதற்கு முன் அனைத்து கூறுகளும் உள்ளனவா என்பதைச் சரிபார்க்கவும்:

• Sauna cabin panels (walls, floor, ceiling)
• Tempered safety glass door and fixed glass panels
• Harvia Hiiliosauna heater (3.5 kW)
• சானா கற்கள்
• Integrated LED lighting system
• Wooden benches
• Sauna accessories: bucket, ladle, thermometer, hourglass
• Assembly hardware and fasteners
• அறிவுறுத்தல் கையேடு

Image 3.1: Included sauna accessories: a wooden bucket and ladle, a thermometer, and an hourglass for timing sauna sessions.

4. அமைவு மற்றும் நிறுவல்

Professional installation by a qualified electrician is recommended for the heater's electrical connection.

4.1 தளம் தயாரித்தல்

• Choose a level, stable, and dry location indoors.
• Ensure adequate space around the sauna for assembly and maintenance, and for proper air circulation.
• Verify that the electrical supply meets the requirements for the 3.5 kW Harvia heater.

4.2 சட்டசபை படிகள்

1. அடிப்படை சட்டசபை: Place the floor panel on the prepared site.
2. சுவர் பேனல் நிறுவல்: Erect the wall panels, starting with the corner sections, and secure them according to the provided diagrams.
3. Glass Panel Integration: Carefully install the tempered glass door and fixed glass panels into their designated frames. Ensure seals are properly seated.
4. Ceiling Placement: Position and secure the ceiling panel.
5. ஹீட்டர் நிறுவல்: Mount the Harvia heater in its designated location. Follow the heater's specific installation instructions for electrical connections and stone placement.
6. பெஞ்ச் நிறுவல்: Install the wooden benches securely.
7. LED விளக்குகள்: Connect the integrated LED lighting system.
8. இறுதி சோதனைகள்: Inspect all connections and ensure the sauna is stable and secure.

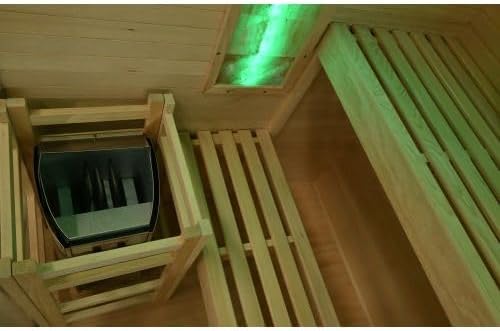

Image 4.1: Detail of the Harvia sauna heater, positioned within its protective wooden frame inside the sauna.

5. இயக்க வழிமுறைகள்

5.1 Pre-heating the Sauna

1. Ensure the sauna door is closed.
2. Turn on the main power switch for the sauna.
3. Activate the Harvia heater using its control panel. Set the desired temperature and heating duration. Refer to the Harvia heater's specific manual for detailed controls.
4. Allow 30-60 minutes for the sauna to reach the desired temperature. The thermometer can be used to monitor the internal temperature.

5.2 Using the Sauna

• Before entering, ensure the temperature is comfortable.
• You may pour small amounts of water onto the hot sauna stones using the bucket and ladle to create steam (löyly). Do not over-pour.
• Use the hourglass to monitor your session duration.
• The integrated LED lighting can be adjusted to your preference.

படம் 5.1: உட்புறம் view of the sauna, showing the wooden benches and the integrated LED lighting emitting a green hue.

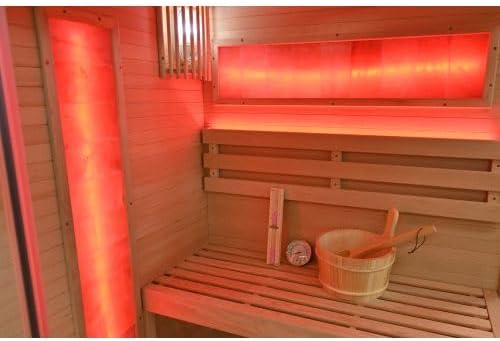

படம் 5.2: உட்புறம் view of the sauna, showing the wooden benches and the integrated LED lighting emitting a red hue.

5.3 Post-Sauna

• Turn off the heater and LED lighting after use.
• Leave the door slightly ajar to allow the sauna to air out and dry.

6. பராமரிப்பு

6.1 சுத்தம் செய்தல்

• மர மேற்பரப்புகள்: மர மேற்பரப்புகளை விளம்பரத்துடன் துடைக்கவும்.amp cloth after each use. For deeper cleaning, use a mild sauna cleaner specifically designed for wood. Do not use harsh chemicals or abrasive cleaners.
• கண்ணாடி மேற்பரப்புகள்: Clean glass panels with a standard glass cleaner.
• ஹீட்டர்: Periodically remove any debris from around the heater. Do not spray water directly onto the heater.

6.2 பொது பராமரிப்பு

• Ensure proper air circulation to prevent mold and mildew.
• Inspect electrical connections and components periodically for signs of wear or damage.
• Replace sauna stones as recommended by the Harvia heater manual, typically every 1-2 years, or if they show signs of crumbling.

7. சரிசெய்தல்

• ஹீட்டர் வேலை செய்யவில்லை:
  • Check if the main power switch is on.
  • சர்க்யூட் பிரேக்கர் ட்ரிப் ஆகவில்லை என்பதைச் சரிபார்க்கவும்.
  • Ensure the heater's control panel is correctly set for temperature and time.
  • Consult the Harvia heater manual for specific troubleshooting steps.
• LED விளக்குகள் செயல்படவில்லை:
  • Check electrical connections to the LED system.
  • Ensure the LED controller is powered on.
• போதாத வெப்பம்:
  • Allow sufficient pre-heating time.
  • Ensure the sauna door is fully closed and sealed.
  • Check the heater's temperature setting.

For issues not resolved by these steps, contact customer support.

8. விவரக்குறிப்புகள்

9. உத்தரவாதம் மற்றும் ஆதரவு

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or inquiries regarding your SANOTECHNIK® Sauna LUXOR 1, please contact the manufacturer or authorized service center.

வாடிக்கையாளர் ஆதரவு: For assistance, please refer to the contact information provided by your seller, Home 36 GmbH, or visit the official Sanotechnik webதளம்.
