MOOG K9820 Suspension Ball Joint Front Lower Instruction Manual

1. தயாரிப்பு முடிந்துவிட்டதுview

The MOOG K9820 Suspension Ball Joint is engineered for reliable performance and ease of installation, designed to meet or exceed original equipment specifications. This component is crucial for maintaining proper steering and suspension function in your vehicle.

முக்கிய அம்சங்கள்:

• உயர்ந்த பொருட்கள்: Constructed with hardened ball studs made of OE equivalent or better materials to withstand higher loads.
• கடுமையான சோதனை: Backed by extensive testing to ensure reliable performance.
• எளிதான நிறுவல்: Designed with problem-solving innovations for a fast, hassle-free installation process.
• உறுதியான கட்டுமானம்: Features a premium forged housing with an increased cross-section, providing up to 52% more material in key areas for enhanced durability.
• Validated Design: Construction and design are validated by MOOG engineers.
• பரந்த பயன்பாடு: Suitable for a wide range of foreign and domestic vehicle applications.
• செயல்திறன் தரநிலைகள்: Engineered to meet or exceed original equipment performance.

2. தயாரிப்பு கூறுகள்

The MOOG K9820 Suspension Ball Joint includes the main ball joint assembly, a castle nut, a cotter pin, and a snap ring for secure installation.

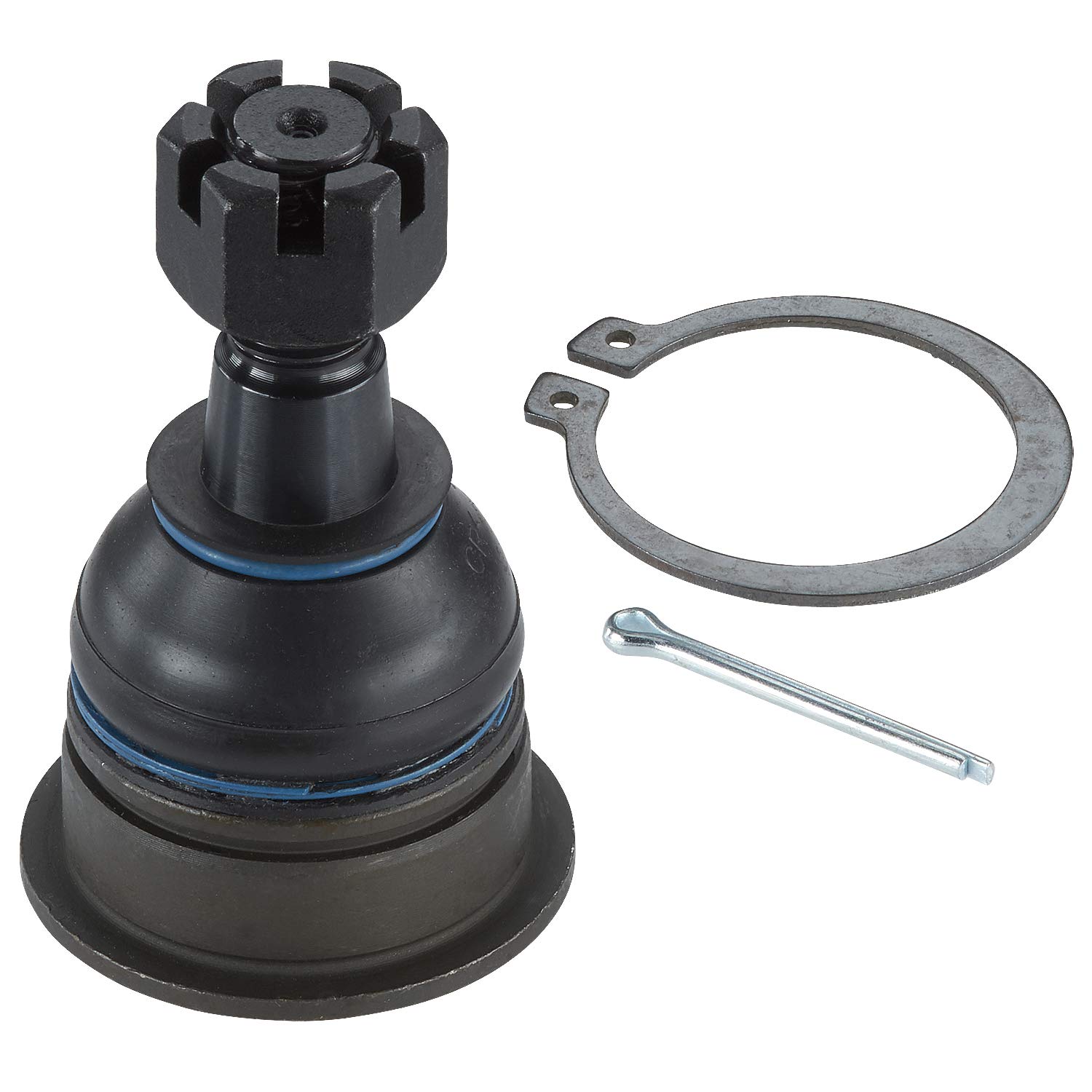

Image: MOOG K9820 Suspension Ball Joint Front Lower, showing the main assembly, castle nut, cotter pin, and snap ring.

3. அமைவு மற்றும் நிறுவல்

Proper preparation is crucial for the correct installation and longevity of the ball joint. Ensure the receiving pocket is clean and free of debris.

தயாரிப்பு படிகள்:

1. Clean the Pocket: Before pressing the new ball joint into place, thoroughly clean the pocket or area where it will be installed. Remove any rust, scale, or other debris. Failure to do so can lead to excessive pressure on the ball joint case and stud, potentially causing "memory steer" and premature wear.
2. Consult Vehicle-Specific Manual: Always refer to your vehicle's service manual for specific torque specifications and detailed installation procedures.

4. இயக்க பரிசீலனைகள்

Once installed, the MOOG K9820 ball joint contributes to the proper functioning of your vehicle's suspension and steering system. It allows for smooth articulation of the suspension components while maintaining wheel alignment.

• Smooth Steering: A properly installed ball joint ensures the steering wheel returns to center after turning, preventing "memory steer."
• Stable Handling: Contributes to stable and predictable vehicle handling.
• Reduced Tire Wear: Helps maintain correct wheel alignment, which is essential for even tire wear.

5 ஆய்வு மற்றும் பராமரிப்பு

Regular inspection of ball joints is vital for vehicle safety and performance. Loose ball joints can lead to alignment issues, affecting handling and tire wear. It is recommended to check ball joints at regular service intervals and during any wheel alignment procedures.

ஆய்வு நடைமுறை:

1. லிஃப்ட் வாகனம்: Use a floor jack to raise one tire at a time, ensuring the suspension is unloaded and the upper control arm is not touching the frame (for load-carrying ball joints). For MacPherson strut suspensions, lift the vehicle off the ground.
2. Check for Vertical Looseness (Load-Carrying): Use a pry bar to check for vertical play between the stud and ball joint housing.
3. Check for Horizontal Looseness (Load-Carrying): Grab the tire at the 3 and 9 o'clock positions and move it in and out.
4. Check for Axial Looseness (MacPherson Strut): Use a pry bar to lift the weight off the unloaded tire and wheel assembly. If using a dial indicator, attach it to measure axial looseness.
5. Check for Radial Looseness (MacPherson Strut): Push in and pull out on the bottom of the tire (6 and 12 o'clock positions).
6. Evaluate Play: While some manufacturers allow for a small amount of play within specifications, even minimal looseness can cause alignment and handling issues, especially when combined with other worn components. Use your best judgment to determine if replacement is necessary.

6. பொதுவான சிக்கல்களைச் சரிசெய்தல்

If you experience any of the following symptoms, your ball joint may require inspection or replacement:

• Clunking or Popping Noises: Often heard when going over bumps or turning.
• Excessive Play in Steering: Loose or sloppy steering feel.
• சீரற்ற டயர் தேய்மானம்: Can indicate alignment issues caused by worn ball joints.
• Vehicle Pulling: The vehicle drifts to one side while driving straight.
• அதிர்வுகள்: Steering wheel or vehicle vibrations, especially at certain speeds.

Always consult a qualified mechanic for diagnosis and repair if you suspect a faulty ball joint.

7. தயாரிப்பு விவரக்குறிப்புகள்

8. உத்தரவாதம் மற்றும் ஆதரவு

For warranty information or technical support regarding your MOOG K9820 Suspension Ball Joint, please refer to the official MOOG webதளத்தில் அல்லது அவர்களின் வாடிக்கையாளர் சேவைத் துறையைத் தொடர்பு கொள்ளவும். உத்தரவாதக் கோரிக்கைகளுக்கு உங்கள் கொள்முதல் ரசீதை வைத்திருங்கள்.

ஆன்லைன் ஆதாரங்கள்: வருகை moogparts.com for additional technical tips and product information.
