1. அறிமுகம்
The Design Engineering CryO2 3" O.D. Cryogenic Air Intake is designed to enhance engine performance by cooling the intake air charge. This system utilizes a patented cryogenic chamber within an aerodynamically designed bulb, which is integrated into a 4-inch segment of air tube. As air flows over the bulb, heat is removed, resulting in a colder, denser air charge for improved combustion efficiency. This product is suitable for turbocharged, supercharged, and normally aspirated applications.
2. பாதுகாப்பு தகவல்
Please read and understand all safety warnings and instructions before installing or operating this product. Failure to do so may result in property damage, personal injury, or death.
- நிறுவலின் போது எப்போதும் பாதுகாப்பு கண்ணாடிகள் மற்றும் கையுறைகள் உட்பட பொருத்தமான தனிப்பட்ட பாதுகாப்பு உபகரணங்களை (PPE) அணியுங்கள்.
- Ensure the vehicle's engine is off and cool before beginning installation.
- Handle cryogenic components with care. Avoid direct skin contact with extremely cold surfaces to prevent frostbite.
- Ensure all connections are secure and leak-free to prevent accidental release of cryogenic agents.
- Do not modify the product in any way. Use only genuine Design Engineering replacement parts.
- குழந்தைகளுக்கு எட்டாத இடத்தில் வைக்கவும்.
3. தொகுப்பு உள்ளடக்கங்கள்
கீழே பட்டியலிடப்பட்டுள்ள அனைத்து கூறுகளும் உங்கள் தொகுப்பில் உள்ளதா என்பதைச் சரிபார்க்கவும்:

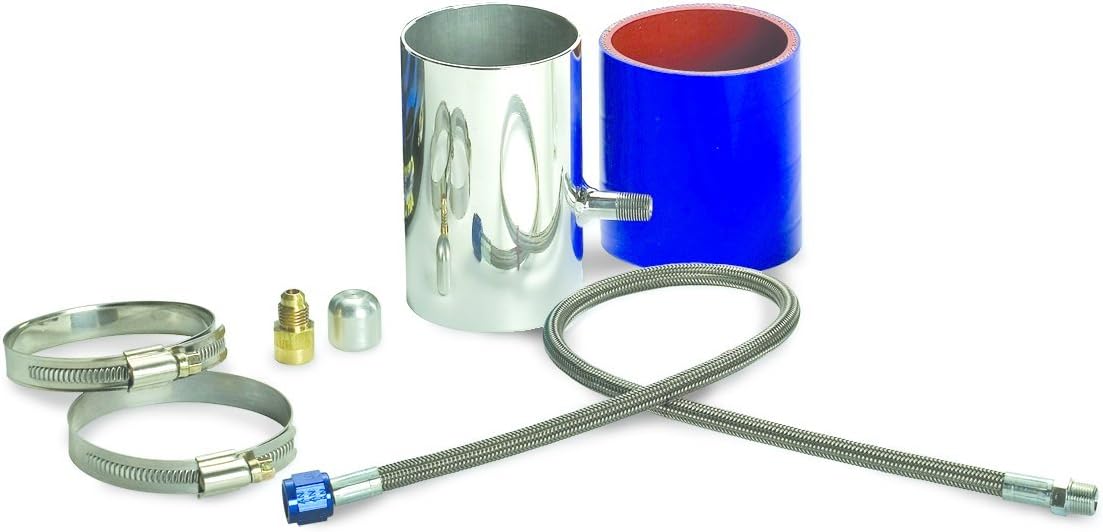

- CryO2 Air Intake Unit (aerodynamically designed bulb with cryogenic chamber in a 4" air tube segment)
- Silicone Connection Sleeve
- ஹோஸ் Clampகள் (2)
- Connection/Vent Hose
- Fittings (if applicable, for connection to cryogenic source)
4. அமைவு மற்றும் நிறுவல்
Follow these steps for proper installation of the CryO2 Air Intake system:
- தயாரிப்பு: Ensure the vehicle's engine is completely cool. Disconnect the negative terminal of the battery. Identify a suitable location in your vehicle's air intake system where the 4-inch segment of the CryO2 Air Intake can be integrated. This typically involves cutting an existing section of the intake tube.
- Cutting the Intake Tube: Carefully measure and mark the section of your vehicle's existing air intake tube where the CryO2 unit will be installed. Cut the tube cleanly and precisely to accommodate the 4-inch length of the CryO2 unit. Ensure there are no burrs or sharp edges.
- Installing the CryO2 Unit: Slide one hose clamp onto each end of the silicone connection sleeve. Place the silicone sleeve onto one end of the cut air intake tube. Insert the CryO2 Air Intake unit into the silicone sleeve, ensuring a snug fit. Then, connect the other end of the silicone sleeve to the remaining section of the vehicle's air intake tube.
- பாதுகாப்பான இணைப்புகள்: குழாய் cl நிலைamps over the silicone sleeve and the air intake tubes/CryO2 unit. Tighten the hose clamps securely using an appropriate tool, ensuring a tight, leak-free seal. Do not overtighten.
- Connecting the Cryogenic Source: Attach the provided connection/vent hose to the fitting on the CryO2 Air Intake unit. Route the hose to your cryogenic source (e.g., a CO2 bottle, sold separately) following the instructions provided with your cryogenic system. Ensure all fittings are tightened to prevent leaks.
- இறுதி சோதனைகள்: Double-check all connections for security and proper fitment. Ensure no hoses are kinked or pinched. Reconnect the negative terminal of the battery.
5. இயக்க வழிமுறைகள்
The CryO2 Air Intake system operates by cooling the incoming air charge. Its function is dependent on the activation of your connected cryogenic system (e.g., CO2 injection). Refer to the operating instructions of your specific cryogenic system for details on activation and usage.
- Ensure your cryogenic source is adequately filled and properly connected.
- Activate the cryogenic system according to its manufacturer's instructions. The CryO2 Air Intake unit will then begin to cool the air passing through it.
- Monitor your vehicle's performance and intake air temperatures (if equipped with a sensor) to observe the effects of the system.
6. பராமரிப்பு
The CryO2 Air Intake unit requires minimal maintenance. Regular inspection is recommended to ensure optimal performance and safety.
- அவ்வப்போது ஆய்வு: Regularly inspect all hose connections and clamps for tightness and signs of wear or damage.
- சுத்தம்: If the exterior of the unit becomes dirty, wipe it with a soft, damp துணி. சிராய்ப்பு கிளீனர்கள் அல்லது கரைப்பான்களைப் பயன்படுத்த வேண்டாம்.
- Cryogenic Source: Ensure your cryogenic supply (e.g., CO2 bottle) is refilled or replaced as needed, following the supplier's guidelines.
7. சரிசெய்தல்
If you encounter issues with your CryO2 Air Intake system, consider the following common problems and solutions:
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| No noticeable temperature drop. | Cryogenic source empty or not activated. Leaks in the cryogenic supply line. | Check cryogenic bottle level and ensure system is activated. Inspect all fittings and hoses for leaks and tighten as necessary. |
| Air intake unit feels warm. | Cryogenic flow insufficient or absent. | Verify cryogenic system operation and supply. |
| தளர்வான இணைப்புகள். | குழாய் clamps or fittings not tightened sufficiently. | Inspect and tighten all hose clampகள் மற்றும் பொருத்துதல்கள். |
If problems persist, contact Design Engineering customer support.
8. விவரக்குறிப்புகள்
- மாதிரி எண்: 080110 (80110 என்றும் குறிப்பிடப்படுகிறது)
- Outer Diameter (O.D.): 3 அங்குலம்
- தயாரிப்பு பரிமாணங்கள்: தோராயமாக 22.86 x 15.24 x 13.97 செமீ (9 x 6 x 5.5 அங்குலம்)
- பொருளின் எடை: தோராயமாக 580 கிராம் (1.28 பவுண்ட்)
- பொருள்: Aerodynamically designed bulb with cryogenic chamber, silicone connection sleeve.
- விண்ணப்பம்: Turbocharged, supercharged, and normally aspirated engines.
- வெப்பநிலை குறைப்பு: Up to 50°F (typical, based on testing)
9. உத்தரவாதம் மற்றும் ஆதரவு
Design Engineering products are manufactured to high standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Design Engineering webஉத்தரவாதக் கோரிக்கைகளுக்கு உங்கள் வாங்கியதற்கான ஆதாரத்தை வைத்திருங்கள்.
For technical support, installation assistance, or to inquire about replacement parts, please contact Design Engineering customer service:
- Webதளம்: www.designengineering.com
- தொலைபேசி: பார்க்கவும் webபிராந்திய தொடர்பு எண்களுக்கான தளம்.
- முகவரி: Design Engineering, Inc., AVON LAKE, OH, 44012 US
