1. அறிமுகம்
The Vixen 2577-06 Balance Weight is an essential accessory designed to provide precise counterbalancing for astronomical telescopes mounted on compatible equatorial mounts. Proper balancing is crucial for smooth tracking, reduced strain on the mount's motors, and improved observational stability. This manual provides detailed instructions on the setup, operation, and maintenance of your Vixen balance weight.
Figure 1: Vixen 2577-06 Balance Weight. This image shows the main product, a white cylindrical weight with a black locking knob on its side, designed for telescope counterbalancing.
2. அமைவு மற்றும் நிறுவல்
The Vixen 2577-06 Balance Weight is designed for use with Vixen AP, SX, SX2, SXD, SXD2, SXP2, GP2, and GPD2 Series equatorial mounts. Follow these steps to properly install the balance weight:
- Identify the Counterweight Shaft: Locate the counterweight shaft on your Vixen equatorial mount. This shaft is typically threaded or has a smooth rod designed to hold balance weights.
- Slide the Weight On: Loosen the black locking knob on the side of the Vixen 2577-06 balance weight. Carefully slide the weight onto the counterweight shaft.
- Position for Initial Balance: For initial setup, position the weight roughly in the middle of the shaft. Do not tighten the knob yet.
- தொலைநோக்கியை இணைக்கவும்: Securely attach your telescope tube to the mount's dovetail plate.
- Rough Balance: With the telescope attached, gently move the telescope and mount assembly to determine the approximate balance point. The weight should be adjusted along the shaft until the telescope remains relatively stable without being held.
- Secure the Weight: Once a rough balance is achieved, tighten the black locking knob on the balance weight to secure it firmly in place on the shaft. Ensure it is tight enough to prevent slipping during observation.

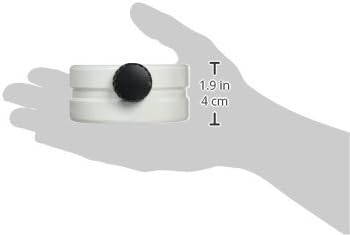

Figure 2: Size comparison of the Vixen 2577-06 Balance Weight. This image illustrates the compact dimensions of the weight when held in a hand, with measurements indicating a height of 1.9 inches (4 cm).
3. Operation and Fine Balancing
The primary function of the balance weight is to counterbalance the weight of your telescope and any attached accessories (e.g., cameras, finderscopes) on the equatorial mount. This ensures that the mount's motors operate efficiently and accurately, preventing excessive strain and improving tracking precision.
- Declination Axis Balance: Unlock the declination (DEC) clutch on your mount. The telescope should remain stationary when pointed at various angles. If it tends to swing up or down, adjust the telescope's position in its rings or dovetail clamp until it is balanced.
- Right Ascension Axis Balance: Unlock the right ascension (RA) clutch. The telescope and counterweight assembly should remain stationary. If the telescope swings down, the counterweight is too light or too close to the mount. If the counterweight swings down, the counterweight is too heavy or too far from the mount. Adjust the position of the Vixen 2577-06 balance weight along the counterweight shaft until perfect balance is achieved. You may need to add additional weights if one is insufficient.
- Importance of Balance: A perfectly balanced system reduces wear on the mount's gears and motors, minimizes vibrations, and allows for smoother, more accurate tracking of celestial objects, which is especially critical for astrophotography.
4. பராமரிப்பு மற்றும் பராமரிப்பு
The Vixen 2577-06 Balance Weight is a durable accessory designed for long-term use. To ensure its longevity and maintain its appearance:
- சுத்தம்: Wipe the weight with a soft, dry, lint-free cloth to remove dust and fingerprints. For stubborn marks, a slightly damp துணியைப் பயன்படுத்தலாம், அதைத் தொடர்ந்து உடனடியாக உலர்த்தலாம்.
- இரசாயனங்களை தவிர்க்கவும்: சிராய்ப்பு கிளீனர்கள், கரைப்பான்கள் அல்லது கடுமையான இரசாயனங்கள் பயன்படுத்த வேண்டாம், ஏனெனில் இவை பூச்சுக்கு சேதம் விளைவிக்கும்.
- சேமிப்பு: When not in use, store the balance weight in a clean, dry environment, preferably in its original packaging or a protective bag to prevent scratches.
- ஆய்வு: Periodically inspect the locking knob and the weight for any signs of wear or damage. Ensure the knob turns smoothly and secures the weight firmly.
5. சரிசெய்தல்
While the Vixen 2577-06 Balance Weight is a simple mechanical component, here are some common issues and their solutions:
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| Weight does not slide onto the shaft. | Locking knob is too tight; incompatible shaft diameter. | Ensure the locking knob is fully loosened. Verify your mount is one of the compatible Vixen AP, SX, SX2, SXD, SXD2, SXP2, GP2, GPD2 Series. |
| Telescope system remains unbalanced. | Weight is not positioned correctly; insufficient weight for the telescope setup. | Adjust the weight's position along the shaft. If still unbalanced, you may need an additional Vixen balance weight or a heavier weight. |
| Weight slips on the shaft. | பூட்டுதல் குமிழ் போதுமான அளவு இறுக்கப்படவில்லை. | Ensure the black locking knob is securely tightened. Do not overtighten, but ensure it is firm. |
6. விவரக்குறிப்புகள்
Key specifications for the Vixen 2577-06 Balance Weight:
| மாதிரி எண் | 2577-06 |
| எடை | 1.9 கிலோ (4.2 பவுண்ட்) |
| நிறம் | வெள்ளை |
| இணக்கமான ஏற்றங்கள் | Vixen AP, SX, SX2, SXD, SXD2, SXP2, GP2, GPD2 Series |
| பொருளின் பரிமாணங்கள் (L x W x H) | 5.28 x 4.96 x 2.09 அங்குலங்கள் (தொகுப்பு பரிமாணங்கள்) |
| உற்பத்தியாளர் | விக்சன் |
7. உத்தரவாதம் மற்றும் ஆதரவு
For information regarding warranty coverage, technical support, or service for your Vixen 2577-06 Balance Weight, please refer to the official Vixen website or contact your authorized Vixen dealer. Keep your purchase receipt as proof of purchase for any warranty claims.
Official Vixen Webதளம்: www.vixenoptics.com (Please note: This is a generic placeholder URL as specific support links are not provided in the product data.)
