AKG Pro Audio C414 XLII கண்டன்சர் மைக்ரோஃபோன் அறிவுறுத்தல் கையேடு

அறிமுகம்

The AKG Pro C414 XLII is a professional large-diaphragm condenser microphone designed for versatile audio capture. It features multiple polar patterns, attenuation levels, and bass-cut filters to adapt to various recording environments and sound sources. This manual provides essential information for the proper setup, operation, and care of your C414 XLII microphone.

பெட்டியில் என்ன இருக்கிறது

Your AKG C414 XLII package includes the following components:

• 1 x C414 XLII Microphone
• 1 x H85 Universal Shock Mount
• 1 x PF80 Pop Filter
• 1 x W414 Windscreen
• 1 x Metal Carrying Case

Figure 1: Included components of the AKG C414 XLII microphone package.

அமைவு

1. ஷாக் மவுண்ட்டை இணைக்கவும்: Secure the C414 XLII microphone into the H85 Universal Shock Mount. The shock mount helps to isolate the microphone from vibrations and handling noise.
2. Mount to Stand: Attach the shock mount assembly to a microphone stand.
3. XLR கேபிளை இணைக்கவும்: Connect a standard XLR cable (not included) to the microphone's XLR connector at the base. Ensure a secure connection.
4. Connect to Audio Interface: Connect the other end of the XLR cable to an audio interface or mixer that provides +48V phantom power. The C414 XLII requires phantom power to operate.
5. Attach Pop Filter/Windscreen: For vocal recordings, attach the PF80 Pop Filter to the microphone stand, positioning it between the vocalist and the microphone to reduce plosive sounds. For outdoor use or to minimize wind noise, use the W414 Windscreen.

இயக்க வழிமுறைகள்

The AKG C414 XLII offers several adjustable settings to optimize performance for different recording scenarios.

1. Polar Pattern Selection

The microphone features nine selectable polar patterns, allowing you to choose the directionality of sound capture. Use the switches on the front of the microphone to cycle through the patterns:

• கார்டியோயிட்: Picks up sound primarily from the front, rejecting sound from the sides and rear. Ideal for vocals and close-miking instruments.
• Figure of Eight: Picks up sound equally from the front and rear, rejecting sound from the sides. Useful for duets or capturing room ambiance.
• Hypercardioid: A tighter version of cardioid, offering more side rejection and a small lobe of sensitivity at the rear.
• சர்வ திசை: Picks up sound equally from all directions. Suitable for capturing room sound or multiple sources.
• Wide Cardioid: A broader cardioid pattern, offering a wider pickup angle than standard cardioid.
• Additional intermediate patterns are also available.

Figure 2: Front of the C414 XLII with polar pattern selection switches.

2. Attenuation Levels (Pad)

The C414 XLII features three attenuation levels (-6 dB, -12 dB, -18 dB) to prevent overload when recording very loud sound sources. Use the switch on the back of the microphone to select the appropriate pad setting.

3. Bass-Cut Filters

Three different switchable bass-cut filters (40 Hz, 80 Hz, 160 Hz) are available to minimize unwanted low-frequency noise such as wind noise, stage vibration, or proximity effect. Use the switch on the back of the microphone to select the desired filter.

Figure 3: Back of the C414 XLII with attenuation and bass-cut filter switches.

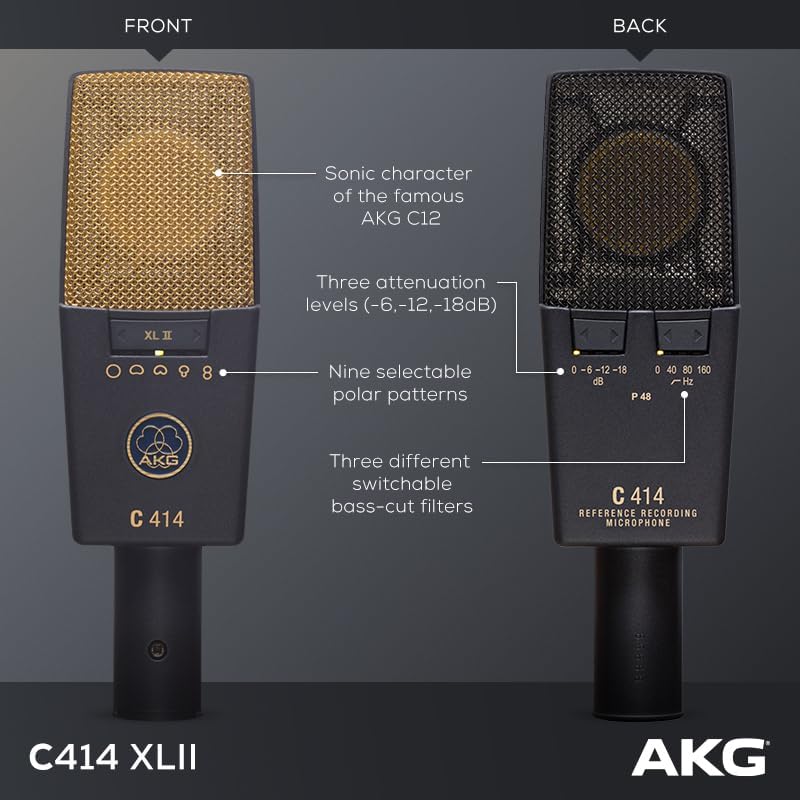

Figure 4: Detailed diagram of C414 XLII controls including polar patterns, attenuation, and bass-cut filters.

பராமரிப்பு

• Store the microphone in its metal carrying case when not in use to protect it from dust and physical damage.
• மைக்ரோஃபோனை அதிக வெப்பநிலை அல்லது அதிக ஈரப்பதத்திற்கு வெளிப்படுத்துவதைத் தவிர்க்கவும்.
• Clean the microphone's exterior with a soft, dry cloth. Do not use liquid cleaners or solvents.
• Ensure the microphone is disconnected from phantom power before connecting or disconnecting cables.

சரிசெய்தல்

If you experience issues with your AKG C414 XLII microphone, consider the following:

• ஒலி இல்லை: Ensure +48V phantom power is enabled on your audio interface/mixer. Check all cable connections for security.
• சிதைந்த ஒலி: If the sound is distorted, activate an attenuation pad (-6 dB, -12 dB, or -18 dB) on the microphone to reduce the input level, especially with loud sound sources.
• Excessive Low-End Noise: Engage one of the bass-cut filters (40 Hz, 80 Hz, or 160 Hz) to reduce unwanted low-frequency rumble or proximity effect.
• இடைப்பட்ட சமிக்ஞை: Check XLR cable for damage or loose connections. Try a different cable if possible.

விவரக்குறிப்புகள்

உத்தரவாதம் மற்றும் ஆதரவு

The product warranty for AKG products applies only when the purchase is made from AKG Authorized North American Dealers. For technical support or further assistance, please refer to the official AKG webதளத்தில் அல்லது உங்கள் அங்கீகரிக்கப்பட்ட டீலரைத் தொடர்பு கொள்ளவும்.
