அறிமுகம்
This manual provides essential information for the proper installation, function, and maintenance of the Evergreen HS5018 Cylinder Head Gasket Set. This product is designed for specific automotive applications to ensure reliable engine sealing. Adherence to these instructions is crucial for optimal performance and longevity of the component.
என்ன சேர்க்கப்பட்டுள்ளது
The Evergreen HS5018 Cylinder Head Gasket Set typically includes all necessary gaskets and seals required for a complete cylinder head replacement or engine rebuild. Specific components may vary by application, but generally include:
- Cylinder Head Gaskets (MLS or Graphite, depending on application)
- Intake Manifold Gaskets
- Exhaust Manifold Gaskets
- Valve Cover Gaskets
- Valve Stem Seals (Viton)
- Other auxiliary gaskets and O-rings as required for the specific engine application.

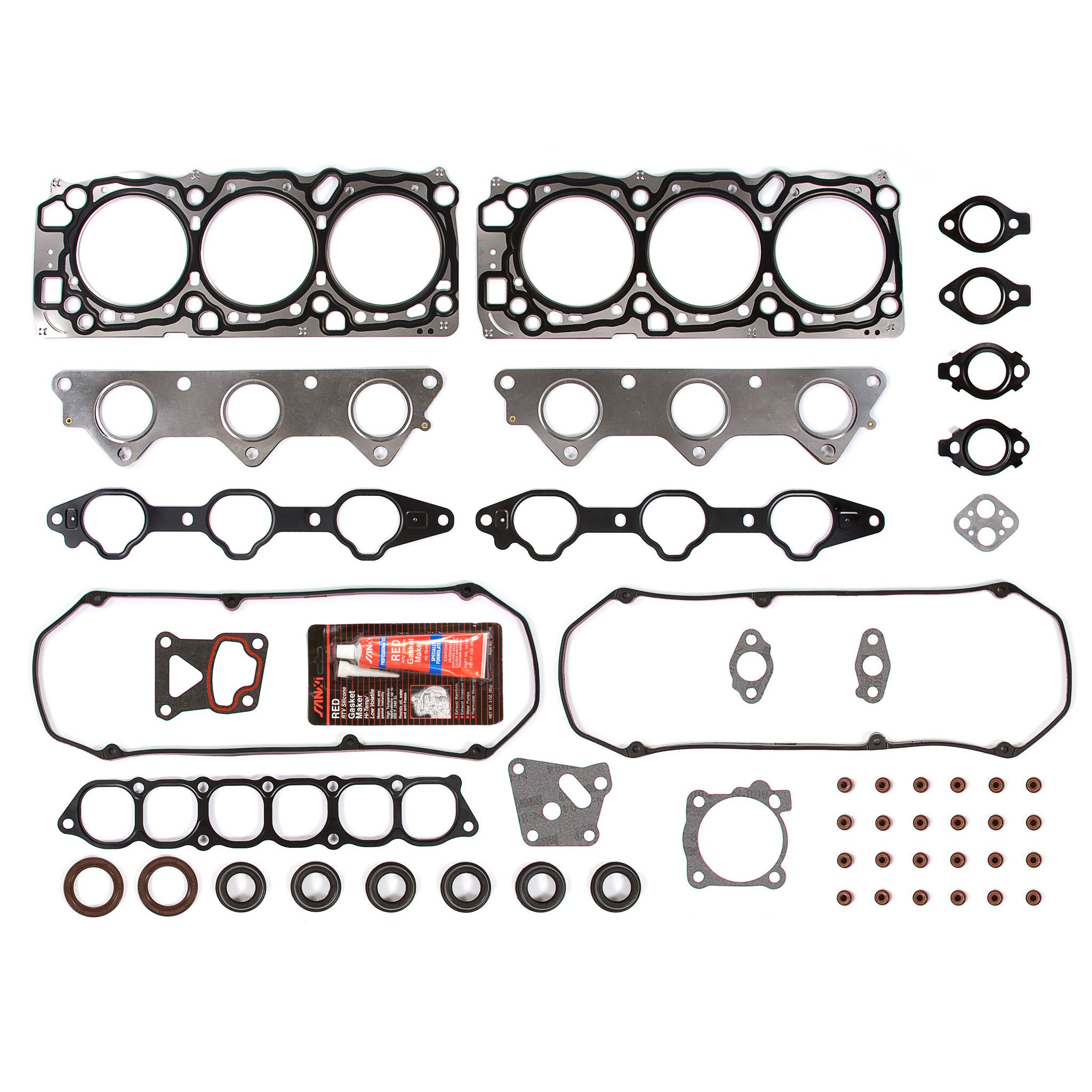

படம் 1: Example of a typical Evergreen HS5018 Cylinder Head Gasket Set. This image displays various gaskets and seals included in the kit, such as head gaskets, manifold gaskets, and valve stem seals, essential for engine assembly.
அமைவு மற்றும் நிறுவல்
Installation of a cylinder head gasket set is a complex procedure that requires specialized tools, technical knowledge, and adherence to manufacturer specifications. It is highly recommended that installation be performed by a certified automotive technician. If you are performing a "do-it-yourself" installation, ensure you have access to the vehicle's specific service manual for torque specifications and procedures.
பொது நிறுவல் வழிகாட்டுதல்கள்:
- தயாரிப்பு: Ensure the engine is cool and disconnected from the battery. Drain coolant and oil.
- பிரித்தல்: Carefully remove all components obstructing access to the cylinder heads, including intake/exhaust manifolds, valve covers, timing components, and cylinder head bolts.
- மேற்பரப்பு சுத்தம்: Thoroughly clean all mating surfaces on the engine block and cylinder heads. Remove all old gasket material, carbon deposits, and debris. Ensure surfaces are perfectly flat and free of scratches or imperfections.
- ஆய்வு: Inspect cylinder heads for warpage, cracks, or damage. Inspect cylinder block deck for flatness.
- கேஸ்கெட் இடம்: Install new gaskets according to the vehicle's service manual. Ensure correct orientation and alignment. Evergreen gaskets are designed for precise O.E. fitment.
- Cylinder Head Installation: Carefully place cylinder heads onto the block. Install new cylinder head bolts (if required by manufacturer) and tighten them in the specified sequence and torque stages as per the vehicle's service manual.
- மறுசீரமைப்பு: Reinstall all removed components, ensuring all new gaskets and seals from the set are used where appropriate.
- திரவ மறு நிரப்பல்: Refill engine with appropriate coolant and oil.
- ஆரம்ப தொடக்கம்: Follow vehicle manufacturer's guidelines for initial engine start-up after head gasket replacement, including bleeding the cooling system.
முக்கியமானது: Always refer to your vehicle's specific service manual for detailed, step-by-step instructions, torque specifications, and any special tools required for your engine model. Failure to follow proper procedures can lead to engine damage.
செயல்பாடு மற்றும் செயல்பாடு
The Evergreen HS5018 Cylinder Head Gasket Set is critical for maintaining the integrity of your engine's combustion chambers and fluid passages. Once properly installed, these gaskets perform several vital functions:
- Sealing Combustion: The head gasket creates a tight seal between the cylinder head and engine block, preventing combustion gases from escaping and maintaining compression.
- Preventing Fluid Leaks: It seals coolant and oil passages, preventing intermixing of fluids and external leaks.
- வெப்ப பரிமாற்றம்: Facilitates efficient heat transfer from the cylinder head to the engine block and cooling system.
- ஆயுள்: Evergreen gaskets are manufactured with high-quality materials like non-asbestos compounds, silicone rubber, Viton valve stem seals, and MLS (Multi-Layer Steel) head gaskets to ensure superior sealing and long-term durability under varying engine conditions.
Proper function relies on correct installation and the use of the appropriate gasket type for your engine. Evergreen's application-specific design ensures correct fitment and reliable sealing performance.
பராமரிப்பு
While the head gasket itself is not a routine maintenance item, its longevity and performance are directly affected by overall engine maintenance. To ensure the continued integrity of your Evergreen HS5018 Cylinder Head Gasket Set and your engine:
- Cooling System Health: Regularly check and maintain your engine's cooling system. Ensure proper coolant levels, use the correct type of coolant, and inspect hoses, radiator, and thermostat for proper function. Overheating is a primary cause of head gasket failure.
- எண்ணெய் மாற்றங்கள்: Adhere to the manufacturer's recommended oil change intervals and use the specified engine oil. Clean oil helps prevent sludge buildup that can affect gasket materials.
- திரவ சோதனைகள்: Periodically check for any signs of external oil or coolant leaks around the cylinder head area.
- அதிக வெப்பத்தைத் தவிர்க்கவும்: Address any engine overheating issues immediately. Continued operation with an overheating engine can severely damage head gaskets.
சரிசெய்தல்
If you experience symptoms that suggest a head gasket issue after installation, consider the following common problems and potential causes. Professional diagnosis is always recommended.
| அறிகுறி | சாத்தியமான காரணம் |
|---|---|
| White smoke from exhaust | Coolant burning in combustion chamber (internal leak) |
| Blue smoke from exhaust | Oil burning in combustion chamber (valve stem seal or other oil leak) |
| என்ஜின் அதிக வெப்பம் | Coolant loss, combustion gases entering cooling system, or improper cooling system bleed |
| Loss of engine power/misfires | Loss of compression due to gasket failure |
| Coolant in engine oil (milky oil) | Internal coolant leak into oil passages |
| Oil in coolant | Internal oil leak into coolant passages |
| External oil or coolant leaks | Improper gasket seating, damaged gasket, or incorrect torque |
If any of these symptoms occur, it is crucial to have the engine inspected by a qualified mechanic to prevent further damage.
விவரக்குறிப்புகள்
The Evergreen HS5018 Cylinder Head Gasket Set is engineered to meet or exceed OEM specifications for fitment and performance.
- மாதிரி: HS5018
- உற்பத்தியாளர்: எவர்கிரீன்
- பொருட்கள்: Non-asbestos compounds, silicone rubber, Viton valve stem seals, graphite or Multi-Layer Steel (MLS) head gaskets.
- வடிவமைப்பு: Application-specific for precise O.E. fitment.
- தர தரநிலைகள்: Manufactured to meet or exceed QS9000, ISO9001, and ISO9002 quality management standards.
- பொருளின் எடை: தோராயமாக 3.34 பவுண்டுகள்
- தயாரிப்பு பரிமாணங்கள்: தோராயமாக 23 x 12 x 2 அங்குலம்
Note: Specific material composition and dimensions may vary slightly based on the exact engine application the HS5018 is designed for.
உத்தரவாத தகவல்
Specific warranty details for the Evergreen HS5018 Cylinder Head Gasket Set are typically provided at the point of purchase or can be obtained directly from the manufacturer or authorized distributor. Please retain your proof of purchase for any warranty claims.
வாடிக்கையாளர் ஆதரவு
For technical assistance, installation questions, or warranty inquiries regarding your Evergreen HS5018 Cylinder Head Gasket Set, please contact Evergreen customer support through their official website or the retailer from whom the product was purchased. Always provide your product model number (HS5018) and proof of purchase when seeking support.
