XtremepowerUS 4500GPH 19-inch Sand Filter with 1.5HP Above Ground Swimming Pool Pump System

அறிமுகம்

This manual provides essential information for the safe and efficient operation of your XtremepowerUS 4500GPH 19-inch Sand Filter with 1.5HP Above Ground Swimming Pool Pump System. Please read all instructions carefully before installation and use.

முக்கிய அம்சங்கள்:

• Sand Filter System: Pump and filter are engineered for optimal flow rates, promoting clean water quality.
• குறைந்த இரைச்சல் வடிவமைப்பு: Optimized for quiet operation, enhancing comfort and energy efficiency.
• நம்பகமான செயல்திறன்: Maintains sand height for maximum filtration surface, consistent performance, and efficient back-washing.
• 5-Way Multi-Port Filter: Provides ease of use and quick back-washing. (Note: These pumps are capacitor start and not for use/sale in California).
• வடிகட்டி கூடை: Features a large pump strainer basket with an easy-open, quick-lock, transparent pump lid for reduced maintenance.

பாதுகாப்பு தகவல்

Always follow basic safety precautions to reduce the risk of fire, electric shock, and injury to persons, including the following:

• இந்த தயாரிப்பைப் பயன்படுத்துவதற்கு முன் அனைத்து வழிமுறைகளையும் படிக்கவும்.
• குழந்தைகளை இந்த தயாரிப்பை இயக்க அனுமதிக்காதீர்கள்.
• மின்வழங்கல் தொகுதியுடன் பொருந்துகிறது என்பதை உறுதிப்படுத்தவும்tagஇ தயாரிப்பு லேபிளில் குறிப்பிடப்பட்டுள்ளது.
• Always disconnect power before servicing or performing maintenance.
• Do not operate the pump if the suction or discharge lines are closed.
• மின் இணைப்புகளை வறண்டு, தண்ணீரிலிருந்து விலக்கி வைக்கவும்.
• Consult a qualified electrician for any electrical installations.

தொகுப்பு உள்ளடக்கங்கள்

Please ensure all components are present and undamaged before beginning assembly.

• Sand Filter Tank (19-inch)
• 1.5HP Swimming Pool Pump
• 5-வழி பல-துறைமுக வால்வு
• வடிகட்டி அடிப்படை
• அழுத்தம் அளவீடு
• Hose Adapters and Clamps
• Drain Nozzle and Cap
• Internal Filter Assembly (pipe with laterals)
• அறிவுறுத்தல் கையேடு

Image: All components of the XtremepowerUS Sand Filter and Pump System laid out on a wooden deck.

சட்டசபை வழிமுறைகள்

1. வடிகட்டி சட்டசபை

1. Install Drain Nozzle: Place the O-ring onto the long side of the filter drain nozzle. Apply plumber's tape to the threads. Carefully route the nozzle from inside the filter tank through the bottom drain hole. Secure it in place by screwing on the nut from the outside. Insert an O-ring into the drain hole nozzle cap and screw it onto the nozzle.
2. Insert Internal Filter Assembly: Place the internal filter assembly (pipe with laterals) inside the filter tank. Position the funnel on top of the assembly, ensuring it is centered and correctly inserted.

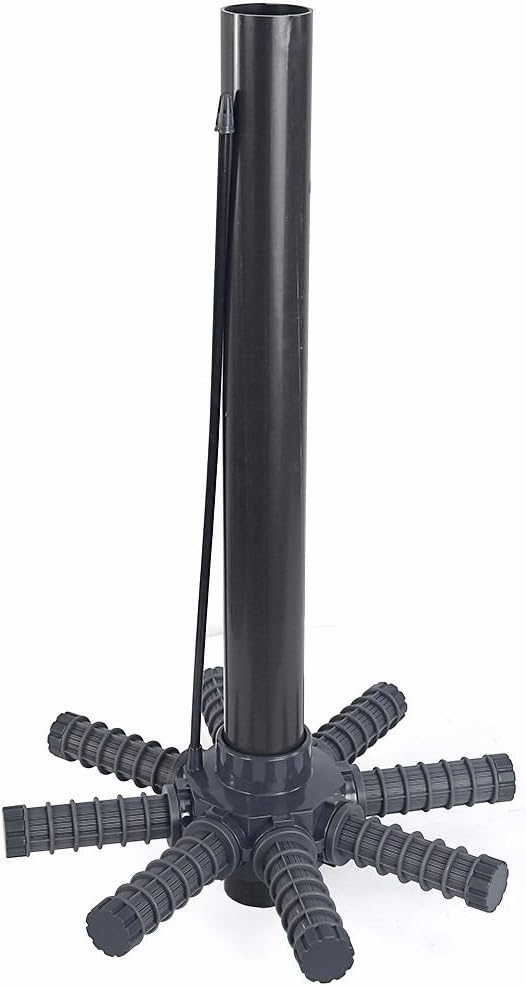

Image: Close-up of the internal filter assembly (pipe with laterals) for the sand filter tank.

3. Fill with Filter Media: Fill the filter tank with either filter balls or sand, following the recommended guidelines for your specific media type. Remove the funnel after filling.
4. Attach Multi-Port Valve: Place the O-ring onto the multi-port valve. Position the valve on the upper part of the filter tank, ensuring the top of the internal filter assembly is properly inserted into the bottom of the valve. Ensure the valve's pump opening aligns with the pump mounting base and the waste opening is oriented away from the pump mounting base. Secure the valve in place with the locking rings, placing the square nut on one side of each ring and tightening.

Image: Close-up of the 5-way multi-port valve with an integrated pressure gauge.
5. அழுத்த அளவை நிறுவவும்: Remove the pressure gauge covering screw from the valve. Apply plumber's tape to the threads of the pressure gauge and screw it onto the valve.


படம்: விரிவானது view of the pressure gauge, showing PSI and bar readings.

2. பம்ப் நிறுவல்

1. Prepare Filter Base: Remove the filter from the filter and pump base. Flip the base over and press the nuts into the four designated nut spaces for securing the pump.
2. Mount Pump: Place the pump on top of the base, aligning it with all four screw holes. Hand-tighten the screws lightly to prevent the nuts from being pushed out. Use a Phillips screwdriver to securely tighten the screws.

Image: Close-up of the pump with its clear strainer lid, showing the internal basket.
3. Attach Hose Adapters to Pump: Place O-rings onto the pump's hose adapters and seal the threads with plumber's tape. Screw all hose adapters onto the pump.


Image: The pump's strainer basket removed, showing the fine mesh for debris collection.

3. Hose Installation

1. Connect Pump to Filter Valve: Place the filter back onto the filter base. Attach hose clamps to the valve hose adapter marked "PUMP". Connect a hose between this adapter and the pump outlet. Tighten the hose clamps with a flathead screwdriver or ratchet and socket.
2. Connect Filter Valve to Pool Return: ஒரு குழாய் cl வைக்கவும்amp on the valve hose adapter marked "POOL". Connect the pool return line to this adapter. Tighten the hose clamp.
3. Connect Pump Inlet to Pool Suction: ஒரு குழாய் cl வைக்கவும்amp on the pump inlet hose adapter. Connect the pool suction line to the pump inlet. Tighten the hose clamp.

Image: The XtremepowerUS Sand Filter and Pump System fully assembled and connected to an above ground pool, ready for operation.

இயக்க வழிமுறைகள்

Once the system is fully assembled and connected, ensure all connections are secure and leak-free. Connect the pump to a power source to begin operation.

Multi-Port Valve Functions:

The multi-port valve allows for various operational modes. Always turn off the pump before changing valve positions.

• வடிகட்டி: This is the standard operating mode for daily pool water filtration. Water is pumped from the pool, through the filter media, and returned to the pool.
• பேக்வாஷ்: Used to clean the filter media. Water flows in reverse through the filter, flushing trapped debris out through the waste port.
• துவைக்க: Used after backwashing to settle the filter media and flush any remaining debris from the valve before returning to FILTER mode.
• கழிவு: Bypasses the filter and sends water directly out the waste port. Useful for quickly lowering the pool water level or vacuuming heavy debris directly to waste.
• மறு சுழற்சி: வடிகட்டியைத் தவிர்த்து, தண்ணீரை நேரடியாக குளத்திற்குச் செலுத்துகிறது. வடிகட்டாமல் ரசாயனங்களைக் கலப்பதற்குப் பயனுள்ளதாக இருக்கும்.
• மூடப்பட்டது: Shuts off all flow to the filter and pump. Use only when the pump is off and for servicing the pump or filter.
• குளிர்காலம்: Position for winter storage, allowing water to drain quickly from the filter's drain hole to prevent freezing.

பராமரிப்பு

வழக்கமான சுத்தம்:

• பேக்வாஷ்: When the pressure gauge reading is 8-10 PSI above the clean filter pressure, it's time to backwash. Turn off the pump, set the valve to BACKWASH, turn on the pump, and run until the water from the waste port runs clear (typically 1-2 minutes).
• துவைக்க: After backwashing, turn off the pump, set the valve to RINSE, turn on the pump, and run for 30-60 seconds to settle the sand. Turn off the pump, then set the valve back to FILTER.
• வடிகட்டி கூடை: Regularly check and clean the pump's strainer basket to prevent debris buildup and maintain optimal flow.

குளிர்காலமயமாக்கல்:

To prepare the system for winter storage and prevent damage from freezing:

1. Cap all above-ground pool lines.
2. Open the filter drain hole and set the multi-port valve to the WINTER position to allow water to drain from the filter.
3. Unscrew the drain screw at the bottom of the pump to drain water from the pump.
4. Disconnect all hoses from the filter and pump.
5. Clean out the filter media from the filter tank if necessary, or follow manufacturer guidelines for your specific media.
6. Store the pump and filter in a dry, frost-free location.

சரிசெய்தல்

விவரக்குறிப்புகள்

• பிராண்ட்: எக்ஸ்ட்ரீம்பவர்யுஎஸ்
• மாதிரி எண்: 75032
• வடிகட்டி விட்டம்: 19 அங்குலம்
• Pump Horsepower: 1.5 ஹெச்பி
• அதிகபட்ச ஓட்ட விகிதம்: நிமிடத்திற்கு 75 கேலன்கள் (4500 GPH)
• தொகுதிtage: 115 வோல்ட்
• சக்தி ஆதாரம்: கம்பியூட்டப்பட்ட மின்சாரம்
• பொருளின் எடை: 53 பவுண்டுகள்
• தயாரிப்பு பரிமாணங்கள்: 21"லி x 25"அங்குலம் x 29"அங்குலம்
• பொருள்: Metal, PE
• உடை: தரையில் மேலே
• UPC: 609456121798

உத்தரவாதம் மற்றும் ஆதரவு

For warranty information, technical support, or replacement parts, please refer to the contact details provided with your purchase documentation or visit the official XtremepowerUS webஎந்தவொரு உத்தரவாதக் கோரிக்கைகளுக்கும் உங்கள் வாங்கியதற்கான ஆதாரத்தை வைத்திருங்கள்.
