1. அறிமுகம் மற்றும் முடிந்துவிட்டதுview
The TrickleStar TS1104 Advanced PowerStrip is an energy-saving surge protector designed to reduce standby power waste and protect your electronic devices. It features intelligent current-sensing circuitry that automatically manages power to peripheral devices based on the status of a control device, such as a TV or computer.
This power strip helps save energy and money by eliminating phantom load, which is the power consumed by electronics when they are turned off but still plugged in. By automatically cutting power to idle peripherals, the TS1104 ensures efficient energy use in both home entertainment and office environments.
2 முக்கிய அம்சங்கள்
- 7 விற்பனை நிலையங்கள்: Includes two "Always On" outlets, one "Control" outlet, and four "Switched" outlets.
- மேம்பட்ட சர்ஜ் பாதுகாப்பு: 1080 Joules of surge protection with Ceramic-encased, Metal Oxide Varistors (MOV) for enhanced safety and fire resistance. Listed to UL 1449 and UL 1363 standards.
- ஆற்றல் சேமிப்பு: Automatically eliminates standby power consumed by PC and TV peripherals when the control device is off or in standby.
- Selectable Switching Threshold: Adjustable sensitivity settings (10W/22W/42W) to optimize power management for various control devices.
- LED நிலைக்கான அறிகுறி: Visual indicators for Ground, Surge Status, and Switched Outlets provide immediate operational feedback.
- சத்தம் வடிகட்டுதல்: Features 40dB noise filtering to ensure clean power delivery to connected devices.
- ஒருங்கிணைந்த சுற்று பிரேக்கர்: Provides overload protection.
- Child Protection Covers: Safety covers on outlets.
- Angled Space Saver Plug: Designed for convenience.
- நீண்ட மின் கம்பி: Equipped with a 12 ft power cord for flexible placement.
3. அமைவு வழிமுறைகள்
Follow these steps to set up your TrickleStar TS1104 Advanced PowerStrip:
- இடம்: Position the power strip near your electronic devices, ensuring the 12 ft power cord can reach a grounded wall outlet.
- Plug in Control Device: Connect your primary device (e.g., TV, computer, AV receiver) into the designated "Control" outlet. This device will dictate the power status of the "Switched" outlets.
- Plug in Switched Devices: Connect peripheral devices (e.g., DVD player, game console, printer, scanner, speakers) into the "Switched" outlets. These outlets will receive power only when the control device is active.
- Plug in Always On Devices: For devices that require continuous power (e.g., cable box, modem, router, DVR), use the "Always On" outlets. These outlets provide constant power regardless of the control device's status.
- Adjust Switching Threshold: On the side of the power strip, locate the selectable switching threshold switch. Adjust this setting (Low, Medium, High) based on the standby power consumption of your control device.
- குறைந்த: For control devices with very low standby power consumption.
- நடுத்தர: For control devices with moderate standby power consumption.
- உயர்: For control devices with higher standby power consumption (often recommended for TVs).
Note: If switched devices turn off unexpectedly or do not turn on reliably, adjust the threshold setting. Experimentation may be required to find the optimal setting for your specific control device.
- வால் அவுட்லெட்டில் செருகவும்: Finally, plug the TrickleStar power strip's cord into a properly grounded 120VAC wall outlet.

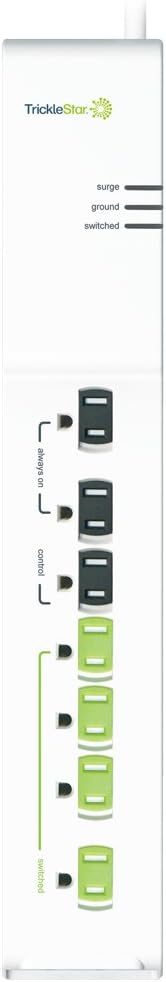

This image displays the top surface of the TrickleStar TS1104 Advanced PowerStrip. It clearly labels the two black "always on" outlets, the single black "control" outlet, and the four green "switched" outlets. LED indicators for surge, ground, and switched status are visible at the top left.
இந்தப் படம் ஒரு பக்கவாட்டு நிபுணரைக் காட்டுகிறது.file of the TrickleStar TS1104 Advanced PowerStrip. A small, recessed switch is visible on the side, which is used to adjust the power threshold for the control device, allowing customization for different power consumption levels.
4. இயக்க வழிமுறைகள்
Once set up, the TrickleStar TS1104 operates automatically:
- இயக்கப்படுகிறது: When you turn on the device plugged into the "Control" outlet, the power strip senses the increase in power consumption. After a brief delay (typically a few seconds), power will be supplied to the "Switched" outlets, activating all connected peripheral devices.
- Powering Off/Standby: When you turn off or put the control device into standby mode, its power consumption drops below the set threshold. The power strip will then automatically cut power to the "Switched" outlets, effectively turning off all connected peripherals and eliminating standby power draw.
- LED குறிகாட்டிகள்:
- எழுச்சி LED: Illuminates when surge protection is active. If this light is off, the surge protection has been compromised, and the unit should be replaced.
- தரை LED: Illuminates when the power strip is properly grounded. If this light is off, there may be a grounding issue with your wall outlet.
- Switched Outlets LED: Illuminates when power is supplied to the "Switched" outlets.
5. பராமரிப்பு
The TrickleStar TS1104 is designed for minimal maintenance. However, consider the following:
- சுத்தம்: Disconnect the power strip from the wall outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or immerse the unit in water.
- எழுச்சி பாதுகாப்பு நிலை: Regularly check the "Surge" LED indicator. If this light is off, it means the surge protection components (MOVs) have absorbed a significant surge and are no longer providing protection. In this event, the power strip should be replaced to ensure continued protection for your devices.
- சுற்று பிரிப்பான்: The power strip includes a resettable circuit breaker. If the power strip experiences an overload, the breaker may trip, cutting power to all outlets. To reset, unplug some devices, then press the circuit breaker button (usually located on the side or end of the unit) back in.
6. சரிசெய்தல்
If you encounter issues with your TrickleStar TS1104, refer to the following common problems and solutions:
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| Switched outlets do not turn on when control device is active. |
|
|
| Switched outlets turn off unexpectedly or too quickly. |
|
|
| எந்த அவுட்லெட்டுகளுக்கும் மின்சாரம் இல்லை. |
|
|
| Surge LED is off. |
|
|
| Ground LED is off. |
|
|
7. விவரக்குறிப்புகள்
- மாதிரி: TS1104 (Part Number: 181SS-US-7XX)
- விற்பனை நிலையங்கள்: 7 (2 Always On, 1 Control, 4 Switched)
- எழுச்சி பாதுகாப்பு: 1080 ஜூல்கள்
- தொகுதிtage: 125 வோல்ட்
- Ampஆவேச திறன்: 15 Amps
- Switching Thresholds: 10W / 22W / 42W (Selectable)
- சத்தம் வடிகட்டுதல்: 40dB
- தண்டு நீளம்: 12 அடி
- பரிமாணங்கள்: தோராயமாக 38.1 x 6.99 x 3.81 செமீ (15 x 2.75 x 1.5 அங்குலம்)
- எடை: தோராயமாக 544 கிராம் (1.2 பவுண்ட்)
- பொருள்: Metal Oxide (for MOVs)
- நிறம்: வெள்ளை
- உற்பத்தியாளர்: Trickle Star
8. உத்தரவாதம் மற்றும் ஆதரவு
The TrickleStar TS1104 Advanced PowerStrip comes with a "Product Lifetime" warranty, which is defined as a 10-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or further assistance not covered in this manual, please contact TrickleStar customer service. Refer to the product packaging or the official TrickleStar webமிகவும் புதுப்பித்த தொடர்புத் தகவலுக்கான தளம்.
முக்கியமானது: Do not attempt to open or repair the power strip yourself, as this will void the warranty and could pose a safety risk.
