Electro-Voice RE20 Broadcast Announcer Microphone

1. அறிமுகம்

The Electro-Voice RE20 is a dynamic cardioid microphone recognized as an industry standard. It is widely favored by broadcasters, podcasters, and sound engineers globally. Its design also makes it a premium-grade instrument microphone for music production. The Variable-D design and heavy-duty internal pop filter are optimized for close-in voice work, while an internal element shock-mount minimizes vibration-induced noise.

2 முக்கிய அம்சங்கள்

• Dynamic Cardioid Design: An industry standard for broadcasting, podcasting, and sound engineering.
• Variable-D Technology: Minimizes proximity effect, ensuring consistent sound quality during close-up vocal use.
• Heavy-Duty Internal Pop Filter: Effectively reduces plosive sounds for clear voice capture.
• Internal Element Shock-Mount: Reduces unwanted vibration-induced noise.
• Large Diaphragm Dynamic Element: Contributes to high-quality audio reproduction.
• Humbucking Coil: Guards against line hum interference.
• Mid-Bass Tone-Shaping Switch: Allows for adjustment of the microphone's tonal characteristics.

3 அமைவு

3.1 பெட்டியை வெளியே எடுத்தல் மற்றும் ஆரம்ப ஆய்வு

Carefully remove the microphone and its accessories from the packaging. Inspect all components for any signs of damage. The package includes the RE20 microphone and an 81715 stand clamp.

3.2 Mounting the Microphone

Attach the provided 81715 stand clamp to a standard microphone stand or boom arm. Securely fasten the RE20 microphone into the stand clamp. Ensure the microphone is stable and positioned to minimize accidental bumps or falls.

Figure 1: Electro-Voice RE20 microphone mounted on a stand, illustrating typical studio setup.

3.3 ஆடியோ உபகரணங்களுடன் இணைத்தல்

The RE20 features an XLR connector. Connect a high-quality XLR cable from the microphone to your audio interface, mixer, or preamplifier. As a dynamic microphone, the RE20 does not require phantom power, but it is compatible with equipment that provides it.

4. இயக்க வழிமுறைகள்

4.1 மைக்ரோஃபோன் இடம் மற்றும் நுட்பம்

The RE20's Variable-D design effectively controls the proximity effect, allowing for close microphone placement without excessive bass boost. For vocal applications, position the microphone 1 to 6 inches from the sound source. Experiment with distance to achieve the desired tonal balance.

படம் 2: முன் view of the Electro-Voice RE20 microphone, highlighting its robust construction.

4.2 Using the Mid-Bass Tone-Shaping Switch

The RE20 includes a mid-bass tone-shaping switch located on the microphone body. This switch allows you to tailor the low-frequency response to suit different voices or instruments, or to compensate for room acoustics. Adjust the switch as needed to achieve optimal sound clarity and presence.

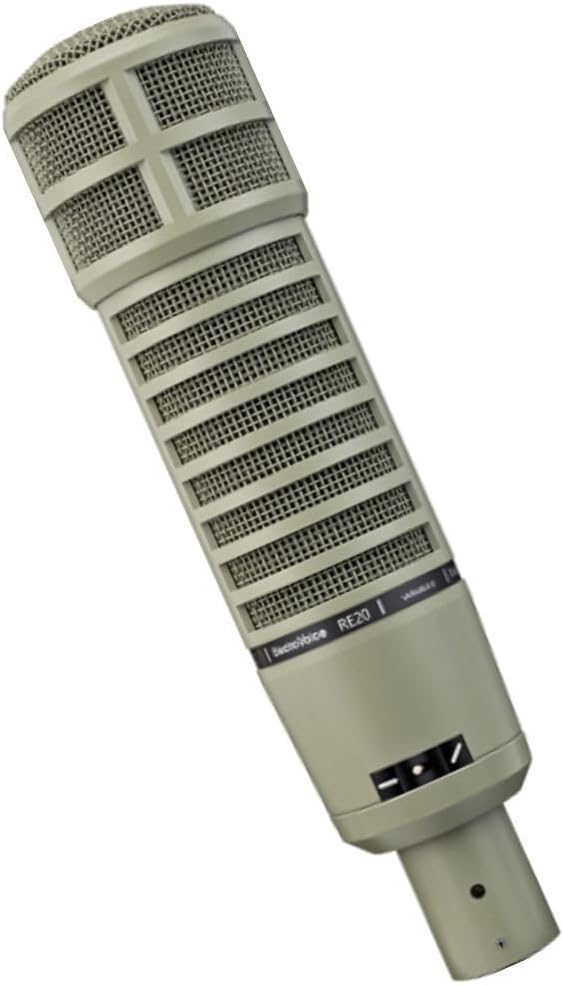

படம் 3: கோணல் view of the Electro-Voice RE20, showing the mid-bass tone-shaping switch.

5. பராமரிப்பு

5.1 சுத்தம் செய்தல்

To clean the microphone's exterior, use a soft, dry cloth. For the grille, a soft brush can be used to gently remove dust or debris. Avoid using liquid cleaners or solvents, as these can damage the microphone's components.

5.2 சேமிப்பு

When not in use, store the RE20 in a protective case to prevent dust and moisture accumulation. Store in a cool, dry place away from direct sunlight or extreme temperatures.

5.3 கையாளுதல்

Handle the microphone with care. Avoid dropping it or subjecting it to harsh impacts, as this can damage the internal components, including the shock-mount and dynamic element.

6. சரிசெய்தல்

6.1 ஒலி வெளியீடு இல்லை

• Check all XLR cable connections to ensure they are secure.
• Verify that the input gain on your audio interface or mixer is set appropriately.
• Ensure the correct input channel is selected on your audio equipment.

6.2 Unwanted Hum or Noise

• Ensure all audio cables are properly shielded and in good condition.
• Check for proper grounding of your audio equipment.
• The RE20 features a humbucking coil to reduce line hum; ensure it is functioning correctly.
• Move the microphone away from potential sources of electromagnetic interference (e.g., power supplies, monitors).

6.3 Distorted Audio

• Reduce the input gain on your audio interface or mixer.
• Ensure the microphone is not positioned too close to a very loud sound source.
• Check the input levels on your recording software to prevent clipping.

7. விவரக்குறிப்புகள்

8. பெட்டியில் என்ன இருக்கிறது

• Electro-Voice RE20 Broadcast Announcer Microphone
• 81715 Stand Clamp

9. உத்தரவாதம் மற்றும் ஆதரவு

For warranty information and technical support, please refer to the official Electro-Voice webதளத்தில் அல்லது அவர்களின் வாடிக்கையாளர் சேவையை நேரடியாகத் தொடர்பு கொள்ளவும். எந்தவொரு உத்தரவாதக் கோரிக்கைகளுக்கும் உங்கள் வாங்கியதற்கான ஆதாரத்தை வைத்திருங்கள்.
