Orbegozo HBF 95 Butane Gas Heater User Manual

1. அறிமுகம் மற்றும் முடிந்துவிட்டதுview

The Orbegozo HBF 95 Butane Gas Heater is a powerful and versatile heating solution designed to provide efficient and safe warmth for your indoor spaces. Featuring advanced blue flame technology and a robust triple safety system, this heater ensures a comfortable and secure environment. Its compact design, combined with convenient portability features, makes it an ideal choice for various settings.

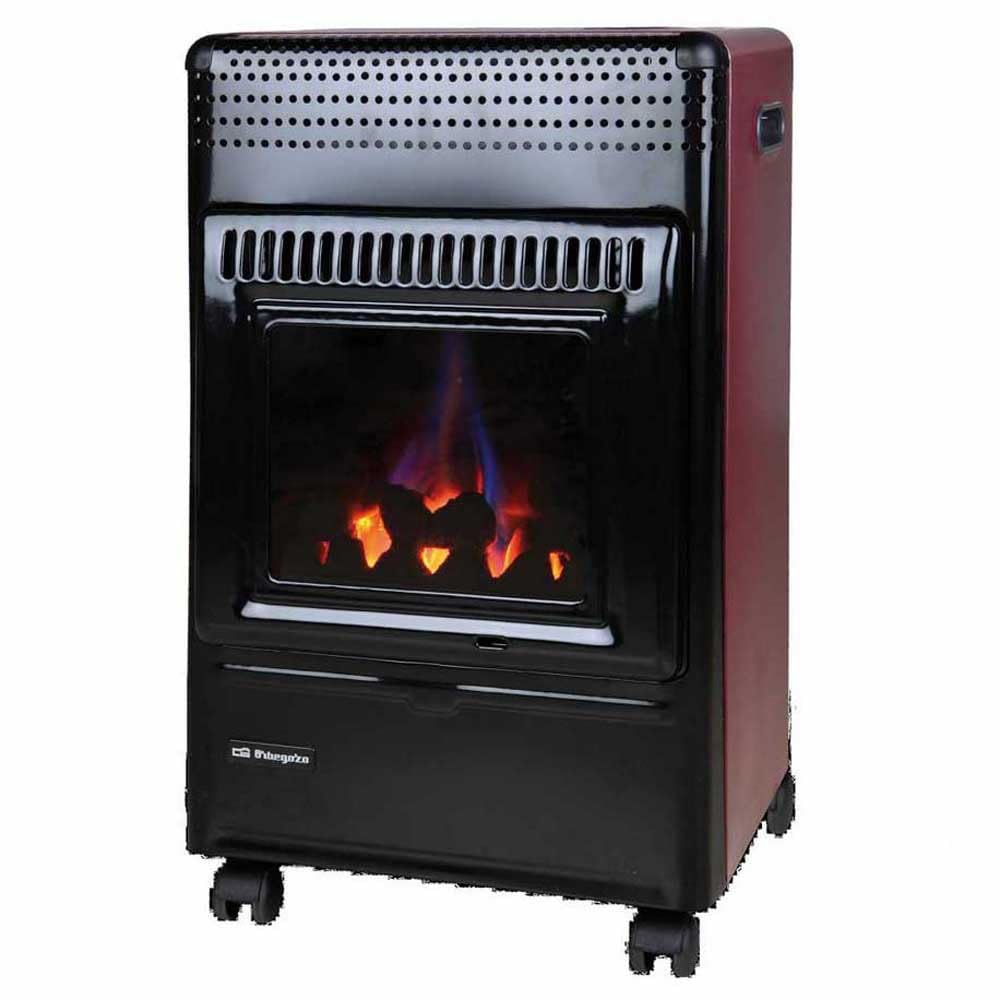

Image: Orbegozo HBF 95 Butane Gas Heater.

2. பாதுகாப்பு தகவல்

Your safety is paramount. Please read and understand all safety instructions before operating the Orbegozo HBF 95 gas heater. Failure to follow these instructions could result in fire, explosion, property damage, personal injury, or death.

• காற்றோட்டம்: Always ensure adequate ventilation when the heater is in operation. Do not use in unventilated areas or small, enclosed spaces.
• அனுமதி: Maintain minimum safe distances from combustible materials (curtains, furniture, clothing, etc.). Refer to the labels on the appliance for specific distances.
• Never Cover: Do not cover the heater or block its air inlets/outlets at any time.
• குழந்தைகள் மற்றும் செல்லப்பிராணிகள்: Keep children and pets away from the heater, especially when it is operating. The surfaces can become very hot.
• எரிவாயு உருளை: Ensure the gas cylinder is correctly connected and secured. Check for leaks using soapy water, never an open flame.
• டிரிபிள் பாதுகாப்பு அமைப்பு: This heater is equipped with a triple safety system including an automatic flame failure disconnection and an atmospheric CO2 analyzer. If the flame goes out or CO2 levels become too high, the heater will automatically shut off. Do not attempt to bypass these safety features.
• பைசோ எலக்ட்ரிக் பற்றவைப்பு: Use the integrated piezoelectric ignition for safe and easy startup.
• ஹீட்டரை நகர்த்துதல்: Only move the heater when it is cool and the gas supply is turned off. Use the carrying handles and pivoting wheels for easy transport.

3. தயாரிப்பு அம்சங்கள்

The Orbegozo HBF 95 gas heater is designed with user convenience and safety in mind:

• உயர் ஆற்றல் வெளியீடு: Maximum power of 3500 W for effective heating.
• Blue Flame Technology: Provides rapid and uniform heating throughout the room.
• டிரிபிள் பாதுகாப்பு அமைப்பு: Includes automatic flame failure disconnection and an atmospheric CO2 analyzer for enhanced safety.
• பைசோ எலக்ட்ரிக் பற்றவைப்பு: Ensures easy, intuitive, and safe startup.
• Fuel Versatility: Compatible with both butane and propane gas.
• பெயர்வுத்திறன்: Equipped with carrying handles and pivoting wheels for effortless movement.
• சிறிய வடிவமைப்பு: Dimensions of 40 x 70 x 34 cm (width x height x length) for convenient placement.
• ஆற்றல் திறன்: Rated Class A for efficient operation.

4 அமைவு

Follow these steps to set up your Orbegozo HBF 95 gas heater:

1. பேக்கிங்: Carefully remove the heater from its packaging. Retain all packaging materials for future storage or transport.
2. சக்கர அசெம்பிளி: If the pivoting wheels are not pre-assembled, attach them to the base of the heater using the provided hardware. Ensure they are securely fastened.
3. எரிவாயு சிலிண்டர் இணைப்பு:
   • Place the gas cylinder (butane or propane, max 13 kg) into the designated compartment at the rear of the heater.
   • Connect the gas hose to the heater's gas inlet and secure it with the provided clamp.
   • Attach the gas regulator to the gas cylinder valve. Ensure a tight and secure connection.
   • Open the gas cylinder valve slowly and check for any gas leaks using soapy water. Bubbles indicate a leak. If a leak is detected, close the valve immediately and re-check connections. Do not use the heater if a leak persists.
4. இடம்: Position the heater on a flat, stable surface in a well-ventilated area. Ensure there is sufficient clearance from walls, furniture, and other combustible materials as indicated on the heater's warning labels.

5. இயக்க வழிமுறைகள்

To operate your Orbegozo HBF 95 gas heater:

1. எரிவாயு விநியோகத்தை உறுதி செய்யுங்கள்: Confirm the gas cylinder valve is open.
2. பற்றவைப்பு:
   • Press and turn the control knob to the desired power setting (e.g., low, medium, high).
   • While holding the knob in, press the piezoelectric ignition button repeatedly until the pilot flame ignites.
   • Continue to hold the control knob for approximately 10-20 seconds after ignition to allow the thermocouple to heat up and activate the safety valve. Release the knob slowly. The main burner should now be lit.
3. சரிசெய்யும் சக்தி: Rotate the control knob to select your desired heat output. The heater offers adjustable power levels up to 3500 W.
4. அணைக்கப்படுகிறது: To turn off the heater, turn the control knob to the 'OFF' position. Close the gas cylinder valve when the heater is not in use or for extended periods.

6. பராமரிப்பு

Regular maintenance ensures the longevity and safe operation of your heater:

• சுத்தம்: Ensure the heater is completely cool and the gas supply is off before cleaning. Wipe the exterior with a soft, damp துணி. சிராய்ப்பு கிளீனர்கள் அல்லது கரைப்பான்களைப் பயன்படுத்த வேண்டாம்.
• Burner and Grille: Periodically check the burner and protective grille for any obstructions or damage. Gently remove any dust or debris.
• எரிவாயு குழாய் மற்றும் சீராக்கி: Inspect the gas hose and regulator regularly for signs of wear, cracks, or damage. Replace them immediately if any damage is found. Check the expiry date on the hose and regulator and replace them as recommended by the manufacturer.
• சேமிப்பு: When storing the heater for extended periods, disconnect the gas cylinder, clean the unit, and store it in a dry, safe place away from direct sunlight and extreme temperatures.

7. சரிசெய்தல்

If you encounter issues with your heater, refer to the following common troubleshooting tips:

• ஹீட்டர் பற்றவைக்காது:
  • எரிவாயு சிலிண்டர் வால்வு முழுமையாக திறந்திருப்பதை உறுதி செய்யவும்.
  • Check if the gas cylinder is empty and replace if necessary.
  • Verify that the gas hose and regulator are correctly connected and not leaking.
  • Hold the control knob down for the recommended 10-20 seconds after pressing the ignition button to allow the thermocouple to heat up.
• Flame goes out during operation:
  • This could be due to the automatic flame failure safety system. Check if the gas cylinder is running low or empty.
  • Ensure adequate ventilation in the room. The CO2 analyzer may have detected high CO2 levels and shut off the heater. Ventilate the room thoroughly before attempting to restart.
• Unusual smell of gas:
  • Immediately turn off the heater and close the gas cylinder valve.
  • பகுதியை காற்றோட்டம் செய்ய ஜன்னல்கள் மற்றும் கதவுகளைத் திறக்கவும்.
  • Check all gas connections for leaks using soapy water. If a leak is found or the smell persists, do not use the heater and contact a qualified technician.

If the problem persists after following these steps, please contact Orbegozo customer support or a qualified service technician.

8. விவரக்குறிப்புகள்

9. உத்தரவாதம் மற்றும் ஆதரவு

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Orbegozo webஎந்தவொரு உத்தரவாதக் கோரிக்கைகளுக்கும் வாங்கியதற்கான சான்றாக உங்கள் கொள்முதல் ரசீதை வைத்திருங்கள்.
