Grundfos UPS15-58FRC 3-வேக சுழற்சி பம்ப் அறிவுறுத்தல் கையேடு

1. அறிமுகம்

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Grundfos UPS15-58FRC 3-Speed Circulation Pump. Please read these instructions carefully before installation and retain them for future reference.

1.1 பாதுகாப்பு தகவல்

எச்சரிக்கை: Electrical shock hazard. Ensure power is disconnected before installation or servicing. All electrical work must be performed by a qualified electrician in accordance with local codes and regulations.

எச்சரிக்கை: Hot surfaces. The pump and connected piping may become hot during operation. Allow to cool before handling. Wear appropriate personal protective equipment.

• Do not operate the pump without liquid.
• சரியான அடித்தளத்தை உறுதிப்படுத்தவும்.
• பம்ப் செயல்பாட்டின் போது குழந்தைகள் மற்றும் அங்கீகரிக்கப்படாத நபர்களை பம்பிலிருந்து விலக்கி வைக்கவும்.

2. தயாரிப்பு அம்சங்கள்

The Grundfos UPS15-58FRC is a robust and reliable circulation pump designed for various water circulation applications. Key features include:

• Durable Cast Iron Construction: Provides extended lifespan and protection against corrosion.
• 3-வேக செயல்பாடு: Allows for adjustment of flow rates to suit specific system requirements.
• Integrated Flow Check Valve: Limits water flow to a single direction, preventing backflow.
• விஸ்பர் அமைதியான செயல்பாடு: Engineered for low noise levels during use.
• Hardwire Electrical Connection: Designed for direct connection to your electrical supply.

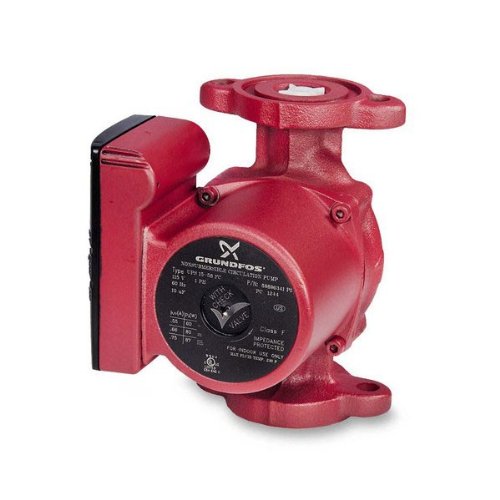

Figure 1: Grundfos UPS15-58FRC 3-Speed Circulation Pump. This image shows the compact design and cast iron housing of the pump.

3. அமைவு மற்றும் நிறுவல்

Installation of the Grundfos UPS15-58FRC pump should be performed by a qualified professional to ensure proper function and adherence to all local plumbing and electrical codes.

3.1 மவுண்டிங்

• Choose a suitable location that allows for easy access for maintenance and is protected from freezing temperatures.
• Ensure the pump is mounted securely to a stable surface, minimizing vibration.
• The pump should be installed with the motor shaft in a horizontal position for optimal performance and longevity.

3.2 பிளம்பிங் இணைப்புகள்

• Connect the pump to the piping system using appropriate fittings. Ensure all connections are watertight.
• Observe the flow direction arrow on the pump housing to ensure correct installation relative to the system flow. The integrated check valve will enforce this direction.
• Avoid placing excessive strain on the pump connections from misaligned piping.

3.3 மின் வயரிங்

• எச்சரிக்கை: Disconnect power at the main circuit breaker before beginning any electrical work.
• Wire the pump according to the wiring diagram provided on the pump's terminal box cover and local electrical codes.
• மின் அபாயங்களைத் தடுக்க சரியான தரையை உறுதிப்படுத்தவும்.
• வழங்கல் தொகுதி என்பதை சரிபார்க்கவும்tage பம்பின் தேவைகளைப் பூர்த்தி செய்கிறது.

4. இயக்க வழிமுறைகள்

Once installed and filled with liquid, the Grundfos UPS15-58FRC pump is ready for operation.

4.1 ஆரம்ப தொடக்கம்

• Ensure the system is completely filled with water and properly vented to remove any air. Air in the system can damage the pump.
• பம்பிற்கு மின்சாரத்தை மீட்டெடுங்கள்.
• The pump will begin operating at the selected speed. Listen for unusual noises, which may indicate air in the system or an installation issue.

4.2 வேகத் தேர்வு

The UPS15-58FRC features a 3-speed selector switch, typically located on the motor housing. Adjust the switch to select the desired speed (I, II, or III) based on your system's flow requirements. Higher speeds provide greater flow and head.

• வேகம் I: Lowest flow/head.
• வேகம் II: Medium flow/head.
• வேகம் III: Highest flow/head.

5. பராமரிப்பு

The Grundfos UPS15-58FRC pump is designed for reliable operation with minimal maintenance. Regular inspections can help ensure its longevity.

• ஆண்டு ஆய்வு: Check for any signs of leaks around the pump or piping connections.
• சத்தம் சரிபார்ப்பு: Listen for any unusual noises during operation, which could indicate air in the system or a mechanical issue.
• தூய்மை: Keep the pump and surrounding area clean and free from debris to ensure proper ventilation and prevent overheating.
• குளிர்காலமயமாக்கல்: If the pump is installed in an area subject to freezing temperatures, ensure the system is properly drained or protected from freezing when not in use.

No lubrication or other routine servicing of internal components is typically required for this sealed unit.

6. சரிசெய்தல்

Before attempting any troubleshooting, ensure the power supply to the pump is disconnected. If you are unable to resolve an issue, contact a qualified technician.

7. விவரக்குறிப்புகள்

8. உத்தரவாதம் மற்றும் ஆதரவு

For detailed warranty information, please refer to the official Grundfos website or the warranty card included with your product. For technical support or service inquiries, please contact Grundfos customer service directly.

நீங்கள் பொதுவாக உற்பத்தியாளரின் அதிகாரப்பூர்வ முகவரியில் தொடர்புத் தகவலைக் காணலாம். webதளம்: www.grundfos.com
