American Lighting H2-Jump.5 6-inch Jumper for Hybrid 2 LED Lighting Systems

1. அறிமுகம்

The American Lighting H2-Jump.5 is a 6-inch jumper cable designed to connect segments of the American Lighting Hybrid 2 LED lighting system. This accessory facilitates flexible installation by allowing gaps or turns between LED strip sections, ensuring continuous illumination. This manual provides essential information for the safe and correct installation and use of the H2-Jump.5 jumper.

2. தயாரிப்பு முடிந்துவிட்டதுview

The H2-Jump.5 jumper is a critical component for customizing Hybrid 2 LED lighting layouts. It provides a 6-inch flexible connection between two Hybrid 2 LED light sections, allowing for navigation around obstacles or extending runs without direct contact. The jumper includes necessary middle connectors, power connectors, and end caps for a complete and secure installation.

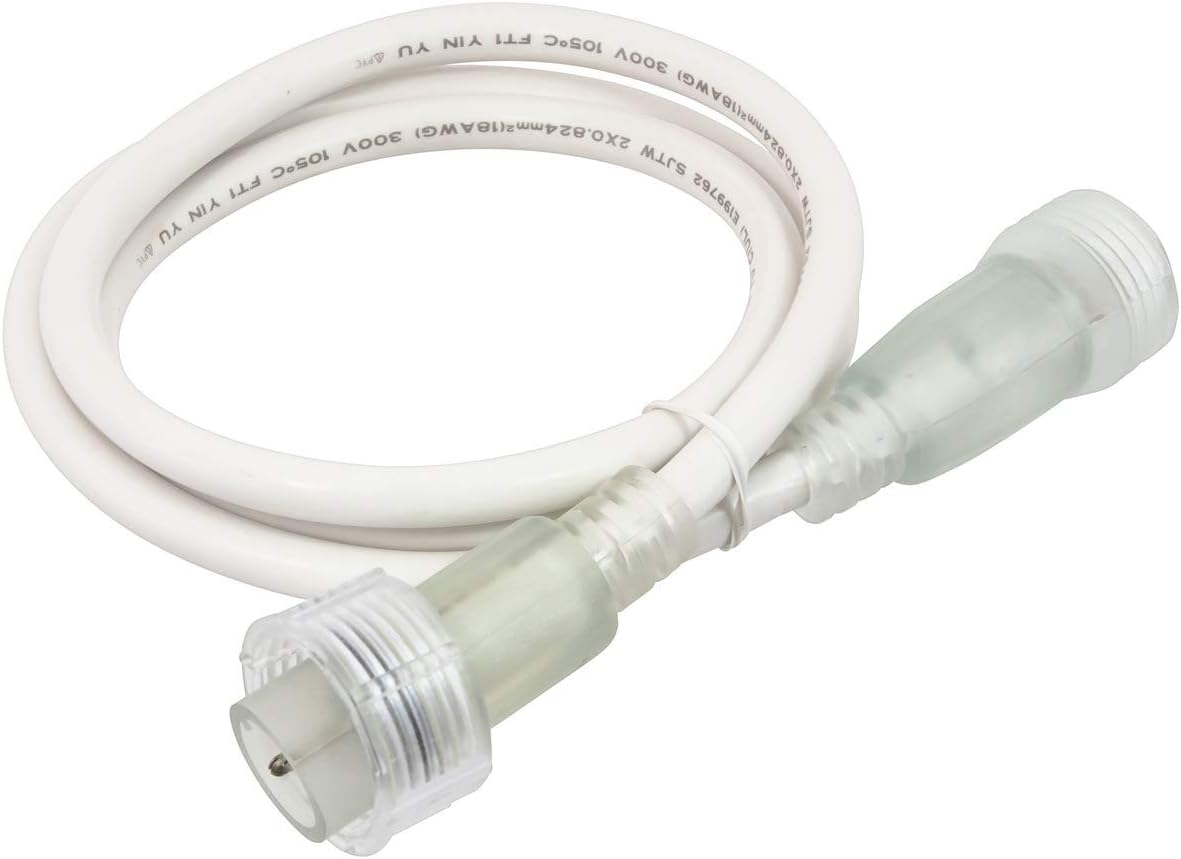

படம் 1: American Lighting H2-Jump.5 6-inch Jumper. This image displays the white 6-inch jumper cable with clear, threaded connectors on both ends, designed for connecting sections of Hybrid 2 LED lighting. The cable is marked with specifications: CUL E199762 SJTW 2X0.824mm²(18AWG) 300V 105°C FT1 YIN YU APVC.

3. தொகுப்பு உள்ளடக்கங்கள்

• 1 x H2-Jump.5 6-inch Jumper Cable
• Middle Connector(s)
• Power Connector(s) (if applicable for initial connection)
• End Cap(s) (for sealing open ends of LED strips)

4. பாதுகாப்பு தகவல்

Please read and understand all safety instructions before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• மின் இணைப்பை துண்டிக்கவும்: Always ensure power is disconnected at the circuit breaker before installing or servicing any electrical components.
• தகுதியான பணியாளர்கள்: Installation should be performed by a qualified electrician or trained personnel familiar with electrical wiring and lighting systems.
• உட்புற பயன்பாட்டிற்கு மட்டும்: This product is designed for indoor applications as indicated by its specifications. Do not expose to moisture or outdoor elements unless explicitly rated for such use.
• தொகுதிtagஇ இணக்கத்தன்மை: Ensure the jumper is used only with American Lighting Hybrid 2 LED systems and compatible power sources.
• பாதுகாப்பான இணைப்புகள்: All connections must be tight and secure to prevent electrical hazards and ensure proper operation.
• சேதத்தைத் தவிர்க்க: Do not bend, twist, or pull the cable excessively. Inspect the cable for any damage before installation.

5. அமைவு மற்றும் நிறுவல்

Follow these steps to properly install the H2-Jump.5 jumper with your Hybrid 2 LED lighting system:

1. திட்ட தளவமைப்பு: Before beginning, plan the desired layout of your Hybrid 2 LED strips, identifying where the 6-inch jumper will be needed to bridge gaps or navigate corners.
2. Prepare LED Strips: Ensure the ends of the Hybrid 2 LED strips are clean and free from debris. If cutting the LED strip, ensure cuts are made only at designated marks and that the end is properly prepared for connection.
3. Connect Jumper to First Strip: Take one end of the H2-Jump.5 jumper. Align the pins of the jumper's connector with the corresponding receptacles on the end of the first Hybrid 2 LED strip. Gently push the connector firmly into place. Once seated, twist the threaded collar of the jumper connector to secure it to the LED strip, ensuring a watertight and secure connection.
4. Connect Jumper to Second Strip: Repeat the previous step for the other end of the H2-Jump.5 jumper, connecting it to the start of the next Hybrid 2 LED strip segment. Ensure both connections are fully tightened.
5. பாதுகாப்பான வயரிங்: Route the jumper cable neatly and secure it using appropriate clips or channels to prevent strain or damage.
6. பவர் ஆன்: Once all connections are made and secured, restore power to the circuit. Test the LED lighting system to ensure continuous and proper illumination across all connected segments.

6. ஆபரேஷன்

The H2-Jump.5 jumper is a passive component designed to facilitate electrical continuity between Hybrid 2 LED strip segments. Once correctly installed, it requires no direct operation. The connected LED strips will function as a single, continuous unit, controlled by their respective power supply and controller (if applicable).

7. பராமரிப்பு

The H2-Jump.5 jumper requires minimal maintenance. Regular inspection can help ensure its longevity and safe operation:

• காட்சி ஆய்வு: Periodically check the jumper cable and its connections for any signs of wear, damage, or loose connections.
• சுத்தம்: If necessary, gently wipe the cable and connectors with a dry, soft cloth to remove dust or debris. Do not use harsh chemicals or abrasive cleaners.
• சுற்றுச்சூழல் நிலைமைகள்: Ensure the jumper remains in an environment consistent with its indoor rating, free from excessive moisture or extreme temperatures.

8. சரிசெய்தல்

If the LED lighting system does not function correctly after installing the H2-Jump.5 jumper, consider the following:

• No Light on Connected Segment:
  • Verify that power is supplied to the entire system.
  • Check both ends of the H2-Jump.5 jumper to ensure they are securely and correctly connected to the LED strips. Loose connections are a common cause of failure.
  • Inspect the jumper cable for any visible damage or kinks that might interrupt the electrical flow.
  • Ensure the LED strips themselves are functional and correctly installed.
• இடைப்பட்ட விளக்குகள்:
  • Tighten all threaded collars on the jumper connectors.
  • Check for any movement or strain on the cable that might cause intermittent contact.

If issues persist, disconnect power and consult a qualified electrician or contact American Lighting customer support.

9. விவரக்குறிப்புகள்

10. உத்தரவாதம் மற்றும் ஆதரவு

For warranty information or technical support regarding your American Lighting H2-Jump.5 jumper, please refer to the official American Lighting webதளத்தில் அல்லது அவர்களின் வாடிக்கையாளர் சேவையை நேரடியாகத் தொடர்பு கொள்ளவும். உத்தரவாதக் கோரிக்கைகளுக்கு உங்கள் கொள்முதல் ரசீதை வைத்திருங்கள்.

American Lighting Contact Information:
தயவுசெய்து பார்வையிடவும் American Lighting Store on Amazon அல்லது அவர்களின் அதிகாரி webமிகவும் தற்போதைய ஆதரவு விவரங்களுக்கான தளம்.
