அறிமுகம்
This instruction manual provides essential information for the safe installation, operation, and maintenance of your Knightsbridge Screwless 6G Grid Faceplate, model GDSF006MB. Please read these instructions carefully before installation and retain them for future reference.
முக்கியமான பாதுகாப்பு தகவல்
எச்சரிக்கை: Electrical installations should only be carried out by a qualified electrician in accordance with national wiring regulations. Always isolate the mains power supply before commencing any electrical work.
- Ensure the power supply is disconnected at the consumer unit/fuse board before installation.
- இந்த தயாரிப்பு உட்புற பயன்பாட்டிற்காக மட்டுமே வடிவமைக்கப்பட்டுள்ளது.
- d-இல் நிறுவ வேண்டாம்amp or freshly plastered surfaces.
- Ensure all connections are secure and correctly wired.
- This product is rated IP20, meaning it is protected against solid objects over 12.5mm, but has no protection against water.
நிறுவல் வழிமுறைகள்
The Knightsbridge Screwless 6G Grid Faceplate is designed for easy installation over a compatible 6-gang grid module. Follow these steps for a secure and aesthetic finish.
- Prepare the Grid Module: Ensure your 6-gang grid module (not supplied) is correctly installed and wired into the wall box according to electrical regulations. The module should be securely fixed to the wall box.
- Attach the Faceplate Frame: The screwless faceplate consists of two parts: a main frame and a decorative front plate. Align the main frame with the grid module and secure it using the screws provided with your grid module. Ensure it is flush with the wall.
- Secure the Decorative Front Plate: Once the main frame is securely attached, carefully clip the decorative screwless front plate onto the main frame. Apply gentle, even pressure until it clicks into place. Ensure all edges are flush and there are no gaps.

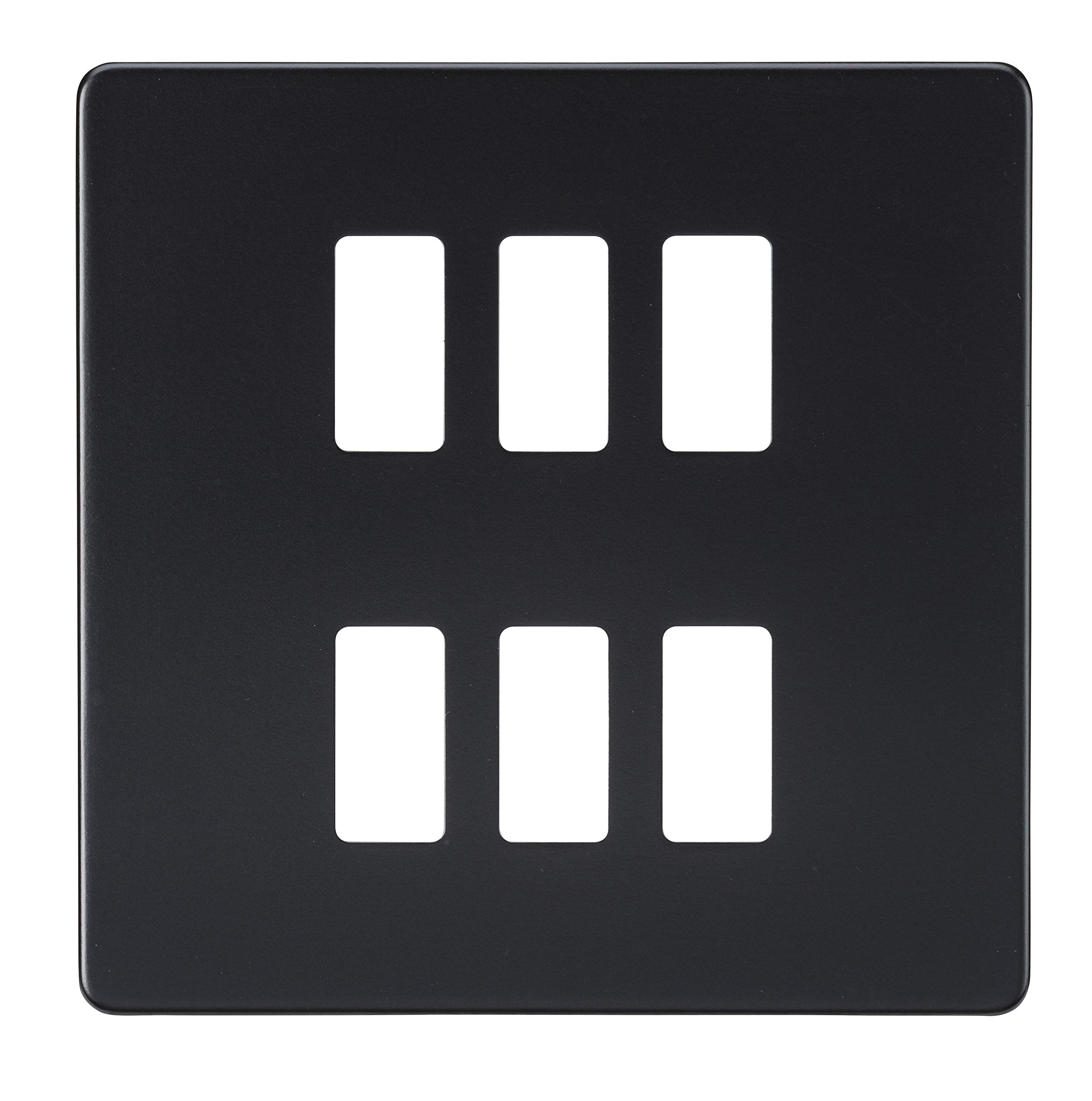

படம் 1: முன் view of the Knightsbridge Screwless 6G Grid Faceplate. This image shows the six openings for grid modules and the sleek, screwless design.
படம் 2: கோணல் view of the Knightsbridge Screwless 6G Grid Faceplate, highlighting its slim profile and matt black finish.
ஆபரேஷன்
The screwless faceplate itself does not have operational functions. Its purpose is to provide a clean, aesthetic finish for your installed 6-gang grid modules (e.g., light switches, dimmer switches, or sockets). Once installed, the functionality is determined by the grid modules fitted within it.
To remove the decorative front plate for maintenance or access to the grid modules, carefully insert a small flat-head screwdriver into the notch at the bottom edge of the faceplate and gently pry it off. Exercise caution to avoid damaging the finish.
பராமரிப்பு மற்றும் சுத்தம்
To maintain the appearance and functionality of your faceplate, follow these simple guidelines:
- சுத்தம்: Wipe the surface with a soft, dry cloth. For stubborn marks, a slightly damp cloth with mild soap can be used, followed by drying with a clean, soft cloth.
- தவிர்க்கவும்: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the matt black finish.
- ஆய்வு: Periodically check for any signs of damage or loose connections. If any issues are found, consult a qualified electrician.
சரிசெய்தல்
This section addresses common concerns related to the faceplate itself. For issues related to the electrical functionality of the grid modules, refer to their respective manuals or consult a qualified electrician.
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| Faceplate does not sit flush. | Main frame not properly secured or wall box uneven. | Ensure the main frame is tightly screwed to the wall box. Check if the wall surface is even. |
| Decorative front plate does not clip on. | தவறான சீரமைப்பு அல்லது தடை. | Re-align the front plate with the main frame. Check for any debris or obstructions preventing it from clicking into place. |
| Scratches or marks on the finish. | Abrasive cleaning or impact. | Avoid abrasive cleaners. Handle with care during installation and cleaning. Minor marks may be permanent. |
விவரக்குறிப்புகள்
| மாதிரி எண்: | GDSF006MB |
| விளக்கம்: | Screwless 6G Grid Faceplate |
| முடிக்க: | மாட் பிளாக் |
| பொருள்: | Premium Grade Steel (Alloy Steel) |
| பரிமாணங்கள் (H x W x D): | 148 மிமீ x 148 மிமீ x 3.5 மிமீ |
| நிகர எடை: | 0.09 கிலோ (90 கிராம்) |
| IP மதிப்பீடு: | IP20 |
| Manufactured in accordance with: | BS EN 60670-1 |
| Origin of Manufacture: | சீனா |
உத்தரவாதம்
This Knightsbridge product comes with a 15 வருட உத்தரவாதம் from the date of purchase, covering manufacturing defects. This warranty does not cover damage caused by improper installation, misuse, abuse, or normal wear and tear. Please retain your proof of purchase for any warranty claims.
ஆதரவு மற்றும் தொடர்பு
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Knightsbridge customer support. Refer to the official Knightsbridge webமிகவும் புதுப்பித்த தொடர்புத் தகவலுக்கான தளம்.
Knightsbridge: www.mlaccessories.co.uk
