அறிமுகம்
Thank you for choosing the WilTec Outdoor Cat Enclosure. This manual provides essential information for the safe assembly, operation, and maintenance of your new cat enclosure. Please read these instructions carefully before assembly and retain them for future reference.
பாதுகாப்பு வழிமுறைகள்
- Ensure all components are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or broken.
- Assembly should be performed by at least two adults to ensure safety and ease of construction.
- Wear appropriate safety gear, such as gloves, during assembly to prevent injuries.
- Place the enclosure on a level, stable surface to prevent tipping.
- Regularly inspect the enclosure for any signs of wear, damage, or loose components. Tighten screws and replace damaged parts as necessary.
- விபத்துகளைத் தவிர்க்க, குழந்தைகள் மற்றும் செல்லப்பிராணிகளை சட்டசபைப் பகுதியிலிருந்து விலக்கி வைக்கவும்.
- This enclosure is designed for outdoor use only.
- Do not modify the product in any way, as this may compromise its structural integrity and safety.
தொகுப்பு உள்ளடக்கங்கள்
பின்வரும் அனைத்து கூறுகளும் உங்கள் தொகுப்பில் சேர்க்கப்பட்டுள்ளதா என்பதைச் சரிபார்க்கவும்:
- Pre-drilled fir wood panels and frames
- கால்வனேற்றப்பட்ட எஃகு கண்ணி பேனல்கள்
- Bitumen roof sections
- Resting platforms (6 units)
- Lockable door assembly
- Hardware kit (screws, bolts, hinges, latches)
- சட்டசபை வழிமுறை கையேடு
If any parts are missing or damaged, please contact WilTec customer support immediately.
அமைப்பு மற்றும் சட்டசபை
The WilTec Outdoor Cat Enclosure is designed for straightforward assembly with pre-drilled holes. Follow these steps carefully:
- பிரித்து ஒழுங்கமைக்கவும்: Carefully unpack all components and lay them out on a clean, flat surface. Group similar parts together.
- அடிப்படை சட்டகத்தை அசெம்பிள் செய்யவும்: Connect the base frame sections using the provided hardware. Ensure all connections are secure.
- பக்கவாட்டு பேனல்களை இணைக்கவும்: Secure the side panels, which include the galvanized steel mesh, to the base frame.
- Install Resting Platforms: Attach the six resting platforms at various heights as indicated in the detailed assembly diagram (refer to the separate diagram sheet if provided).
- Mount Door: Install the door frame and attach the lockable door using the hinges and latch mechanism. Test the locking function.
- Secure Roof: Place and secure the bitumen roof sections onto the top frame. Ensure the roof is properly aligned to provide maximum weather protection.
- இறுதி ஆய்வு: Double-check all screws and connections to ensure they are tight and secure. Verify the stability of the entire structure.

Image 1: Fully assembled WilTec Outdoor Cat Enclosure XXL. This image shows the complete structure of the cat enclosure, highlighting its wooden frame, wire mesh, and green bitumen roof.

படம் 2: உட்புறம் view of the cat enclosure showing multiple resting platforms. This image provides a clear view of the six internal platforms designed for cats to rest and observe.

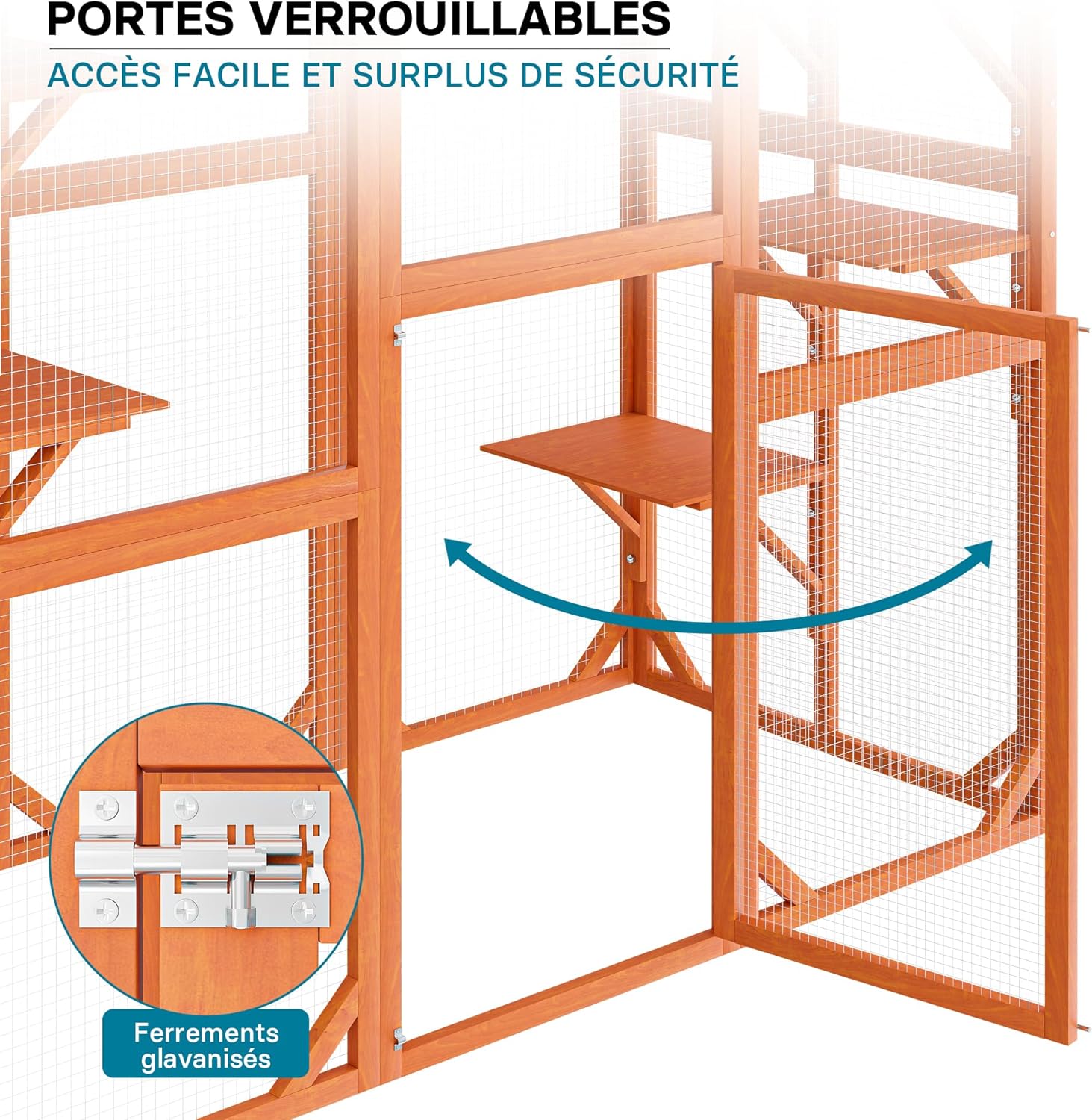

Image 3: Close-up of the lockable door and galvanized latch. This image details the secure locking mechanism on the enclosure's access door.
இயக்க வழிமுறைகள்
This enclosure provides a safe and stimulating outdoor environment for your cats.
- இடம்: Position the enclosure in a shaded or partially shaded area to protect your cats from direct sunlight during hot weather. Ensure it is on a stable, level surface.
- Introducing Cats: Allow your cats to explore the enclosure at their own pace. You may place familiar bedding, toys, or treats inside to encourage them.
- அணுகல்: Use the lockable door for easy access to your cats and for cleaning the enclosure. Always ensure the door is securely latched when cats are inside.
- மேற்பார்வை: While the enclosure is secure, it is recommended to supervise your cats, especially during their initial uses.
- Enrichment: Utilize the multiple resting platforms to provide varied vantage points and opportunities for climbing and relaxation. Consider adding additional cat-safe enrichment items.

Image 4: Cat enclosure in a garden with cats enjoying the space. This image illustrates the enclosure in an outdoor setting, with cats comfortably using the platforms.
பராமரிப்பு
Regular maintenance will extend the lifespan of your WilTec Cat Enclosure.
- சுத்தம்: Regularly clean the enclosure, including the platforms and mesh, using pet-safe cleaning solutions. Remove any debris or waste promptly.
- மர பராமரிப்பு: The fir wood is treated with a waterproof varnish. To maintain its weather resistance, periodically reapply a suitable non-toxic wood sealant or varnish, especially if the wood shows signs of wear or fading.
- கண்ணி ஆய்வு: Check the galvanized steel mesh for any signs of damage, rust, or sharp edges that could harm your pets. Repair or replace damaged sections immediately.
- கூரை ஆய்வு: Inspect the bitumen roof for tears, cracks, or lifting sections. Ensure it remains watertight to protect the interior from rain and snow.
- வன்பொருள் சோதனை: Periodically check all screws, bolts, hinges, and latches for tightness. Tighten any loose hardware to maintain structural integrity.

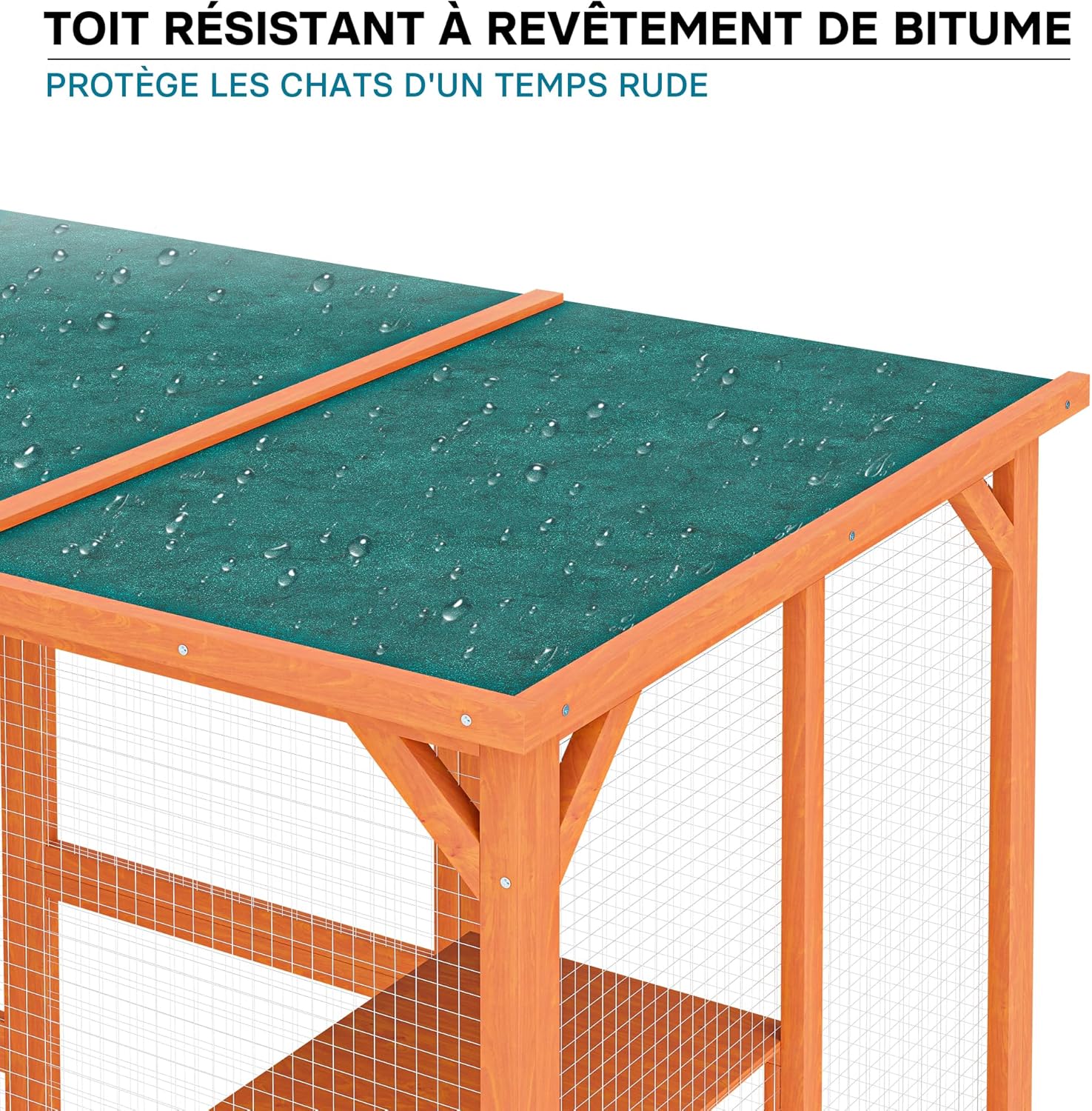

Image 5: Close-up of the bitumen roof showing water resistance. This image highlights the protective bitumen layer on the roof, designed to repel water.

Image 6: Fir wood logs and the cat enclosure, emphasizing material quality. This image visually represents the high-quality fir wood used in the construction of the enclosure.
சரிசெய்தல்
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| உறை நிலையற்றதாகவோ அல்லது தள்ளாடுவதாகவோ உணர்கிறது. | தளர்வான வன்பொருள்; சீரற்ற தரை. | Tighten all screws and bolts. Relocate the enclosure to a level surface or use shims to stabilize. |
| கதவு சரியாக மூடவோ அல்லது தாழ்ப்பாள் போடவோ இல்லை. | Misaligned hinges; bent latch; obstruction. | Check hinge alignment and adjust if necessary. Ensure the latch mechanism is clear of debris and not bent. |
| கூரையிலிருந்து நீர் கசிவு. | Damaged bitumen roof; improper installation. | Inspect the bitumen roof for tears or gaps. Seal any small cracks with appropriate roofing sealant. Ensure roof sections are correctly overlapped and secured. |
| Cats are not using the enclosure. | Unfamiliarity; lack of comfort items. | Place familiar bedding, toys, or treats inside. Allow cats to explore at their own pace. Ensure the enclosure is in a quiet, safe location. |
விவரக்குறிப்புகள்
- பிராண்ட்: வில்டெக்
- மாதிரி: XXL Cat Enclosure
- பொருள்: Fir wood, Bitumen, Galvanized steel
- நிறம்: பழுப்பு
- ஒட்டுமொத்த பரிமாணங்கள் (L x W x H): 180 செமீ x 88 செமீ x 169 செ.மீ
- வடிவம்: செவ்வக வடிவமானது
- Resting Platforms: 6 அலகுகள்
- பயன்பாடு: வெளிப்புற
- சட்டசபை தேவை: ஆம்
உத்தரவாதம் மற்றும் ஆதரவு
For warranty information, technical support, or to order replacement parts, please contact the seller or WilTec customer service directly. Please have your purchase receipt and product model information ready when contacting support.
