ViewSonic M1+ Portable LED Projector User Manual

அறிமுகம்

தி ViewSonic M1+ is an ultra-portable WVGA (854x480p) LED projector designed for convenient entertainment in various settings. This lightweight projector, weighing less than two pounds, is ideal for use in different rooms or for indoor/outdoor activities. It features an integrated smart stand that allows for 360-degree setup and also functions as a lens cover. The projector automatically powers on with full brightness when the lens is uncovered, providing instant entertainment. A safety auto-off feature powers down the projector if objects are detected too close to the lens. Dual Harman Kardon Bluetooth speakers deliver crisp and clear sound, and a short throw lens enables large image projection in small spaces. Versatile connectivity options include a MicroSD card slot, USB Type-A, and USB Type-C.

பெட்டியில் என்ன இருக்கிறது

Upon opening your ViewSonic M1+ package, you should find the following items:

• M1+ projector
• பவர் கார்ட்
• யூ.எஸ்.பி-சி கேபிள்
• ரிமோட்
• பயனர் கையேடு

படம்: தி ViewSonic M1+ projector and its accessories, including the power cable, USB-C cable, remote control, and QuickStart Guide, laid out next to the projector.

தயாரிப்பு முடிந்துவிட்டதுview

The M1+ projector is designed for versatility and ease of use, offering a range of features for an enhanced viewஅனுபவம்.

• அல்ட்ரா போர்ட்டபிள் வடிவமைப்பு: Compact and lightweight, making it easy to carry and set up anywhere.
• Integrated Smart Stand: Provides simple 360-degree setup and doubles as a lens cover.
• Dual Harman Kardon Bluetooth Speakers: Delivers premium audio quality for an immersive experience.
• உள்ளமைக்கப்பட்ட பேட்டரி: Offers up to 6 hours of power on full power mode, allowing for extended use without a power outlet.
• Cinema SuperColor+ Technology: Achieves 125% Rec.709 for vibrant and accurate cinematic colors.
• Auto-Focus and Vertical Keystone Correction: Ensures a perfectly proportioned picture from almost any angle.

படம்: தி ViewSonic M1+ projector is shown in a bedroom setting, projecting a large image onto a wall, highlighting its smart ultra-portable design for various uses.

படம்: தி ViewSonic M1+ projector is placed on a kitchen counter, projecting an image onto a wall, illustrating its adaptability for different lifestyles.

Image: A visual representation of the projector's battery life in various modes: Full Power Mode (up to 2.5 hours), Eco Mode (up to 3 hours), and Energy Saving Mode (up to 6 hours), with people enjoying content in different settings.

அமைவு

உங்கள் ViewSonic M1+ projector is quick and intuitive:

1. திறக்கவும்: பெட்டியிலிருந்து அனைத்து கூறுகளையும் கவனமாக அகற்றவும்.
2. நிலைப்படுத்தல்: Place the projector on a stable surface. The integrated smart stand allows for flexible positioning, including projecting onto ceilings or walls. Rotate the stand to achieve the desired projection angle.
3. பவர் ஆன்: Uncover the lens by rotating the smart stand. The projector will automatically power on.
4. ஃபோகஸ் மற்றும் கீஸ்டோன்: The M1+ features auto-focus and vertical keystone correction to ensure a clear and rectangular image. Adjust manually if needed via the on-screen menu or remote control.
5. இணைப்பு மூல: Connect your desired media source (e.g., laptop, smartphone, USB drive) using the appropriate port (HDMI, USB-C, USB-A, MicroSD).

இயங்குகிறது

தி ViewSonic M1+ offers various operating modes and features for a seamless user experience:

• பவர் ஆன்/ஆஃப்: The projector powers on automatically when the smart stand is opened and powers off when closed. You can also use the power button on the device or remote.
• வழிசெலுத்தல்: Use the directional buttons on the projector or remote control to navigate the on-screen menu.
• மூலத் தேர்வு: Select your input source (HDMI, USB-C, USB-A, MicroSD, or Wi-Fi) from the main menu.
• ஆடியோ: Utilize the built-in dual Harman Kardon Bluetooth speakers for audio. The projector can also function as a standalone Bluetooth speaker.
• பேட்டரி ஆயுள்: Manage power consumption by selecting different modes. The built-in battery provides up to 6 hours of power in energy-saving mode.
• ஸ்மார்ட் அம்சங்கள்: Connect to Wi-Fi to stream content directly from supported apps or mirror your mobile device screen.

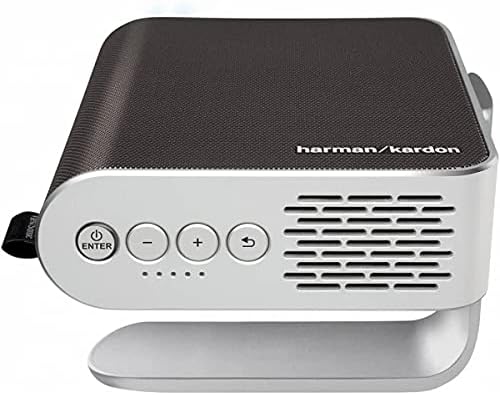

படம்: ஒரு நெருக்கமான படம் view of the projector's top panel, showing the power button, volume controls, and navigation buttons for easy operation.

இணைப்பு

The M1+ offers a wide range of connectivity options to suit your needs:

• HDMI 1.4 (HDCP1.4): Connect laptops, gaming consoles, Blu-ray players, and other HDMI-enabled devices.
• USB 3.1 Type C: For direct streaming from compatible devices like smartphones and tablets, and for charging.
• USB 2.0 வகை A: Connect USB flash drives for media playback or to power external devices.
• மைக்ரோ எஸ்டி கார்டு ஸ்லாட்: Insert a MicroSD card to play media fileப்ரொஜெக்டரில் இருந்து நேரடியாக.
• வைஃபை: Built-in Wi-Fi allows for wireless screen mirroring from compatible devices and access to smart TV features.
• புளூடூத்: Connect to external Bluetooth speakers or use the projector's built-in Harman Kardon speakers as a standalone Bluetooth audio device.

படம்: ஒரு விரிவான view இன் ViewSonic M1+ projector's connectivity panel, showing labeled ports for MicroSD, DC 19V power, USB-C, HDMI, Audio Out, and USB Type A.

பராமரிப்பு

உங்கள் நீண்ட ஆயுளையும் உகந்த செயல்திறனையும் உறுதி செய்ய ViewSonic M1+ projector, follow these maintenance guidelines:

• லென்ஸ் சுத்தம்: ஒளியியல் மேற்பரப்புகளுக்காக வடிவமைக்கப்பட்ட மென்மையான, பஞ்சு இல்லாத துணியால் ப்ரொஜெக்டர் லென்ஸை மெதுவாக சுத்தம் செய்யவும். சிராய்ப்பு பொருட்கள் அல்லது கடுமையான இரசாயனங்கள் தவிர்க்கவும்.
• காற்றோட்டம்: Ensure the projector's ventilation openings are clear and unobstructed to prevent overheating. Do not place the projector on soft surfaces that may block airflow.
• சேமிப்பு: When not in use, store the projector in a cool, dry place. Use the provided carrying case for protection during transport or storage.
• Lamp வாழ்க்கை: The M1+ utilizes an LED light source with an impressive operational life of over 30,000 hours, significantly reducing the need for lamp மாற்று.
• பேட்டரி பராமரிப்பு: For optimal battery health, avoid fully discharging the battery frequently. If storing for an extended period, charge the battery to about 50% capacity.

சரிசெய்தல்

உங்கள் சாதனத்தில் ஏதேனும் சிக்கல்கள் ஏற்பட்டால் ViewSonic M1+ projector, try the following basic troubleshooting steps:

• உருவம் இல்லை: Check all cable connections (HDMI, USB-C). Ensure the correct input source is selected in the projector's menu. Verify the lens cover is fully open.
• மங்கலான படம்: The projector has auto-focus and keystone correction. If the image is still blurry, try moving the projector closer or further from the screen, or manually adjust focus if available in the settings.
• ஒலி இல்லை: Ensure the volume is turned up on both the projector and the connected source device. Check if the projector is connected to external Bluetooth speakers and disconnect if you wish to use the internal speakers.
• சக்தி சிக்கல்கள்: If the projector does not turn on, ensure it is charged or connected to the power adapter. If it powers off unexpectedly, check for overheating (ensure vents are clear) or low battery.
• ரிமோட் வேலை செய்யவில்லை: Check the batteries in the remote control. Ensure there are no obstructions between the remote and the projector.

For more detailed troubleshooting or persistent issues, please refer to the full user manual or visit the official ViewSonic support webதளம்.

விவரக்குறிப்புகள்

Image: A diagram illustrating the physical dimensions of the ViewSonic M1+ projector, showing its compact size.

உத்தரவாதம் மற்றும் ஆதரவு

For detailed warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official Viewசோனிக் webதளம் தி website provides comprehensive resources, including FAQs, driver downloads, and contact information for technical assistance.
