அறிமுகம்
This manual provides essential information for the safe and efficient use of your Anker PowerPort Strip 3. Please read these instructions carefully before using the product and retain them for future reference.
Image: The Anker PowerPort Strip 3, a white power strip featuring three standard AC outlets and three blue USB-A ports, with its 5-foot extension cord and flat plug.
தயாரிப்பு முடிந்துவிட்டதுview
The Anker PowerPort Strip 3 is designed to expand your power options, offering multiple outlets and USB charging ports in a compact form factor. It includes:
- 3 AC Outlets (1250W at 125V / 10A)
- 3 PowerIQ USB-A Charging Ports (18W total max output, 12W max per port)
- 5-foot long extension cord with a flat plug
- Integrated safety features including surge and overload protection
படம்: மேலிருந்து கீழ் நோக்கி view of the Anker PowerPort Strip 3, highlighting its three AC outlets and three USB ports, with text indicating "6-in-1" functionality.
காணொளி: ஒரு சுருக்கமான தயாரிப்புview demonstrating the features and compact design of the Anker PowerPort Strip 3.
அமைவு
- இடம்: Position the power strip on a flat, stable surface or mount it securely if desired. Ensure it is away from water, heat sources, and flammable materials.
- வால் அவுட்லெட்டுடன் இணைக்கவும்: Plug the power strip's flat plug into a standard 125V AC wall outlet. The flat design minimizes obstruction, allowing furniture to be placed closer to the wall.
- பவர் ஆன்: Press the power switch located on the side of the power strip to turn it on. A blue indicator light will illuminate to confirm power is active.

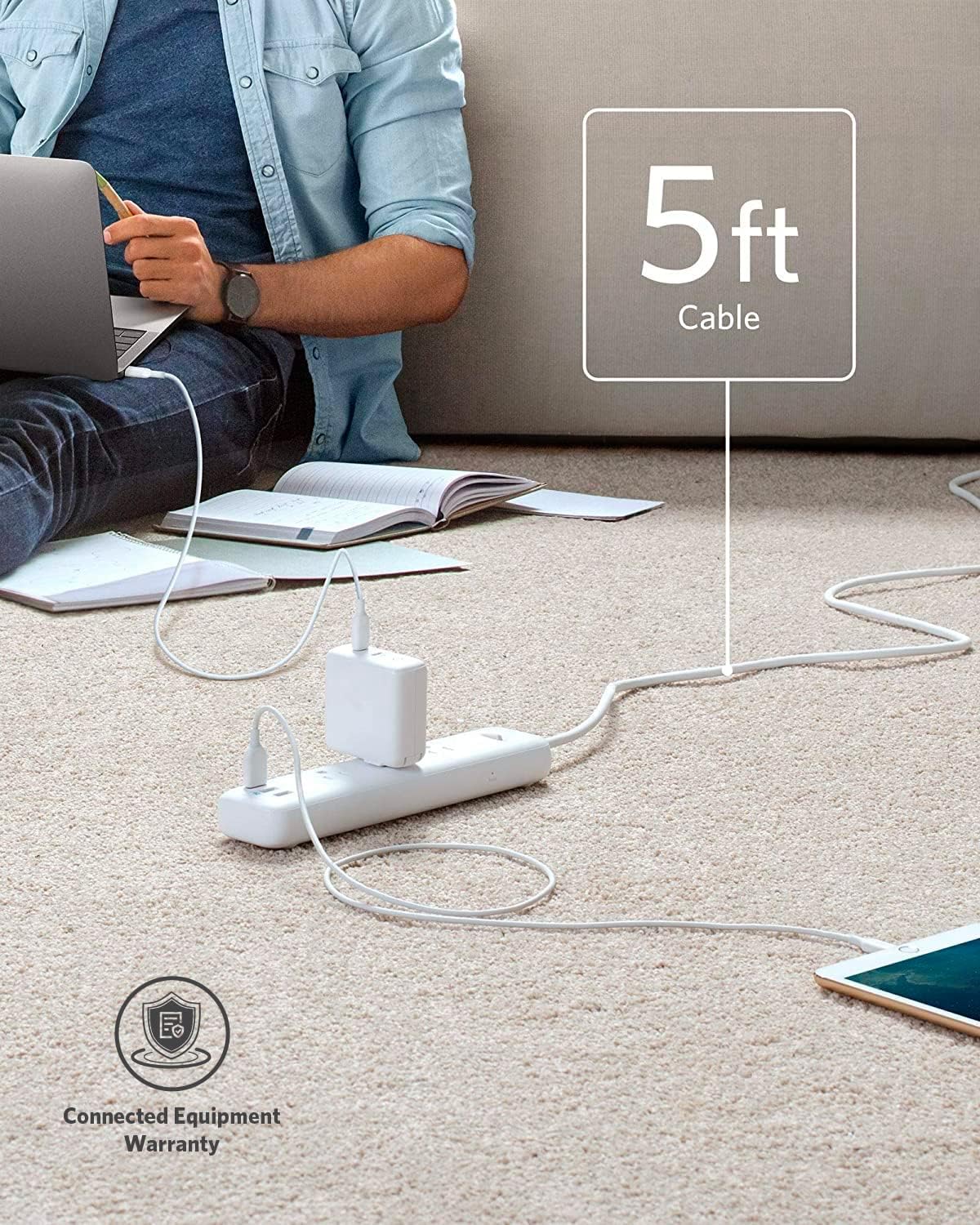

Image: The Anker PowerPort Strip 3 positioned on a carpeted floor, illustrating the length of its 5-foot cable and its connection to a wall outlet.
இயக்க வழிமுறைகள்
ஏசி அவுட்லெட்டுகளைப் பயன்படுத்துதல்
Plug your devices directly into the three AC outlets. The outlets are spaced to accommodate larger power adapters without blocking adjacent ports.
Image: A close-up of the Anker PowerPort Strip 3 demonstrating its spacious outlet layout, allowing multiple large power adapters to be plugged in simultaneously.
USB சார்ஜிங் போர்ட்களைப் பயன்படுத்துதல்
Connect your USB-powered devices (e.g., smartphones, tablets, smartwatches) to the three PowerIQ USB-A ports. PowerIQ technology automatically detects your device and delivers an optimized, high-speed charge. Note that this power strip does not support Qualcomm Quick Charge.
Image: An illustration comparing the charging speed of the Anker PowerPort Strip 3 with a standard charger, showing the PowerPort Strip 3 charging an iPhone XS Max faster.
பாதுகாப்பு அம்சங்கள்
Your Anker PowerPort Strip 3 is equipped with a 7-point safety system to protect your devices and ensure safe operation:
- எழுச்சி பாதுகாப்பு: Guards against sudden power spikes.
- அதிக சுமை பாதுகாப்பு: அதிகப்படியான மின்னோட்டத்தால் ஏற்படும் சேதத்தைத் தடுக்கிறது.
- Fire-Retardant Casing: Constructed with materials designed to resist fire.
- Child-Friendly Safety Shutters: Prevents foreign objects from being inserted into AC outlets.
- அதிக வெப்பநிலை பாதுகாப்பு: Monitors and regulates internal temperature.
- Grounded Protection: Ensures a safe electrical path.
- பாதுகாப்பு சுவிட்ச்: Manual control for power on/off.
Image: A visual representation of the Anker PowerPort Strip 3's internal components and its 7-point safety system, including short-circuit, grounded, over-temperature, overload, fire-resistance, internal safety shutters, and safety switch protections.
இணக்கத்தன்மை
The PowerPort Strip 3 is compatible with a wide range of devices, including but not limited to:
- iPhone XS / XS Max / XR / X / 8 / 8 Plus / 7 / 7 Plus / 6S / 6S Plus / 6 / 5S / 5
- iPad Pro / Air series / mini series
- Samsung Galaxy S10+ / S10 / S10e / S9+ / S9 / S8+ / S8 / S7 edge / S7 / S6+ / S6 / S5
- AirPods, Apple Watch, GoPro, other smartwatches, USB speakers, and more.
விவரக்குறிப்புகள்
| தயாரிப்பு பரிமாணங்கள் | 9.06 x 2.17 x 1.18 அங்குலம் |
| பொருளின் எடை | 14.4 அவுன்ஸ் |
| பொருள் மாதிரி எண் | A9131 |
| பிராண்ட் | அங்கர் |
| மொத்த மின் நிலையங்கள் | 3 AC Outlets, 3 USB-A Ports |
| ஏசி பவர் வெளியீடு | 1250W at 125V / 10A |
| USB-A பவர் அவுட்புட் | 18W total for 3 USB-A ports (max 12W per port) |
| தண்டு நீளம் | 5 அடி |
| தொகுதிtage | 100-240V (international support) |
| சிறப்பு அம்சம் | USB உடன் பவர் ஸ்ட்ரிப், அனைத்து பிளக் வகைகளுக்கும் விசாலமான வடிவமைப்பு |
சரிசெய்தல்
- சக்தி இல்லை: Ensure the power strip is securely plugged into a functioning wall outlet and the power switch is in the "on" position. Check if the wall outlet itself is receiving power.
- Devices Not Charging via USB: Verify that the USB cables are properly connected to both the device and the power strip. Ensure the device is compatible with USB charging. Note that total USB output is 18W, and individual ports have a 12W max.
- Surge Protection Indicator Off: If the surge protection indicator light is off, it may mean the surge protection has been compromised after a significant power surge. The power strip may still function as an extension cord, but its surge protection capabilities are no longer active. Consider replacing the unit.
- அதிக சுமை: If too many high-power devices are connected, the overload protection may trip, cutting power. Unplug some devices and reset the power strip by cycling the power switch.
உத்தரவாதம் மற்றும் ஆதரவு
This Anker PowerPort Strip 3 comes with a worry-free 18-month warranty. Additionally, it includes a lifetime* $50,000 connected equipment warranty. For technical support or warranty claims, please contact Anker customer service.
*For the purpose of this connected equipment warranty, "lifetime" is defined as the lifetime of the product.
