1. அறிமுகம்
This user manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your JTECH IQ Base Paging System with 10 Coaster Pagers. Please read this manual thoroughly before operating the system to ensure proper functionality and longevity of the product.
The JTECH IQ Base Paging System is designed to enhance communication and efficiency in various environments, such as restaurants, medical offices, and retail stores, by allowing staff to discreetly page guests or customers.
2. கணினி கூறுகள்
Your JTECH IQ Base Paging System package includes the following main components:
- IQ Base Transmitter: The central unit for sending pages.
- Coaster Pagers (10 units): Individual pagers for guests or customers.
- சார்ஜிங் பேஸ்: Used to stack and charge the coaster pagers.
- பவர் அடாப்டர்: For connecting the IQ Base Transmitter and Charging Base to power.
படம் 2.1: The JTECH IQ Base Paging System, showing the IQ Base Transmitter on the left and a stack of 10 Coaster Pagers on their charging base on the right. The pagers display red numbers indicating their ID.
படம் 2.2: ஒரு நெருக்கமான காட்சி view of the JTECH IQ Base Transmitter's keypad and display. A hand is shown pressing the '7' button, demonstrating user interaction with the numeric keypad and function buttons like SETUP, CANCEL, ENTER, MENU, and SEND.
படம் 2.3: A single JTECH GuestCall Coaster Pager, viewed from the top. The pager is black and circular, featuring the JTECH logo and "GuestCall Coaster Guest Paging" text, along with the website "WWW.JTECH.com".

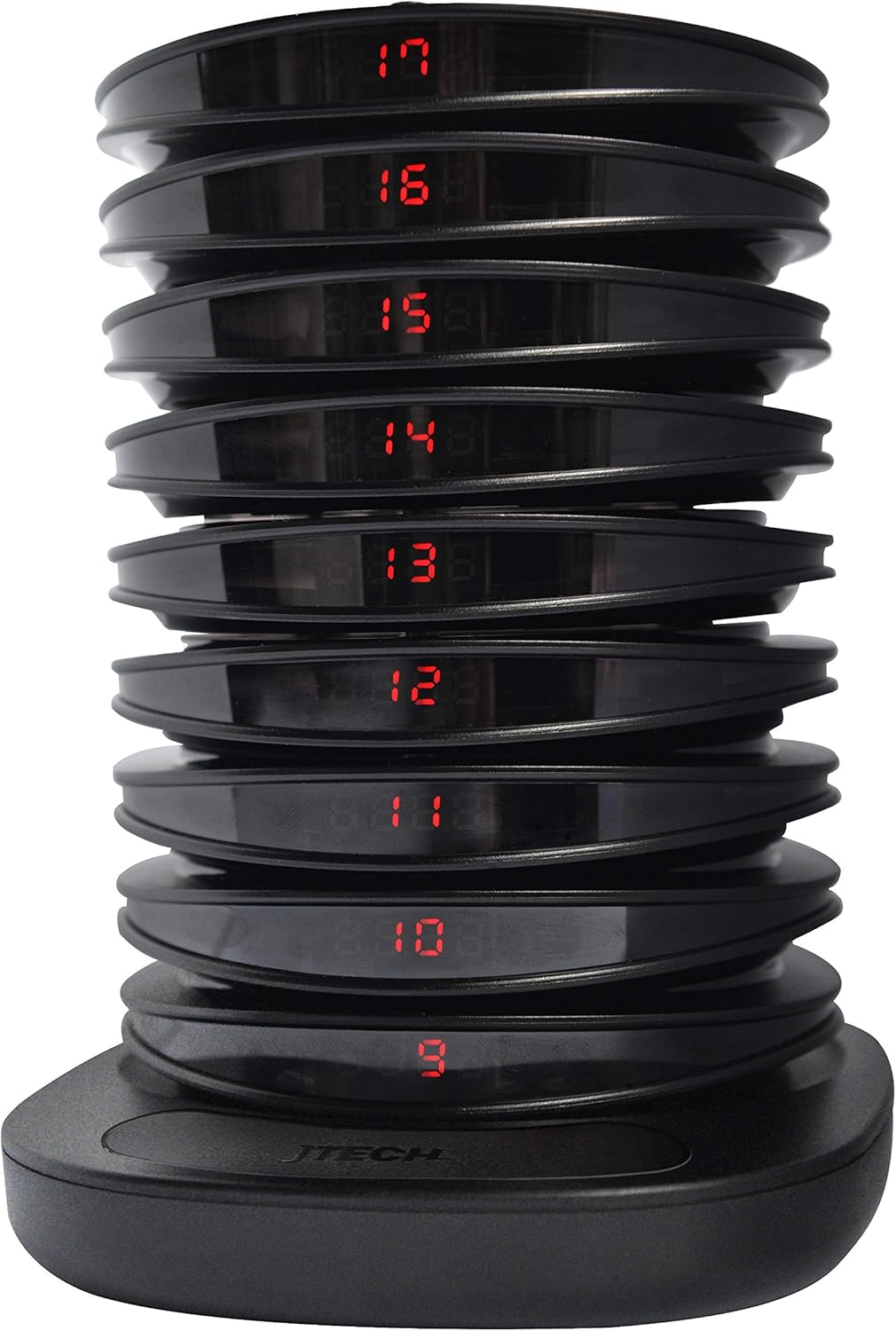

படம் 2.4: A stack of JTECH Coaster Pagers resting on their charging base. Each pager displays a red numerical ID, ranging from 9 to 17, indicating their charging status and readiness for use.
3. அமைவு வழிமுறைகள்
Follow these steps to set up your JTECH IQ Base Paging System:
- கூறுகளைத் திறக்கவும்: Carefully remove all components from the packaging. Ensure all items listed in Section 2 are present.
- Connect Power to IQ Base Transmitter:
- Locate the power input port on the back of the IQ Base Transmitter.
- Connect the provided power adapter to the transmitter and then plug it into a standard electrical outlet.
- The transmitter display should illuminate, indicating it is powered on.
- Connect Power to Charging Base:
- Connect the power adapter to the charging base and plug it into a standard electrical outlet.
- Ensure the charging base is placed on a stable, flat surface.
- Place Pagers on Charging Base:
- Stack the 10 Coaster Pagers onto the charging base. Ensure each pager makes proper contact with the charging pins.
- The pagers should show a charging indicator (e.g., a flashing light or specific number display) when correctly placed. Allow pagers to fully charge before first use (approximately 4-6 hours).
- Antenna Installation (if applicable):
- If your IQ Base Transmitter came with an external antenna, screw it firmly into the antenna port on the back or top of the unit.
- Position the antenna vertically for optimal signal transmission.
4. இயக்க வழிமுறைகள்
The JTECH IQ Base Paging System is designed for straightforward operation. Here are the basic steps for sending pages:
- பவர் ஆன்: Ensure both the IQ Base Transmitter and the Charging Base are powered on and connected.
- Paging a Single Pager:
- On the IQ Base Transmitter's keypad, enter the pager number you wish to page (e.g., "01" for pager 1, "10" for pager 10).
- அழுத்தவும் அனுப்பு பொத்தான்.
- The selected pager will vibrate, flash, and/or beep according to its programmed settings.
- Paging Multiple Pagers (Group Page):
- Some systems allow group paging. Consult your system's specific programming for group codes.
- உள்ளிடவும் குழு குறியீடு (if applicable) on the keypad.
- அழுத்தவும் அனுப்பு பொத்தான்.
- All pagers assigned to that group will activate.
- Canceling a Page:
- If a pager is actively paging and you wish to stop it from the base, press the ரத்துசெய் button on the IQ Base Transmitter. This typically stops all active pages.
- Alternatively, returning a pager to the charging base will usually stop its alert.
- காட்சியைப் புரிந்துகொள்வது:
- The IQ Base Transmitter's display provides information such as the current time, pager numbers being entered, and system status messages.
- Refer to the specific display icons and messages in your system's detailed programming guide for advanced features.
5. பராமரிப்பு
Proper maintenance ensures the longevity and reliable performance of your JTECH IQ Base Paging System.
- சுத்தம்:
- Wipe the IQ Base Transmitter, Coaster Pagers, and Charging Base with a soft, damp துணி.
- Use a mild, non-abrasive cleaning solution if necessary.
- வேண்டாம் immerse any part of the system in water or use harsh chemicals, as this can damage the electronics.
- Ensure all components are dry before reconnecting power.
- Battery Care (Coaster Pagers):
- Always return pagers to the charging base when not in use to ensure they are fully charged and ready for the next use.
- Avoid completely draining the pager batteries frequently, as this can reduce their overall lifespan.
- சுற்றுச்சூழல் நிலைமைகள்:
- Operate the system in a dry environment, away from excessive heat, cold, or direct sunlight.
- Avoid placing the system near strong electromagnetic fields, which could interfere with signal transmission.
6. சரிசெய்தல்
If you encounter issues with your JTECH IQ Base Paging System, refer to the following common problems and solutions:
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| IQ Base Transmitter not powering on. | Power adapter disconnected or faulty outlet. | Check power adapter connection. Try a different electrical outlet. Ensure the adapter is the correct one supplied with the system. |
| Pager not responding to page. | Pager out of range, battery low/dead, or incorrect pager number entered. | Ensure pager is within operating range. Place pager on charging base to charge. Verify the correct pager number was entered on the transmitter. |
| Pagers not charging. | Charging base not powered, pagers not making contact, or dirty charging pins. | Check power connection to charging base. Ensure pagers are correctly seated. Clean charging pins on both pagers and base with a dry cloth. |
| Reduced paging range. | Obstructions, interference, or antenna not properly positioned. | Ensure the IQ Base Transmitter is placed in a central location with minimal obstructions. Check antenna connection and position. Avoid placing near large metal objects or other wireless devices. |
If the problem persists after attempting these solutions, please contact JTECH customer support for further assistance.
7. விவரக்குறிப்புகள்
Key specifications for the JTECH IQ Base Paging System:
- உற்பத்தியாளர்: JTECH
- மாதிரி: IQ Base Paging System
- ASIN: B085L7C2GW
- முதல் தேதி கிடைக்கும்: மார்ச் 6, 2020
- பேஜர் திறன்: Supports up to 10 Coaster Pagers (expandable with additional pagers, sold separately).
- ஆற்றல் உள்ளீடு: AC Adapter (specific voltage/current details typically on adapter label).
- இயக்க அதிர்வெண்: (Specific frequency not provided, typically in the UHF band for paging systems)
- வரம்பு: (Varies based on environment and obstructions)
குறிப்பு: Specific technical details may vary. Refer to the product packaging or contact JTECH for precise specifications.
8. உத்தரவாதம் மற்றும் ஆதரவு
JTECH products are designed for reliability and performance. For information regarding product warranty, technical support, or service, please refer to the warranty card included with your purchase or visit the official JTECH webதளம்.
For direct assistance, you may contact JTECH customer support:
- Webதளம்: www.jtech.com
- தொடர்பு தகவல்: பார்க்கவும் webதொலைபேசி எண்கள் அல்லது மின்னஞ்சல் ஆதரவுக்கான தளம்.
தயவுசெய்து உங்கள் தயாரிப்பு மாதிரியை வைத்திருங்கள் மற்றும் ASIN (B085L7C2GW) ready when contacting support.
