Ideal Standard Ceratherm T50 Surface-Mounted Shower System (Model A7565AA) Instruction Manual

1. தயாரிப்பு முடிந்துவிட்டதுview

The Ideal Standard Ceratherm T50 is a surface-mounted thermostatic shower system designed for reliable performance and user comfort. This system features advanced temperature control, safety mechanisms, and water-saving functions, all within a durable chrome-plated brass construction.

முக்கிய அம்சங்கள் அடங்கும்:

• வெப்ப நிலை வெப்பநிலை கட்டுப்பாடு: Maintains a constant water temperature, even with fluctuations in water pressure or hot water supply.
• குளிர்ச்சியான உடல் செயல்பாடு: The tap body remains cool to the touch, preventing scalding.
• ஒருங்கிணைந்த சூடான நீர் வெப்பநிலை வரம்பு: A child-safe feature with a temperature lock at 40 degrees Celsius.
• ஃபிர்மாஃப்ளோ கார்ட்ரிட்ஜ்: High-performance ceramic cartridge tested for over 500,000 cycles, ensuring extended durability.
• ECO செயல்பாடு: Water-saving position without compromising comfort.
• லைம்ஸ்கேல் எதிர்ப்பு செயல்பாடு: Designed to reduce limescale buildup for easier maintenance.

Figure 1: Complete Ideal Standard Ceratherm T50 Shower System.

2. அமைவு மற்றும் நிறுவல்

The Ceratherm T50 shower system is designed for wall, surface-mounted installation. It includes all necessary fixings for a secure setup. Professional installation is recommended to ensure proper function and adherence to local plumbing codes.

2.1 மவுண்டிங் தேவைகள்

• மவுண்டிங் வகை: Surface-mounted with S-connectors.
• இணைப்புகள்: Shower hose connection dimensions are 1/2 inch.
• திருத்தங்கள்: All required mounting materials are included.

2.2 Dimensions and Technical Drawing

Refer to the technical drawing for precise measurements and installation details. Ensure adequate space and proper water supply connections before installation.

Figure 2: Technical drawing with key dimensions for installation.

3. இயக்க வழிமுறைகள்

The Ceratherm T50 system features a two-handle design for intuitive control of water temperature and flow.

3.1 வெப்பநிலை கட்டுப்பாடு

The left handle controls the water temperature. The thermostatic cartridge ensures a consistent temperature. A temperature lock is set at 40 degrees Celsius for safety, indicated by a marking on the handle. To exceed 40 degrees, press the safety button on the handle and rotate it further.

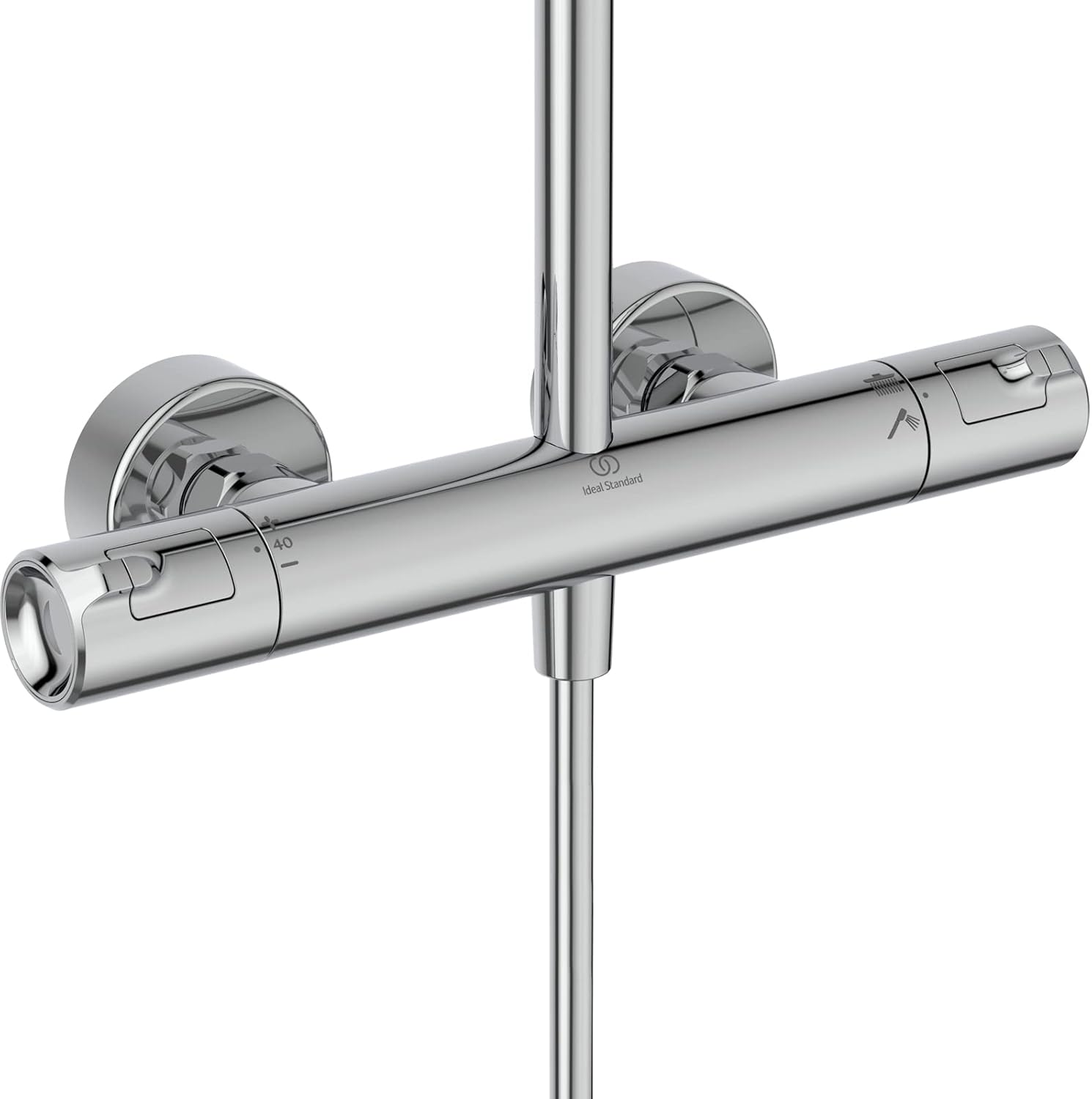

Figure 3: Thermostatic mixer with temperature control handle.

3.2 Flow and Diverter Control

The right handle controls the water flow and acts as a changeover unit to switch between the overhead shower and the hand shower. Rotate the handle to adjust flow and engage the diverter function.

3.3 Shower Functions

• மேல்நிலை மழை: Features a single 'rain' jet type. The volume regulator limits flow to 12 liters per minute. The shower head is swivelled for adjustable direction.

Figure 4: Overhead shower head with rain function.

• கை மழை: A round hand shower with a flow rate of 8 liters per minute. It includes an adjustable shower holder with a push button for height adjustment and is swivelled for directional control.

Figure 5: Hand shower unit.

4. பராமரிப்பு

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Ceratherm T50 shower system.

4.1 குரோம் பூச்சு சுத்தம் செய்தல்

The chrome-plated surface is designed for easy cleaning (EasyClean). Use a soft cloth and a mild, non-abrasive cleaner specifically designed for chrome or bathroom fixtures. Avoid harsh chemicals, abrasive pads, or acidic cleaners, as these can damage the finish. Rinse thoroughly with water and dry with a soft cloth to prevent water spots.

4.2 Anti-Limescale Function

The shower system incorporates an anti-limescale function. Periodically wipe the nozzles of the shower heads to dislodge any mineral deposits. For stubborn buildup, a solution of white vinegar and water can be used, applied with a soft cloth, followed by thorough rinsing.

4.3 Cartridge Longevity

The FirmaFlow ceramic cartridge is designed for exceptional durability (500,000 cycles). No routine user maintenance is required for the cartridge itself. In case of issues with temperature or flow control, consult a qualified plumber.

5. சரிசெய்தல்

This section addresses common issues you might encounter with your shower system.

5.1 Inconsistent Water Temperature

• Check Water Supply: Ensure both hot and cold water supplies to the shower are fully open and have adequate pressure.
• Thermostatic Cartridge: While designed for stability, extreme fluctuations in household water pressure or supply temperature might temporarily affect performance. If the issue persists, the thermostatic cartridge may require professional inspection or calibration.
• வெப்பநிலை பூட்டு: Ensure the 40-degree temperature lock is not engaged if you desire hotter water.

5.2 குறைந்த நீர் ஓட்டம்

• Check Water Supply: Verify that the main water supply valves are fully open.
• Limescale Buildup: Despite the anti-limescale function, mineral deposits can accumulate over time. Clean the nozzles of both shower heads as described in the Maintenance section.
• Hose Kinks: ஷவர் குழாய் வளைந்து அல்லது அடைக்கப்படாமல் இருப்பதை உறுதி செய்யவும்.
• Internal Obstruction: If flow remains low after checking external factors, there might be an internal obstruction or an issue with the flow regulator, requiring professional service.

5.3 கசிவுகள்

• இணைப்பு புள்ளிகள்: Check all visible connection points for tightness. Do not overtighten.
• முத்திரைகள்/கேஸ்கட்கள்: Over time, seals and gaskets can wear out. If a leak persists, professional inspection and replacement of seals may be necessary.

6. விவரக்குறிப்புகள்

7. உத்தரவாதத் தகவல்

For specific warranty terms and conditions applicable to your Ideal Standard Ceratherm T50 Shower System, please refer to the documentation provided at the time of purchase or contact Ideal Standard directly. Warranty coverage typically addresses manufacturing defects and material faults under normal use.

8. ஆதரவு

Should you require further assistance, have questions regarding installation, operation, or maintenance, or need to report a product issue, please contact Ideal Standard customer service. Contact details can typically be found on the official Ideal Standard webதளத்தில் அல்லது உங்கள் கொள்முதல் ஆவணத்தில்.

When contacting support, please have your product model number (A7565AA) and date of purchase readily available.
