SIGMA Buster RL150 பின்புற விளக்கு அறிவுறுத்தல் கையேடு

அறிமுகம்

This manual provides essential information for the proper setup, operation, and maintenance of your SIGMA Buster RL150 Rearlight. Please read these instructions carefully before use to ensure optimal performance and safety.

Image: The SIGMA Buster RL150 Rearlight, a compact and bright bicycle taillight.

தொகுப்பு உள்ளடக்கங்கள்

தொகுப்பில் அனைத்து பொருட்களும் உள்ளதா என சரிபார்க்கவும்:

• SIGMA Buster RL150 Rearlight
• சிலிகான் மவுண்டிங் ஸ்ட்ராப்
• USB-C சார்ஜிங் கேபிள்
• அறிவுறுத்தல் கையேடு (இந்த ஆவணம்)

Image: Contents of the SIGMA Buster RL150 package, including the light, mounting strap, and USB-C cable.

அமைவு

1. சாதனத்தை சார்ஜ் செய்தல்

Before first use, fully charge the SIGMA Buster RL150. The device uses a USB-C port for charging.

1. சாதனத்தில் USB-C சார்ஜிங் போர்ட்டைக் கண்டறியவும்.
2. Connect the provided USB-C cable to the device and to a compatible USB power source (e.g., computer, USB wall adapter).
3. The charging indicator light will show the charging status. Refer to the "Indicators" section for details.
4. முழுமையாக சார்ஜ் ஆனதும், கேபிளைத் துண்டிக்கவும்.

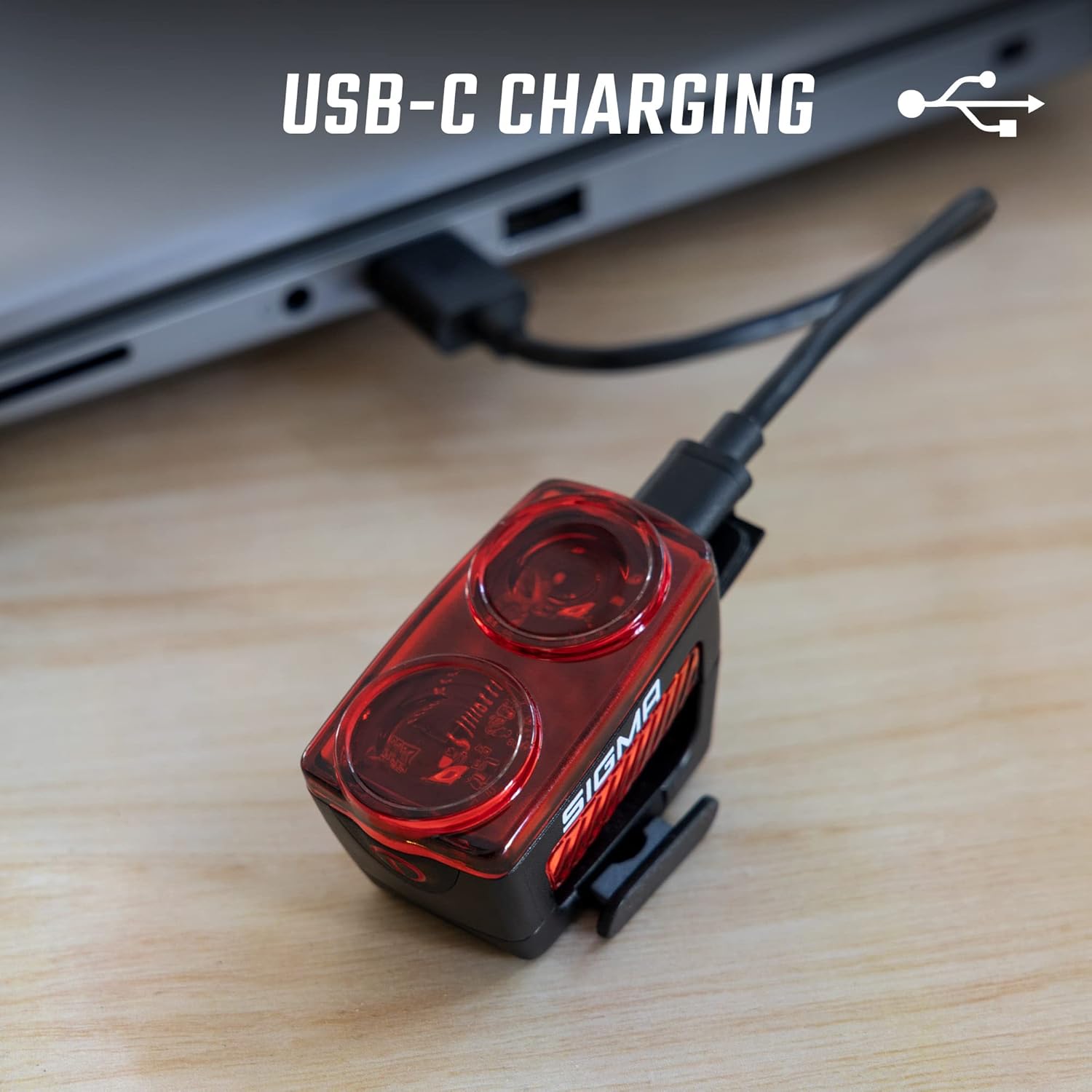

Image: The SIGMA Buster RL150 connected to a laptop via its USB-C charging cable.

2. Mounting the Rearlight

The SIGMA Buster RL150 features tool-free mounting using a silicone strap, suitable for seatposts up to 35mm in diameter.

1. Position the rearlight on the back of your bicycle's seatpost.
2. Wrap the silicone strap around the seatpost.
3. Securely hook the strap into the designated slot on the rearlight.
4. Ensure the light is firmly attached and facing directly backward for optimal visibility.

Image: Hands demonstrating the tool-free mounting of the SIGMA Buster RL150 onto a bicycle seatpost using the silicone strap.

இயக்க வழிமுறைகள்

The SIGMA Buster RL150 is operated via a single button and offers five distinct light modes, including a brake light function.

பவர் ஆன்/ஆஃப்

• To turn on: Press and hold the power button for approximately 1 second.
• To turn off: Press and hold the power button for approximately 1 second.

ஒளி முறைகளை மாற்றுதல்

Once the light is on, short press the power button to cycle through the available modes:

• உயர் பயன்முறை: Provides maximum luminosity (up to 150 lumens). Run time: up to 4 hours.
• குறைந்த பயன்முறை: Energy-saving mode (up to 5 lumens). Run time: up to 20 hours.
• டே ஃப்ளாஷ்: High-visibility flashing mode (up to 150 lumens). Run time: up to 6 hours.
• இரவு நேர மின்னல்: Flashing mode for nighttime (up to 25 lumens). Run time: up to 7 hours.
• Eco Flash: Extended run time flashing mode (up to 5 lumens). Run time: up to 20 hours.

Image: Diagram illustrating the five light modes of the SIGMA Buster RL150 with their respective lumen outputs and run times.

Brake Light Function

The integrated acceleration sensor automatically activates a brighter light output for approximately three seconds when braking, enhancing safety.

Image: Comparison showing the SIGMA Buster RL150 in steady mode versus its high-intensity brake light mode.

நினைவக முறை

The rearlight features a memory function that recalls the last used light mode when the device is turned back on.

பராமரிப்பு

சுத்தம் செய்தல்

Clean the rearlight regularly with a soft, damp cloth. Do not use harsh chemicals or abrasive materials, as these may damage the casing அல்லது லென்ஸ்.

நீர் எதிர்ப்பு

The SIGMA Buster RL150 has an International Protection Rating of IPX6, meaning it is protected against powerful water jets. It is suitable for use in rainy conditions but should not be submerged in water.

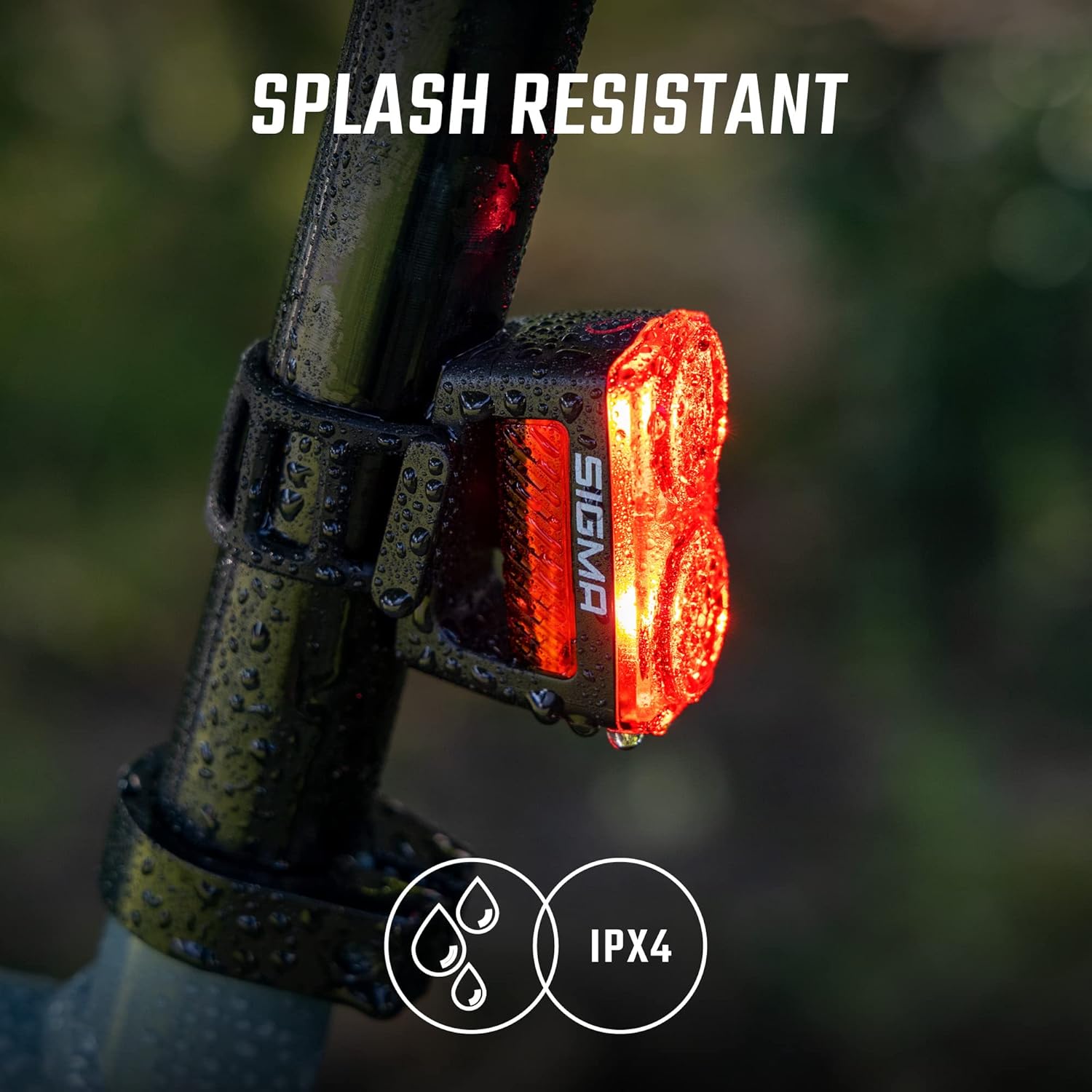

Image: The SIGMA Buster RL150 mounted on a bike seatpost, showing water droplets, indicating its splash resistance.

சேமிப்பு

When storing the device for extended periods, ensure it is fully charged and store it in a cool, dry place. Recharge every 3-6 months to maintain battery health.

சரிசெய்தல்

• விளக்கு இயக்கப்படவில்லை: Ensure the battery is charged. Press and hold the power button for the required duration (approx. 1 second).
• Light does not charge: Verify the USB-C cable is properly connected to both the light and the power source. Try a different USB-C cable or power source.
• Light modes are not changing: Short press the power button to cycle through modes. If unresponsive, try turning the device off and on again.

விவரக்குறிப்புகள்

உத்தரவாதம் மற்றும் ஆதரவு

For warranty information and customer support, please refer to the official Sigma Sport webஉங்கள் உள்ளூர் வியாபாரியைத் தொடர்பு கொள்ளவும். உத்தரவாதக் கோரிக்கைகளுக்கு உங்கள் வாங்கியதற்கான ஆதாரத்தை வைத்திருங்கள்.

மேலும் உதவிக்கு, இங்கு செல்க: www.sigma-sport.com
