அறிமுகம்
Thank you for choosing the Ideal Standard i.life Soft-Close Toilet Seat Hinge Clutch Assembly. This genuine Ideal Standard replacement part (Model TV90167) is designed to restore the soft-close functionality of your i.life A (T453101) or i.life B (T468301) toilet seat. Manufactured with durable, quality materials, this clutch assembly ensures a smooth and controlled closing action for your toilet seat, preventing slamming and extending product life.
Please read these instructions carefully before installation to ensure correct fitting and optimal performance.

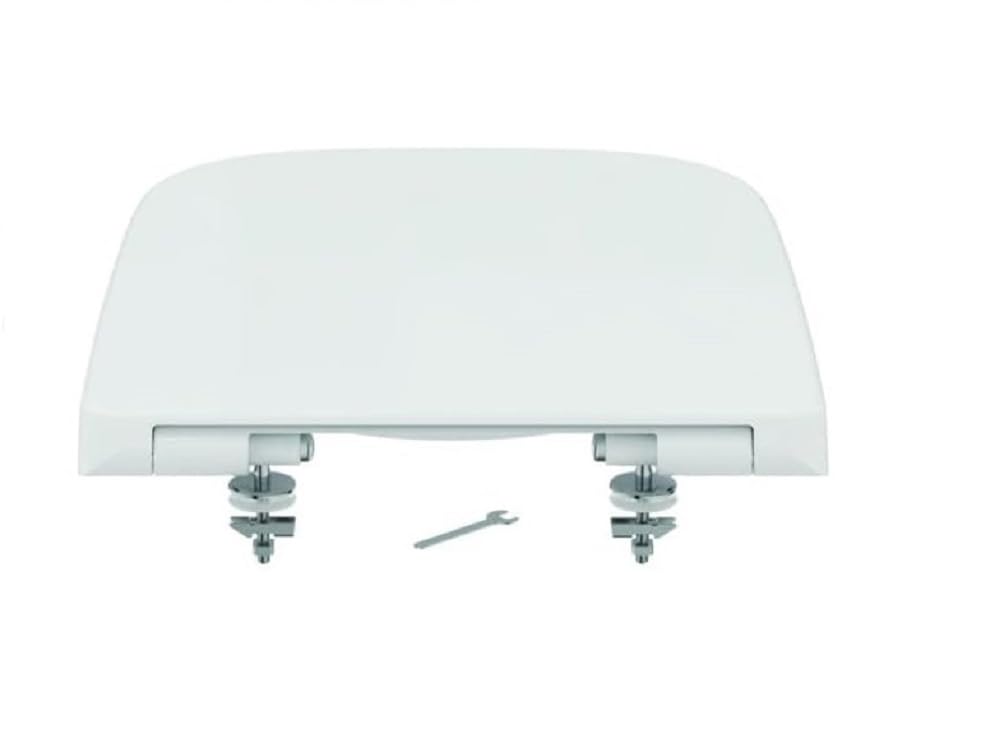

Image 1: Ideal Standard i.life Soft-Close Toilet Seat Hinge Clutch Assembly (Model TV90167)
பாதுகாப்பு தகவல்
- Always ensure the toilet area is clean and dry before beginning installation.
- Use appropriate tools and wear protective eyewear if necessary.
- எந்தப் படியைப் பற்றியும் உங்களுக்குத் தெரியாவிட்டால், தகுதிவாய்ந்த பிளம்பரை அணுகவும்.
- சிறிய பகுதிகளை குழந்தைகளிடமிருந்து விலக்கி வைக்கவும்.
அமைவு மற்றும் நிறுவல்
This hinge clutch assembly is designed for easy replacement. Follow these steps to install your new clutch:
- Prepare the Toilet Seat: Carefully lift the toilet seat and lid to expose the hinge mechanisms. Depending on your specific i.life model, you may need to unclip or unscrew the seat from the hinge posts.
- Remove Old Clutch Assembly: Locate the existing soft-close clutch within the hinge mechanism. This is typically a cylindrical component. Gently pry or slide out the old clutch. Note its orientation for correct installation of the new part.
- Clean Hinge Area: Clean any debris or residue from the hinge housing where the clutch sits. This ensures a smooth fit for the new component.
- Insert New Clutch Assembly: Align the new Ideal Standard TV90167 clutch assembly with the hinge housing. Ensure it is inserted fully and correctly oriented, matching the position of the old clutch. You may hear a click as it locks into place.
- Reattach Toilet Seat: Reattach the toilet seat and lid to the hinge posts, ensuring all connections are secure.
- Test Soft-Close Function: Gently lower the toilet seat and lid to verify that the soft-close mechanism is working correctly. The seat and lid should lower slowly and silently.
Image 2: Technical drawing showing dimensions of the hinge clutch assembly. Dimensions are approximately 85mm total length, 40mm insertion depth, with a diameter of 6mm at the pin and 18mm at the main body.
படம் 3: எ.கா.ample of a toilet seat hinge mechanism where the clutch assembly would be installed.
இயக்க வழிமுறைகள்
The Ideal Standard i.life Soft-Close Hinge Clutch Assembly operates automatically. Once installed, simply lower the toilet seat or lid, and the mechanism will engage, allowing it to close gently and quietly without manual assistance. No specific user interaction is required beyond normal use of the toilet seat.
பராமரிப்பு
To ensure the longevity and proper function of your soft-close hinge clutch assembly:
- சுத்தம்: Clean the exterior of the hinge area regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive materials, as these can damage the plastic components.
- ஆய்வு: Periodically check the hinge area for any signs of wear, damage, or looseness. Ensure the clutch remains securely seated within its housing.
- Avoid Forceful Closing: While the soft-close mechanism is designed to prevent slamming, avoid manually forcing the seat or lid down, as this can prematurely wear out the clutch.
சரிசெய்தல்
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| Soft-close not working or seat slams | Clutch assembly is worn out or incorrectly installed. | Ensure the clutch is fully inserted and correctly oriented. If the issue persists, the clutch may need replacement. |
| Toilet seat feels loose or wobbly | Hinge fixings are loose or damaged. | Check and tighten all screws and fasteners securing the toilet seat to the toilet bowl. Ensure the clutch is properly seated. |
| Squeaking noise during closing | Friction in the hinge mechanism or clutch. | Clean the hinge area. A small amount of silicone-based lubricant (avoid oil-based) can be applied to moving parts, but avoid direct contact with the clutch mechanism itself. |
விவரக்குறிப்புகள்
- பிராண்ட்: சிறந்த தரநிலை
- மாதிரி எண்: TV90167
- இணக்கத்தன்மை: Ideal Standard i.life A (T453101) and i.life B (T468301) soft-close toilet seats
- பொருள்: Mixed materials (typically durable plastics and internal damping components)
- நிறம்: நடுநிலை
- தயாரிப்பு பரிமாணங்கள் (L x W x H): தோராயமாக 10 x 10 x 2.51 செ.மீ
- பொருளின் எடை: தோராயமாக 40 கிராம்
- இதில் உள்ள கூறுகள்: 1x Hinge Clutch Assembly
- பிறப்பிடமான நாடு: சீனா
உத்தரவாதம் மற்றும் ஆதரவு
This Ideal Standard product is manufactured to high-quality standards. For specific warranty information or technical support, please refer to the documentation provided with your original Ideal Standard i.life toilet seat or visit the official Ideal Standard website. You may also contact Ideal Standard customer service directly for assistance with replacement parts.
தொடர்பு தகவல்: பார்வையிடவும் www.idealstandard.com பிராந்திய தொடர்பு விவரங்கள் மற்றும் ஆதரவு வளங்களுக்கு.
