1. அறிமுகம்
This manual provides comprehensive instructions for the proper installation, operation, and maintenance of your new Toro 98-7135 Rear Drive Wheels. These wheels are designed as direct replacements for specific Toro lawn mower models, ensuring optimal performance and traction. Please read this manual thoroughly before attempting any installation or maintenance procedures.
2. பாதுகாப்பு தகவல்
Always prioritize safety when working with machinery. Failure to follow these safety guidelines may result in personal injury or damage to equipment.
- மின் இணைப்பை துண்டிக்கவும்: Before performing any installation, maintenance, or inspection, ensure the lawn mower's engine is off and the spark plug wire is disconnected to prevent accidental starting.
- பாதுகாப்பு உபகரணங்களை அணியுங்கள்: Always wear appropriate personal protective equipment, including safety glasses and gloves, to protect against potential hazards.
- சரியான கருவிகளைப் பயன்படுத்தவும்: Utilize the correct tools for each task to avoid stripping fasteners or causing damage.
- அறுக்கும் இயந்திரத்தைப் பாதுகாக்கவும்: If lifting the mower, ensure it is securely supported on a stable surface to prevent it from falling.
- மோவர் கையேட்டைப் படியுங்கள்: Refer to your lawn mower's original owner's manual for specific safety instructions and procedures related to your model.
3. தொகுப்பு உள்ளடக்கங்கள்
தொகுப்பைத் திறக்கும்போது அனைத்து பொருட்களும் உள்ளனவா என்பதையும் சேதமடையாமல் இருப்பதையும் சரிபார்க்கவும்:
- 2 x Toro 98-7135 Rear Drive Wheels
ஏதேனும் கூறுகள் காணாமல் போயிருந்தாலோ அல்லது சேதமடைந்திருந்தாலோ, உடனடியாக உங்கள் சப்ளையரைத் தொடர்பு கொள்ளவும்.
4. விவரக்குறிப்புகள்
Key specifications for the Toro 98-7135 Rear Drive Wheels:
| விவரக்குறிப்பு | விவரம் |
|---|---|
| பகுதி எண் | 98-7135 |
| விட்டம் | 8 அங்குலம் |
| சலிப்பு | 1/2 அங்குலம் |
| கியர் வகை | Metal Gear with 42 Teeth |
| பொருள் | Durable Rubber Tire, Metal Gear |
| இணக்கத்தன்மை | Replaces OEM 107-3709, compatible with most Toro Super Recycler models. Verify part number for exact fit. |
5. அமைவு மற்றும் நிறுவல்
Follow these steps to replace the rear drive wheels on your Toro lawn mower. Refer to your mower's specific service manual for detailed instructions if available.
- அறுக்கும் இயந்திரத்தைத் தயாரிக்கவும்:
- இயந்திரம் அணைக்கப்பட்டு குளிர்ச்சியாக இருப்பதை உறுதிசெய்யவும்.
- தற்செயலான தொடக்கத்தைத் தடுக்க தீப்பொறி பிளக் கம்பியைத் துண்டிக்கவும்.
- Place the mower on a flat, stable surface. If tilting the mower, ensure the carburetor side is up to prevent fuel leakage.
- பழைய சக்கரத்தை அகற்று:
- Locate the retaining bolt or nut securing the wheel to the axle. This is typically found in the center of the wheel.
- Using an appropriate wrench or socket, loosen and remove the bolt/nut.
- Carefully pull the old wheel off the axle. Note the position of any washers or spacers for reinstallation.
- Inspect Axle and Components:
- Clean any debris from the axle and surrounding area.
- Inspect the axle for damage or excessive wear.
- Ensure any existing spacers or washers are clean and in good condition.
- புதிய சக்கரத்தை நிறுவவும்:
- Align the new Toro 98-7135 wheel with the axle. Ensure the gear side of the wheel faces inward towards the mower deck.
- Slide the wheel onto the axle, making sure any spacers or washers are correctly positioned.
- Reinstall the retaining bolt or nut. Tighten it securely, but do not overtighten, as this can damage the wheel or axle.
- Repeat for Second Wheel: Follow the same steps for the other rear drive wheel.
- இறுதி சரிபார்ப்பு:
- Ensure both new wheels are securely attached and spin freely.
- தீப்பொறி பிளக் கம்பியை மீண்டும் இணைக்கவும்.
- Test the mower's drive system in a safe, open area.

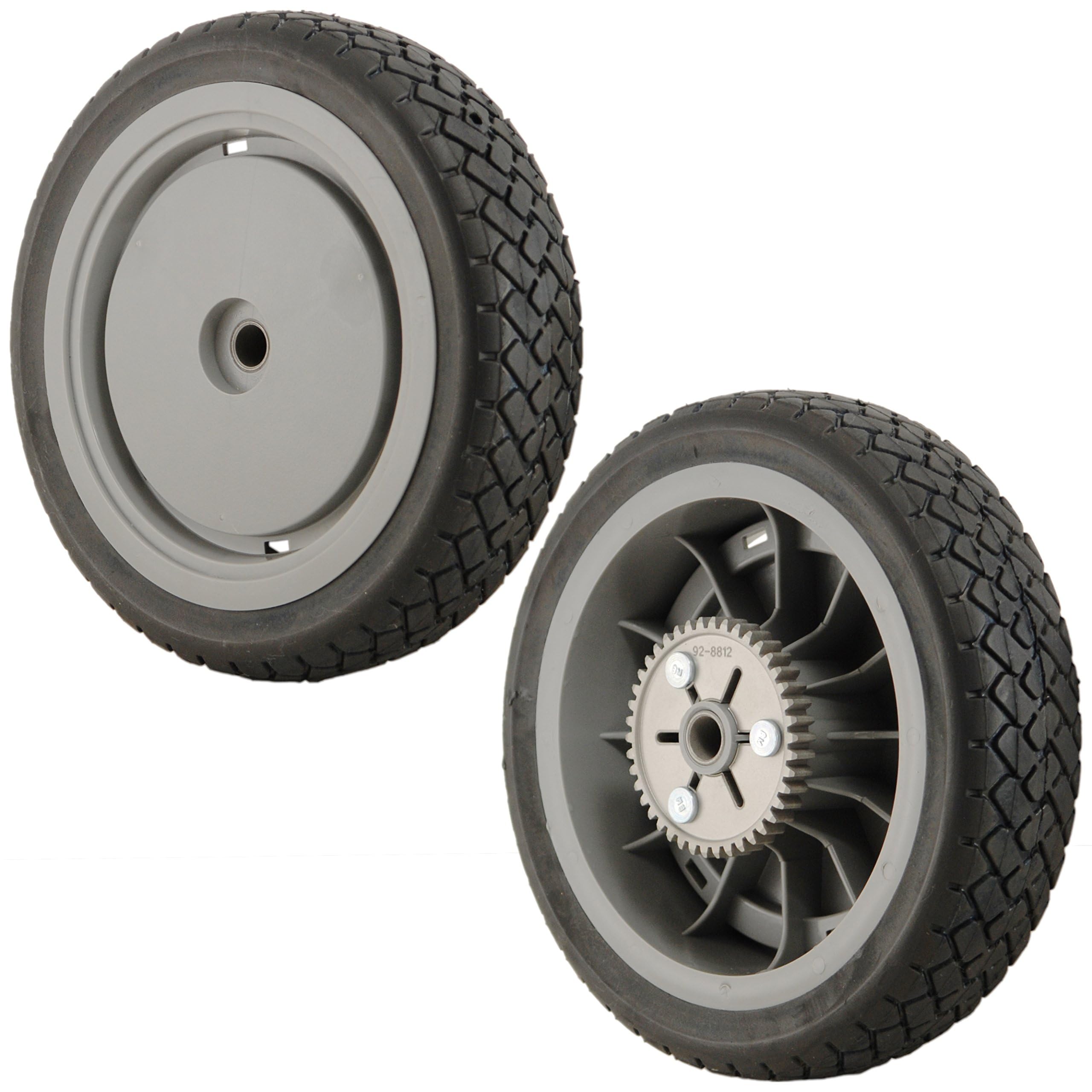

படம் 1: முன் view of the Toro 98-7135 Rear Drive Wheels, showing the tread pattern and hub design.
படம் 2: பின்புறம் view of the Toro 98-7135 Rear Drive Wheels, highlighting the integrated metal gear with 42 teeth.
6. இயக்க பரிசீலனைகள்
While wheels do not have operational controls, proper usage of your lawn mower contributes to their longevity:
- Even Terrain: Operate the mower on relatively even terrain to minimize stress on the wheels and drive system.
- தடைகளைத் தவிர்க்கவும்: Steer clear of large rocks, roots, or other obstacles that could damage the wheels or tires.
- சரியான சேமிப்பு: Store the mower in a dry, protected area to prevent environmental damage to the rubber and metal components.
7. பராமரிப்பு
Regular maintenance helps extend the life of your rear drive wheels and ensures consistent performance.
- வழக்கமான ஆய்வு: Periodically inspect the wheels for signs of wear, cracks in the rubber, or damage to the gear teeth. Check for any looseness in the wheel attachment.
- சுத்தம்: After each use, remove grass clippings, dirt, and debris from around the wheels and axle area. This prevents buildup that can impede movement or cause premature wear.
- உயவு: Consult your lawn mower's manual for specific lubrication requirements for the axle and wheel bearings. If applicable, apply a small amount of appropriate grease to ensure smooth operation.
- Tire Tread: Monitor the tire tread. Worn tread can reduce traction, especially on inclines or wet grass. Replace wheels if the tread is significantly worn.
8. சரிசெய்தல்
Address common issues with your rear drive wheels using the following guide:
| பிரச்சனை | சாத்தியமான காரணம் | தீர்வு |
|---|---|---|
| Wheel not turning freely | Debris caught in axle/wheel, overtightened bolt, damaged bearing. | Remove debris, check bolt tightness, inspect/replace bearing if damaged. |
| Excessive wheel wobble | Loose retaining bolt, bent axle, damaged wheel hub. | Tighten bolt, inspect axle for bends, replace wheel if hub is damaged. |
| மோசமான இழுவை | Worn tire tread, slippery conditions. | Replace wheels if tread is worn, avoid mowing on excessively wet or icy surfaces. |
| Grinding or unusual noise from wheel | Damaged gear, lack of lubrication, foreign object. | Inspect gear for damage, apply lubrication if needed, remove any obstructions. |
9. தயாரிப்பு வீடியோ
காட்சிப்படுத்தலுக்கு இந்த வீடியோவைப் பாருங்கள்.view of the Toro 98-7135 Rear Drive Wheels, including features and specifications.
காணொளி: முடிந்ததுview of the Lawn Mower Rear Wheel Gear Assembly Replacement, compatible with OEM 107-3709. This video demonstrates the product's features, including its durable rubber tire and metal gear with 42 teeth, and highlights its quality and ease of installation.
10. உத்தரவாதம் மற்றும் ஆதரவு
For warranty information, please refer to the documentation provided by the seller or manufacturer at the time of purchase. If you require technical assistance or have questions regarding the installation or performance of your Toro 98-7135 Rear Drive Wheels, please contact the product seller or Toro customer support directly.
Always provide your product model number (98-7135) and any relevant purchase details when seeking support.
