அறிமுகம்
நன்றி, நன்றி.asing the OBEST EN8829-B Wireless Weather Station. This device provides accurate indoor and outdoor temperature and humidity readings, a 6-level weather forecast, time, date, and an alarm function. Please read this manual carefully to ensure proper setup and operation.
தொகுப்பு உள்ளடக்கங்கள்
- OBEST EN8829-B Weather Station (Main Unit)
- வயர்லெஸ் வெளிப்புற சென்சார்
- யூ.எஸ்.பி பவர் கேபிள்
- பயனர் கையேடு
தயாரிப்பு முடிந்துவிட்டதுview
The OBEST EN8829-B features a 6-inch color LCD display and a wireless outdoor sensor for comprehensive environmental monitoring.

Image: The main display unit of the OBEST EN8829-B weather station, showing indoor and outdoor temperature and humidity, weather forecast, date, moon phase, and time.
முக்கிய அலகு அம்சங்கள்:
- 6-inch HTN color LCD display
- 6 touch buttons: [SET], [MODE], [ALERTS], [UP], [SNOOZE/LIGHT], [DOWN]
- 12H/24H time selection
- Alarm with snooze function (5-60 minutes)
- Perpetual calendar with M/D or D/M display
- Week display in 5 languages (German, English, French, Italian, Spanish)
- Temperature display in °C / °F
- Barometric pressure indication (last 12 hours) in hPa/mb or inHg
- 6-level weather forecast (sunny, cloudy, overcast, rainy, heavy rain, snow)
- 8 types of moon phase indication
- Memory function for highest/lowest indoor/outdoor temperature and humidity
- Indoor temperature alarm (upper and lower limits)
- USB சார்ஜிங் போர்ட்
- Adjustable backlight (4 levels with DC power, 10 seconds with battery)
வெளிப்புற சென்சார் அம்சங்கள்:
- IP54 நீர்ப்புகா மதிப்பீடு
- Supports up to 3 sensors (one included)
- RF 433.92 MHz detection frequency
- Wireless transmission distance up to 60m / 100ft
- குறைந்த சக்தி அறிகுறி
அமைவு
1. பிரதான அலகுக்கு மின்சாரம் வழங்குதல்
The main unit can be powered by either DC power or batteries.
- DC Power (Recommended): Connect the provided USB power cable to the main unit and a suitable USB power adapter (not included). This allows the backlight to remain on continuously with adjustable brightness.
- பேட்டரி சக்தி: Insert 3 AAA batteries (not included) into the battery compartment. When powered by batteries, the backlight will illuminate for 10 seconds after a button press to conserve power.

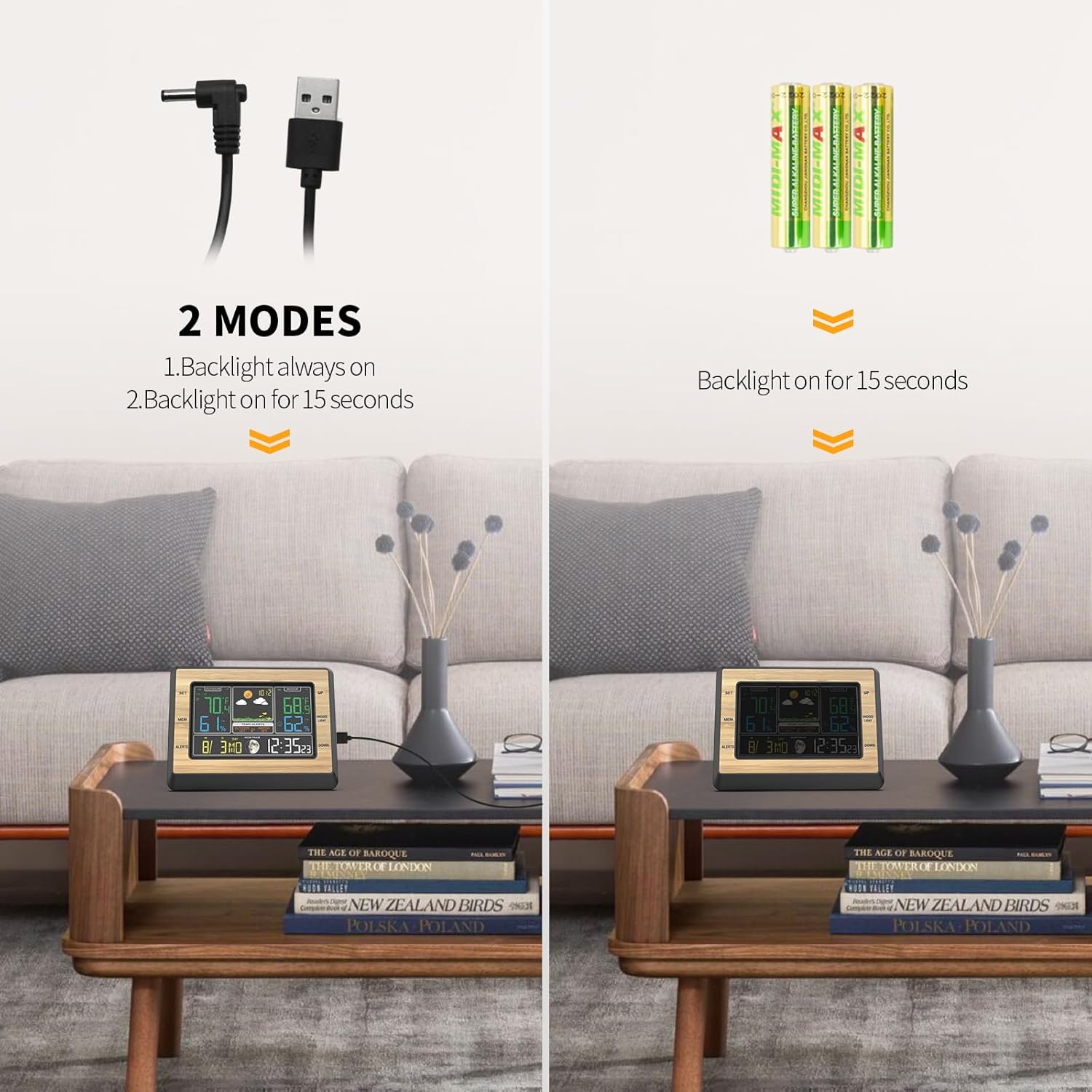

Image: Illustration of the two power modes for the weather station: DC power for continuous backlight and battery power for 15-second backlight.
2. Installing and Pairing the Outdoor Sensor
- Insert 2 AAA batteries (not included) into the outdoor sensor.
- Place the outdoor sensor in a shaded, dry location away from direct sunlight and rain, but where it can still transmit data to the main unit. The sensor is IP54 waterproof, but protection from extreme elements is recommended for longevity.
- The main unit will automatically search for and connect to the outdoor sensor. This may take a few minutes. Ensure both units are within the 60m / 100ft transmission range.

Image: Depicts the wireless data transmission between the remote outdoor sensor and the indoor receiver unit.
3 ஆரம்ப அமைப்புகள்
After powering on, you may need to set the time, date, and other preferences.
- அழுத்திப் பிடிக்கவும் [அமை] நேர அமைப்பு பயன்முறையில் நுழைய பொத்தான்.
- பயன்படுத்தவும் [உ.பி.] மற்றும் [கீழ்] மதிப்புகளை சரிசெய்ய பொத்தான்கள்.
- அழுத்தவும் [அமை] again to confirm and move to the next setting (e.g., 12/24H format, hour, minute, year, month, day, date format M/D or D/M, language for day of week).
- அழுத்தவும் [பயன்முறை] button to exit settings at any time.
- To change temperature units (°C/°F), press the [உ.பி.] button in normal display mode.
இயக்க வழிமுறைகள்
1. தகவல் காட்சி
The main display shows various information:
- வெளிப்புற வெப்பநிலை & ஈரப்பதம்: காட்சியின் இடது பக்கத்தில் அமைந்துள்ளது.
- உட்புற வெப்பநிலை & ஈரப்பதம்: Located on the right side of the display.
- வானிலை முன்னறிவிப்பு: Icons indicating sunny, cloudy, rainy, etc., in the upper middle section.
- நேரம் & தேதி: At the bottom right.
- சந்திரனின் கட்டம்: Icon next to the date.
- பாரோமெட்ரிக் அழுத்தம்: Displayed in the upper middle section, below the weather forecast.
2. பின்னொளி சரிசெய்தல்
When powered by DC, the backlight has 4 adjustable levels.
- அழுத்தவும் [உறக்கநிலை/ஒளி] button to cycle through high brightness, medium light, low light, and off.

Image: Four panels illustrating the different backlight brightness levels (high, medium, low, off) of the weather station display.
3. Alarm and Snooze Function
- அலாரம் அமைத்தல்: அழுத்தவும் [பயன்முறை] button repeatedly until the alarm time is displayed. Hold [அமை] to adjust the alarm time using [மேல் கீழ்]. அழுத்தவும் [அமை] உறுதி செய்ய.
- செயல்படுத்துதல்/முடக்குதல் அலாரம்: In alarm display mode, press [உ.பி.] அலாரத்தை ஆன் அல்லது ஆஃப் செய்ய.
- உறக்கநிலை: அலாரம் ஒலிக்கும்போது, அழுத்தவும் [உறக்கநிலை/ஒளி] button to activate snooze. The alarm will sound again after 5-60 minutes (adjustable in settings).
4. Temperature/Humidity Alerts
You can set upper and lower limits for indoor temperature alerts.
- அழுத்தவும் [எச்சரிக்கைகள்] பொத்தான் view current alert settings.
- பிடி [எச்சரிக்கைகள்] to enter alert setting mode. Use [மேல் கீழ்] to adjust the desired high/low temperature limits.
- அழுத்தவும் [எச்சரிக்கைகள்] உறுதிப்படுத்த மற்றும் அடுத்த அமைப்புக்கு செல்ல.
- When the temperature exceeds the set limits, an alarm will sound.
5. Max/Min Temperature and Humidity Memory
- அழுத்தவும் [MEM] button to display the maximum recorded indoor/outdoor temperature and humidity.
- அழுத்தவும் [MEM] again to display the minimum recorded values.
- பிடி [MEM] to clear the recorded maximum/minimum values.
6. வானிலை முன்னறிவிப்பு
The weather station provides a 6-level weather forecast based on barometric pressure changes. This is an approximation and should not replace professional weather services.

Image: Collage of six different weather scenes (desert, clouds, rain, snow) illustrating the 6-mode weather forecast feature of the station.
பராமரிப்பு
1. பேட்டரி மாற்று
- When the low battery indicator appears on the display for either the main unit or the outdoor sensor, replace the batteries promptly.
- For the main unit, use 3 AAA batteries. For the outdoor sensor, use 2 AAA batteries.
- புதிய பேட்டரிகளைச் செருகும்போது சரியான துருவமுனைப்பை உறுதி செய்யவும்.
2. சுத்தம் செய்தல்
- பிரதான அலகு மற்றும் சென்சாரை மென்மையான, d துடைப்பான் மூலம் துடைக்கவும்.amp துணி.
- Do not use abrasive cleaners or solvents, as these may damage the display or casing.
3. பொது பராமரிப்பு
- Avoid exposing the main unit to direct sunlight, extreme temperatures, or high humidity.
- Ensure the outdoor sensor is placed in a location that minimizes direct exposure to harsh weather conditions, despite its waterproof rating.
சரிசெய்தல்
- வெளிப்புற வெப்பநிலை/ஈரப்பதம் அளவீடு இல்லை:
- Check if the outdoor sensor batteries are installed correctly and are not depleted.
- Ensure the sensor is within the transmission range (up to 60m / 100ft) and there are no major obstructions (thick walls, metal objects) between the sensor and the main unit.
- Try re-pairing the sensor by removing batteries from both units, then reinserting them into the sensor first, then the main unit.
- துல்லியமற்ற வெப்பநிலை/ஈரப்பத அளவீடுகள்:
- Ensure the sensor is not in direct sunlight or near heat sources/vents, which can affect readings.
- Allow both units to stabilize for at least 30 minutes after setup for accurate readings.
- காட்சி மங்கலாகவோ அல்லது காலியாகவோ உள்ளது:
- If using battery power, the backlight only stays on for 10 seconds after a button press.
- If using DC power, check the power cable connection. Press the [உறக்கநிலை/ஒளி] பிரகாசத்தை சரிசெய்ய பொத்தான்.
- Replace batteries if the low battery indicator is on.
- அலாரம் ஒலிக்கவில்லை:
- அலாரம் செயல்பாடு செயல்படுத்தப்பட்டுள்ளதா என்பதை உறுதிப்படுத்தவும் (காட்சியில் அலாரம் ஐகான் தெரியும்).
- Check the alarm time settings.
விவரக்குறிப்புகள்

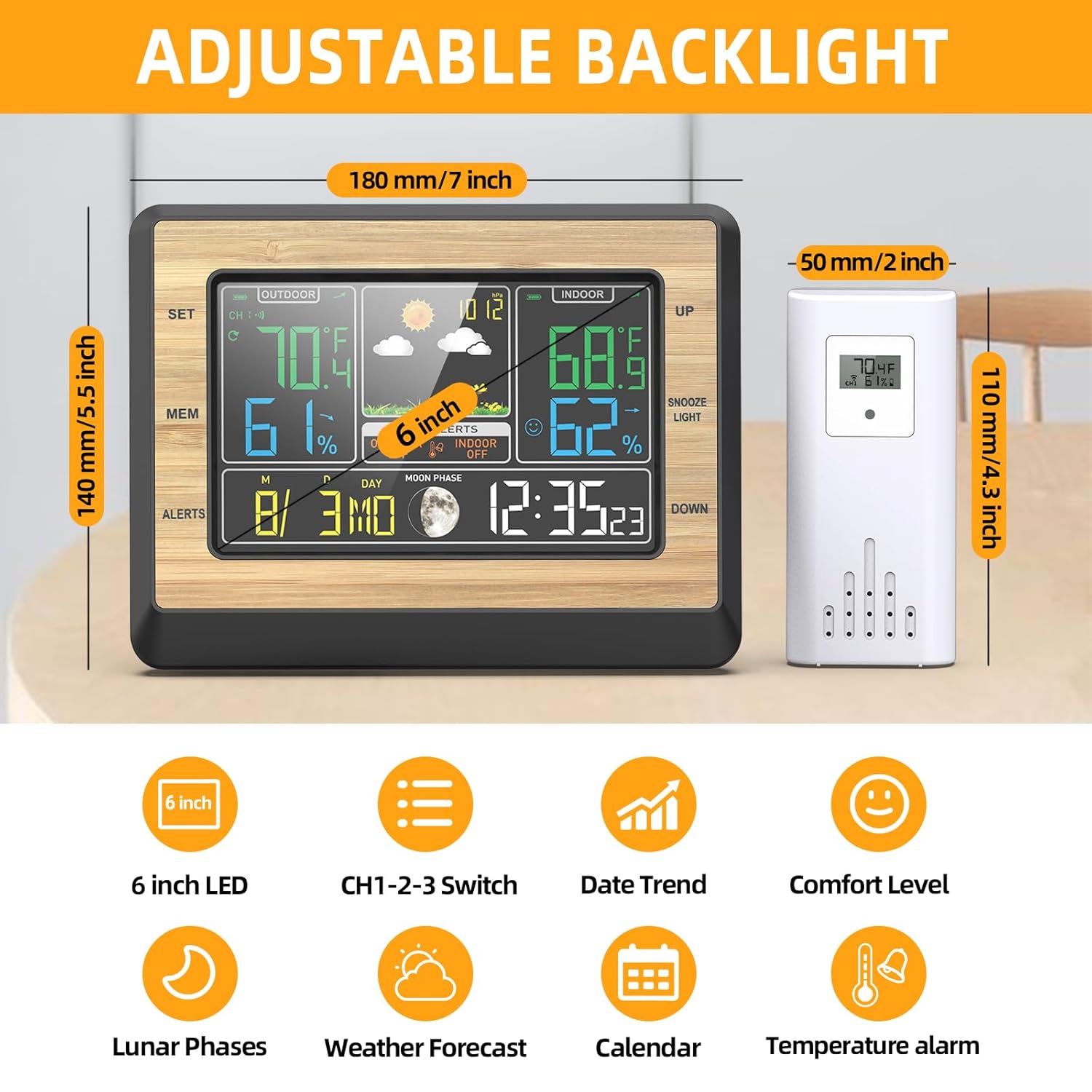

Image: Diagram showing the dimensions of the main unit (180mm/7 inch width, 140mm/5.5 inch height) and the outdoor sensor (50mm/2 inch width, 110mm/4.3 inch height), along with icons representing key features.
| அம்சம் | விவரம் |
|---|---|
| மாதிரி | EN8829-B |
| காட்சி வகை | 6-இன்ச் கலர் எல்சிடி |
| உட்புற வெப்பநிலை வரம்பு | -20°C ~ +70°C (-4°F ~ 158°F) |
| வெளிப்புற வெப்பநிலை வரம்பு | -40°C ~ +70°C (-40°F ~ 158°F) |
| வெப்பநிலை தீர்மானம் | 0.1 ° C / ° F |
| ஈரப்பதம் வரம்பு | 20% RH ~ 95% RH |
| பாரோமெட்ரிக் அழுத்த வரம்பு | 850hPa/mb (25.1 inHg) -- 1100hPa/mb (32.48 inHg) |
| வயர்லெஸ் அதிர்வெண் | 433.92 மெகா ஹெர்ட்ஸ் |
| வயர்லெஸ் டிரான்ஸ்மிஷன் தூரம் | 60 மீ / 100 அடி வரை (திறந்தவெளி) |
| முக்கிய அலகு சக்தி | USB DC 5V or 3 x AAA batteries (not included) |
| வெளிப்புற சென்சார் பவர் | 2 x AAA பேட்டரிகள் (சேர்க்கப்படவில்லை) |
| தயாரிப்பு பரிமாணங்கள் (முக்கிய அலகு) | 19 x 6 x 15 செ.மீ (L x W x H) |
| தயாரிப்பு எடை | 445 கிராம் |
| பொருள் | அக்ரிலோனிட்ரைல் புடாடீன் ஸ்டைரீன் (ABS) |
உத்தரவாதம் மற்றும் ஆதரவு
Warranty information for the OBEST EN8829-B Wireless Weather Station is not explicitly provided in the product details. For specific warranty terms or technical support, please contact the retailer or manufacturer directly.
