DK2 Single Axle Galvanized Folding Utility Trailer Instruction Manual

1. அறிமுகம் மற்றும் முடிந்துவிட்டதுview

This manual provides essential information for the safe and effective assembly, operation, and maintenance of your DK2 MFT4X8G Single Axle Galvanized Folding Utility Trailer. This trailer kit is designed for hauling various cargo, featuring a robust hot-dipped galvanized tubular steel construction and a high-performance anti-slip textured UV powder-coated trailer bed. Its unique folding design allows for compact and secure storage when not in use. The trailer is equipped with D.O.T LED lighting and a flat 4-wire harness for immediate use upon proper assembly.

Figure 1.1: The DK2 MFT4X8G Single Axle Galvanized Folding Utility Trailer in its assembled configuration, showcasing its flat bed and single axle design.

2. பாதுகாப்பு தகவல்

Operating any trailer requires adherence to strict safety protocols to prevent injury or damage. Please read and understand all safety rules and instructions thoroughly before attempting to assemble, operate, or maintain this trailer.

• கையேட்டைப் படியுங்கள்: Always read the entire instruction manual before initial use and keep it accessible for future reference.
• Understand Limitations: Do not force the trailer to perform tasks for which it was not designed. Be aware of its applications and limitations, especially regarding payload capacity (maximum 1450 lb / 657.7 kg).
• முறையான பராமரிப்பு: Regular and proper maintenance is crucial. A poorly maintained trailer can become a significant safety hazard.
• Secure Hitching: Ensure the 2-inch coupler is securely attached to the towing vehicle's hitch ball and the safety chains are properly crossed and connected.
• சுமை விநியோகம்: Distribute cargo evenly over the trailer bed, with approximately 60% of the weight forward of the axle, to maintain stability during transit. Secure all loads to prevent shifting.
• டயர் அழுத்தம்: Verify tire pressure before each use. Refer to the tire sidewall for recommended pressure. The trailer is equipped with two 5.30-12 6-ply tires.
• லைட்டிங் சோதனை: Always confirm that all D.O.T LED lights (tail lights, brake lights, turn signals) are functional and properly connected via the flat 4-wire harness before driving.
• Road Regulations: Be aware of and comply with all local and national road regulations concerning trailer operation, including registration requirements (e.g., NVIS form for ministry of transportation).

3. அமைப்பு மற்றும் அசெம்பிளி

The DK2 MFT4X8G trailer is shipped as an assembly kit. All necessary components for assembly and use are included: the main frame, light set, hardware kit, 2-inch coupler with safety chain and S-hook, leaf spring, and two 5.30-12 6-ply tires. Detailed, step-by-step assembly instructions are provided in a separate guide included with your purchase. It is imperative to follow these instructions precisely to ensure the structural integrity and safe operation of the trailer.

Ensure you have adequate space and the appropriate tools before beginning assembly. It is recommended to have at least two people for certain assembly steps due to the size and weight of components.

4. இயக்க வழிமுறைகள்

4.1. Hitching the Trailer

• Ensure your towing vehicle has a compatible 2-inch hitch ball.
• Lower the trailer coupler onto the hitch ball, ensuring it locks securely.
• Attach the safety chains to the towing vehicle's hitch receiver, crossing them underneath the coupler.
• Connect the flat 4-wire harness from the trailer to the towing vehicle's electrical connector. Verify all lights are functioning correctly.

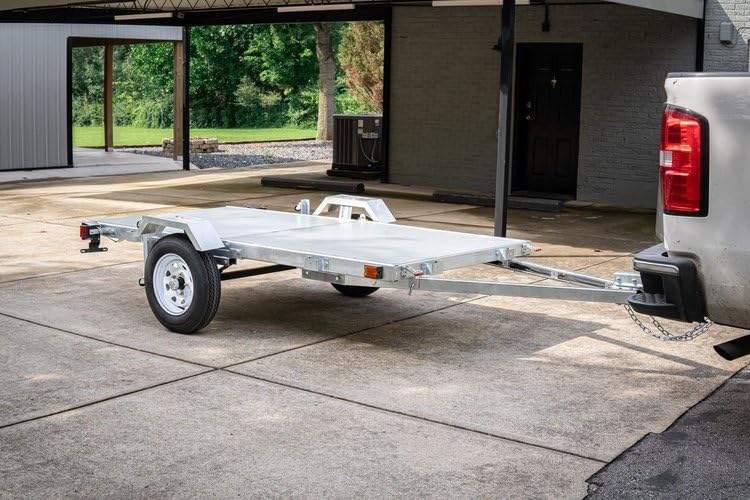

Figure 4.1: The DK2 MFT4X8G trailer properly hitched to a towing vehicle, demonstrating the connection point.

4.2. Loading and Hauling

• The trailer has a maximum payload capacity of 1450 lb (657.7 kg). Do not exceed this limit.
• Load items evenly across the 4 ft. x 8 ft. trailer bed. Place heavier items closer to the axle and slightly forward to maintain proper tongue weight.
• Always secure your cargo using appropriate tie-downs, straps, or nets to prevent shifting or falling during transport. The anti-slip textured UV powder-coated bed helps with cargo stability.

படம் 4.2: ஒரு மேல்நிலை செலவு view of the trailer, illustrating the ample 4 ft. x 8 ft. bed size suitable for various cargo.

4.3. சேமிப்பிற்காக மடிப்பு

One of the key features of the MFT4X8G is its folding functionality, allowing for compact storage. Refer to the specific folding instructions in your assembly manual for the correct procedure. Ensure the trailer is empty and on a level surface before attempting to fold it.

Figure 4.3: The trailer in its folded, upright storage position, demonstrating its space-saving design.

படம் 4.4: முன் view of the folded trailer, highlighting the stability provided by its design in the storage configuration.

5. பராமரிப்பு

Regular maintenance is essential to ensure the longevity and safe operation of your DK2 MFT4X8G trailer. The hot-dipped galvanized tubular steel frame offers excellent corrosion resistance, but other components require periodic inspection and care.

• டயர்கள்: Regularly check tire pressure (5.30-12 6-ply tires) and inspect for wear, cuts, or bulges. Ensure lug nuts are tightened to the manufacturer's specifications.
• சக்கர தாங்கு உருளைகள்: Inspect and lubricate wheel bearings annually or as recommended by the bearing manufacturer.
• விளக்கு: Periodically check all D.O.T LED lights and wiring for damage or corrosion. Ensure the 4-wire harness connection is clean and secure.
• Coupler and Safety Chains: Inspect the 2-inch coupler for wear and proper locking mechanism function. Check safety chains and S-hooks for damage or excessive wear.
• Frame and Fasteners: Inspect the galvanized steel frame for any signs of damage, bending, or cracks. Check all bolts, nuts, and fasteners for tightness and re-tighten as necessary.
• Leaf Springs: Inspect the leaf springs for any signs of damage, rust, or deformation.

படம் 5.1: விரிவானது view of the trailer wheel, highlighting the tire and hub for maintenance inspection.

6. சரிசெய்தல்

This section provides solutions to common issues you might encounter with your utility trailer.

7. விவரக்குறிப்புகள்

8. உத்தரவாதம் மற்றும் ஆதரவு

8.1. வரையறுக்கப்பட்ட உத்தரவாதம்

Detail K2 (DK2) provides a limited warranty for this product. If, within one (1) year from the original date of purchase, this product fails due to a defect in material or workmanship, Detail K2 will, at its option, repair, replace, or supply any defective part. This warranty covers manufacturing defects and does not cover damage resulting from misuse, neglect, improper assembly, or normal wear and tear. Please retain your proof of purchase for warranty claims.

8.2. வாடிக்கையாளர் ஆதரவு

For technical assistance, parts inquiries, or warranty claims, please contact DK2 customer support. Refer to the contact information provided in your product packaging or visit the official DK2 website for the most current support details. When contacting support, please have your model number (MFT4X8G) and proof of purchase readily available.
