BIGBIG WON ரெயின்போ 2 SE வயர்லெஸ் கட்டுப்படுத்தி வழிமுறை கையேடு

1. அறிமுகம்

This manual provides detailed instructions for the setup, operation, and customization of your BIGBIG WON Rainbow 2 SE Wireless Controller. This multi-platform controller is compatible with Nintendo Switch, Windows 10 & 11 PCs, Android 7.0+ devices, and iOS 14.0+ devices. Please read this manual thoroughly to ensure proper use and to maximize your gaming experience.

படம் 1.1: முன் view of the BIGBIG WON Rainbow 2 SE Wireless Controller.

2. தொகுப்பு உள்ளடக்கங்கள்

கீழே பட்டியலிடப்பட்டுள்ள அனைத்து பொருட்களும் உங்கள் தொகுப்பில் சேர்க்கப்பட்டுள்ளதா என்பதை சரிபார்க்கவும்:

• 1 x BIGBIG WON Rainbow 2 SE Gamepad
• 3 pairs of interchangeable joysticks (short, middle, high)
• 1 x 4-way D-pad
• 1 x 8-way D-pad
• 1 x 2.4G USB Dongle
• 1 x டைப்-சி கேபிள்
• 1 x பயனர் கையேடு

Image 2.1: All components included in the BIGBIG WON Rainbow 2 SE package.

3. தயாரிப்பு முடிந்துவிட்டதுview

The Rainbow 2 SE controller features a robust design with various customizable elements to enhance your gaming experience. It includes Hall-effect triggers, 12-bit ADC joysticks, and multiple connectivity options.

3.1 முக்கிய அம்சங்கள்

• பல தள இணக்கத்தன்மை: Supports Switch, Windows 10/11, Android 7.0+, iOS 14.0+.
• பல்துறை இணைப்பு: 2.4G wireless, Bluetooth, and wired USB connections.
• Advanced Motion Control: BIGBIG WON's GYROCON+ Tech for PC motion control.
• Precision Triggers: 256-level Hall-effect triggers with trigger-stop switches.
• தனிப்பயனாக்கக்கூடிய பொத்தான்கள்: 2 back buttons and 2 top additional buttons for Macro, Turbo, and Remapping.
• High-Resolution Joysticks: 12-bit ADC joysticks with 2000 levels axis resolution and 0 deadzone.
• பரிமாற்றக்கூடிய கூறுகள்: 3 sets of joysticks and 4-way & 8-way D-pads.
• PC Application: Dedicated PC App for advanced customization (not supported on mobile).
• Dual Motor Vibration: 255-level adjustable vibration feedback.
• Keyboard Mapping: Supports keyboard mapping for advanced in-game skills.

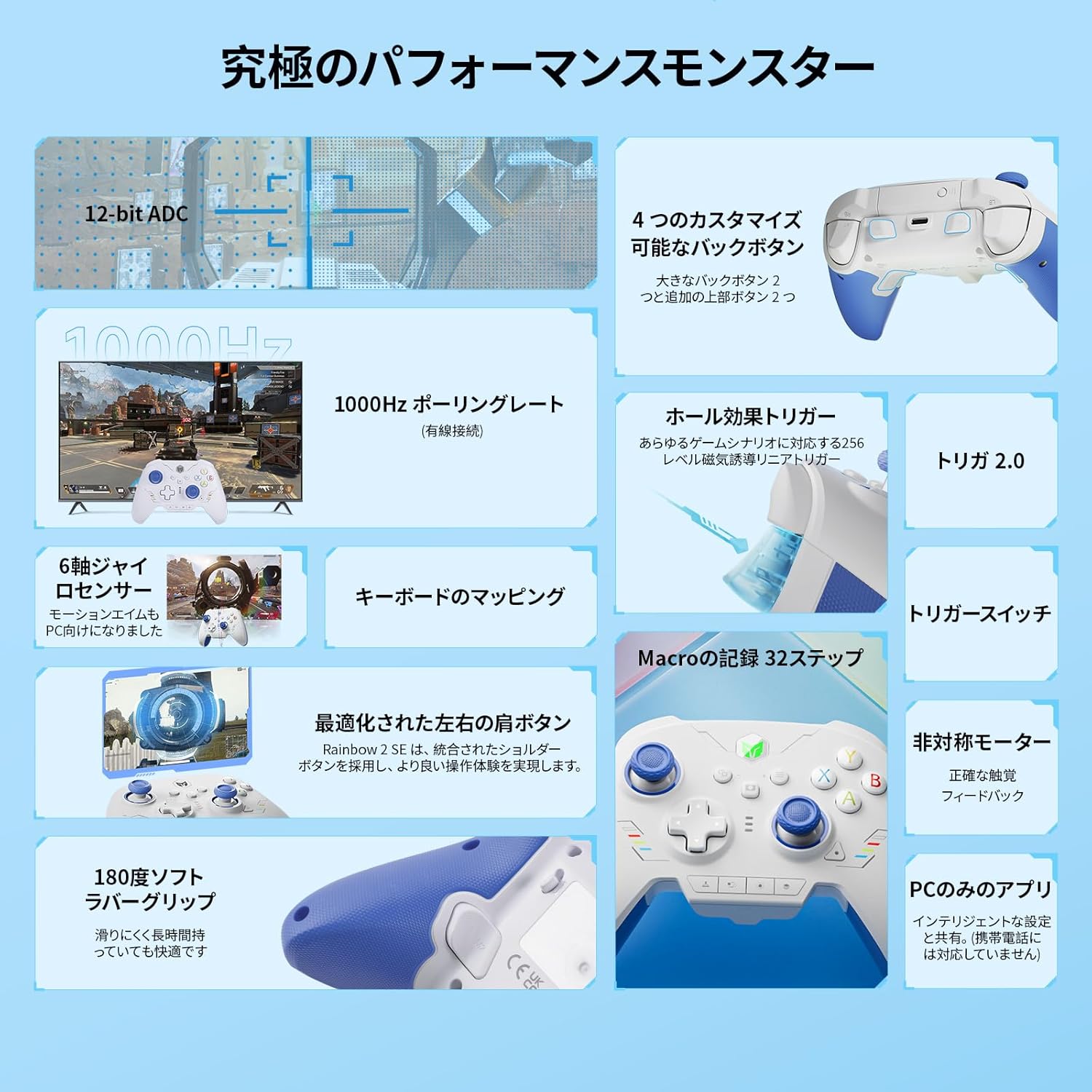

படம் 3.1: முடிந்ததுview of the controller's multi-platform compatibility and key features.

3.2 கன்ட்ரோலர் லேஅவுட்

The controller's layout is familiar to standard gamepads, with additional customizable buttons and features.

படம் 3.2: முன் view of the controller highlighting its buttons and analog sticks.

3.3 அதிகாரப்பூர்வ தயாரிப்பு வீடியோ

காணொளி 3.1: ஒரு அதிகாரிview of the BIGBIG WON Rainbow 2 SE Wireless Gaming Controller, showcasing அதன் வடிவமைப்பு மற்றும் அம்சங்கள்.

4. அமைவு & இணைப்பு

4.1 கம்பி இணைப்பு

1. Connect the Type-C cable to the controller's USB-C port.
2. Plug the other end of the Type-C cable into your PC or compatible device.
3. The controller will automatically be recognized. The wired polling rate is 1000Hz.

4.2 2.4G வயர்லெஸ் இணைப்பு

1. Insert the 2.4G USB dongle into an available USB port on your PC or compatible device.
2. Press the HOME button on the controller to power it on. The controller will automatically connect to the dongle.
3. The 2.4G wireless polling rate is 125Hz. The wireless range is approximately 30 feet.

4.3 புளூடூத் இணைப்பு

1. Press the HOME button on the controller to power it on.
2. On your device (Switch, Android, iOS), navigate to Bluetooth settings and search for available devices.
3. Select "BIGBIG WON Rainbow 2 SE" from the list to pair.
4. The Bluetooth wireless polling rate is 125Hz.

4.4 Platform Switching

The controller supports both X-input (for PC/Android) and Switch modes. The default mode is X-input.

• After connecting to a device, you may need to switch to the corresponding mode for normal operation. Refer to your device's settings for specific instructions.
• மாறுவதற்கு: After connecting, enable "Settings - Controllers and Sensors - Pro Controller Wired Connection" on your Nintendo Switch.
• For Steam: It is recommended to block Steam output to protect the controller's original input.

5. Customization & Advanced Features

5.1 PC Application

The BIGBIG WON PC App allows for extensive customization of your controller. This application is supported on PC only and is not available for mobile devices.

• Adjust motion control sensitivity.
• Configure joystick and trigger dead zones and sensitivity.
• Program Macros.
• Remap buttons.

Image 5.1: The PC application interface for customizing controller settings.

5.2 தனிப்பயனாக்கக்கூடிய பொத்தான்கள்

The controller features 2 back buttons and 2 top additional buttons that can be programmed for Macro, Turbo, or Remapping functions.

• மேக்ரோ: Record up to 32 steps for complex command sequences.
• டர்போ: Enable rapid-fire functionality for specific buttons.
• ரீமேப்பிங்: Assign any button's function to another customizable button.

Image 5.2: Diagram illustrating the location and functionality of the customizable back and top buttons.

5.3 இயக்கக் கட்டுப்பாடு

Leverage BIGBIG WON's 3rd generation GYROCON+ Tech for motion control on PC. Native motion control is supported on Switch.

Image 5.3: Visual representation of motion control functionality with the controller.

5.4 Hall-Effect Triggers & Trigger Stops

The 256-level Hall-effect triggers provide precise control. Utilize the trigger-stop switches for different gaming scenarios:

• Short Pull: Ideal for shooting games (e.g., APEX) for quick response.
• Long Pull: Suitable for racing games (e.g., Forza Horizon 5) for analog control.

படம் 5.4: பின்புறம் view of the controller showing the trigger-stop switches and their application.

5.5 Joystick & D-pad Customization

The controller comes with 3 pairs of interchangeable joysticks (short, middle, high) and both 4-way and 8-way D-pads to suit various game genres and personal preferences.

• Short Joystick: For faster input, suitable for fighting games.
• Middle Joystick: Standard for general gaming.
• High Joystick: For increased precision, ideal for FPS games.
• 4-way D-pad: Standard for most games.
• 8-way D-pad: Specifically designed for fighting games (FTG).

Image 5.5: Illustration of the different joystick heights and D-pad types.

5.6 அதிர்வு அமைப்புகள்

Adjust the dual motor vibration intensity to your preference. The controller offers 255 levels of vibration feedback.

5.7 Keyboard Mapping

The Rainbow 2 SE supports keyboard mapping, allowing you to assign keyboard functions to controller buttons for executing advanced in-game skills through simple settings in the PC App.

Image 5.6: Controller shown alongside a keyboard, illustrating keyboard mapping capabilities.

6. பராமரிப்பு & பராமரிப்பு

• Keep the controller clean by wiping it with a soft, dry cloth. Avoid abrasive cleaners or solvents.
• நேரடி சூரிய ஒளி மற்றும் தீவிர வெப்பநிலையிலிருந்து விலகி, குளிர்ந்த, உலர்ந்த இடத்தில் கட்டுப்படுத்தியை சேமிக்கவும்.
• கட்டுப்படுத்தியைக் கைவிடுவதையோ அல்லது வலுவான தாக்கங்களுக்கு ஆளாக்குவதையோ தவிர்க்கவும்.
• If the glossy plastic surfaces accumulate fingerprints, gently wipe them with a microfiber cloth.

7. சரிசெய்தல்

• கட்டுப்படுத்தி இணைக்கப்படவில்லை: Ensure the controller is powered on and fully charged. Verify the 2.4G dongle is properly inserted or Bluetooth is enabled and paired. Check platform mode settings.
• Input lag/delays: Ensure the 2.4G dongle is not obstructed and is plugged into an easily accessible port (preferably at the back of a PC to avoid accidental bumps). For wired connection, ensure the cable is securely connected.
• Joystick drift: The controller features BIGBIG WON adaptive calibration to reduce drift. If drift persists, use the PC App for recalibration.
• கட்டுப்படுத்தி பதிலளிக்கவில்லை: Press and hold the HOME button for 10 seconds until the controller vibrates to perform a reset.
• PC App not working: Ensure you are using the PC App on a Windows PC, as it is not supported on mobile devices.

8. விவரக்குறிப்புகள்

9. உத்தரவாதம் & ஆதரவு

BIGBIG WON offers a 30-day free replacement or full refund, along with lifetime before-sale and after-sale service for all your queries.

For further assistance, support, or community engagement, please visit the official BIGBIG WON Discord server:

Join the BIGBIG WON Discord Community
