STRICH TEN BAND EQ Pedal User Manual

அறிமுகம்

The STRICH TEN BAND EQ Pedal is a versatile 10-band equalizer effects pedal designed for electric guitar and bass. It allows precise tonal shaping across a wide frequency range, from 31.25Hz to 16kHz, with a gain/attenuation range of ±12dB for each band. Crafted from high-quality aluminum alloy, this pedal offers exceptional durability and ensures transparent, clean tonal quality thanks to its true bypass design.

படம் 1: முன் view of the STRICH TEN BAND EQ Pedal, showcasing the 10 frequency sliders and the master level slider, along with the footswitch and input/output jacks.

முக்கிய அம்சங்கள்

• பிரீமியம் கட்டுமானம்: Made from high-quality aluminum alloy for durability and a balanced weight distribution.
• 10-Band Versatile Equalizer: Features ten independent frequency bands (31.25Hz, 62.5Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, 16KHz) plus an overall master level band.
• ±12dB Gain / Attenuation: Each frequency band offers five quick-setting points at 0, ±6, and ±12dB for precise sound modulation.
• சிறிய மற்றும் சிறிய: Designed for easy transport, ensuring resilience against accidental drops.
• True Bypass Design: Ensures signal integrity, delivering transparent and clean tonal quality without unwanted noise or signal loss when the effect is disengaged.

அமைவு மற்றும் இணைப்புகள்

Before operating the pedal, ensure all connections are secure and the power supply meets the required specifications.

1. மின்சாரம்: The STRICH TEN BAND EQ Pedal requires a DC 9V adapter with a negative center and positive outside polarity. (Note: The power adapter is not included and must be purchased separately.)
2. உள்ளீடு இணைப்பு: Connect your electric guitar or bass to the "INPUT" jack on the pedal using a standard 1/4-inch instrument cable.
3. வெளியீட்டு இணைப்பு: பெடலின் "வெளியேற்று" பலாவை உங்கள் amplifier, sound card, or other effects pedals using a standard 1/4-inch instrument cable.
4. பவர் ஆன்: Once all connections are made, connect the DC 9V power adapter to the pedal's power input. The pedal is now ready for use.

Figure 2: Diagram illustrating the connection points for the STRICH TEN BAND EQ Pedal, showing input from guitar/bass and output to amplifier/sound card, along with the power input jack.

Figure 3: Visual guide for correct connections and power supply considerations. It emphasizes connecting effects correctly and ensuring power supply compatibility.

பெடலை இயக்குதல்

The STRICH TEN BAND EQ Pedal provides precise control over your instrument's tone. Familiarize yourself with the sliders to sculpt your sound effectively.

• அதிர்வெண் பட்டைகள்: The pedal features ten horizontal sliders, each corresponding to a specific frequency band: 31.25Hz, 62.5Hz, 125Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 8KHz, and 16KHz. These cover the full spectrum of guitar and bass frequencies.
• Gain/Attenuation Control: Each frequency slider allows you to boost or cut the signal for that specific frequency by up to ±12dB. The markings on the pedal indicate 0dB (flat), ±6dB, and ±12dB. Adjusting these sliders up will boost the frequency, while adjusting them down will cut it.
• Level Slider: The "LEVEL" slider on the far right controls the overall output volume of the pedal. Use this to match the volume of your bypassed signal or to provide a volume boost for solos.
• ட்ரூ பைபாஸ் ஃபுட்ஸ்விட்ச்: The footswitch engages or disengages the equalization effect. When disengaged (bypassed), the pedal allows your instrument's signal to pass through without any tonal alteration, preserving the original tone.

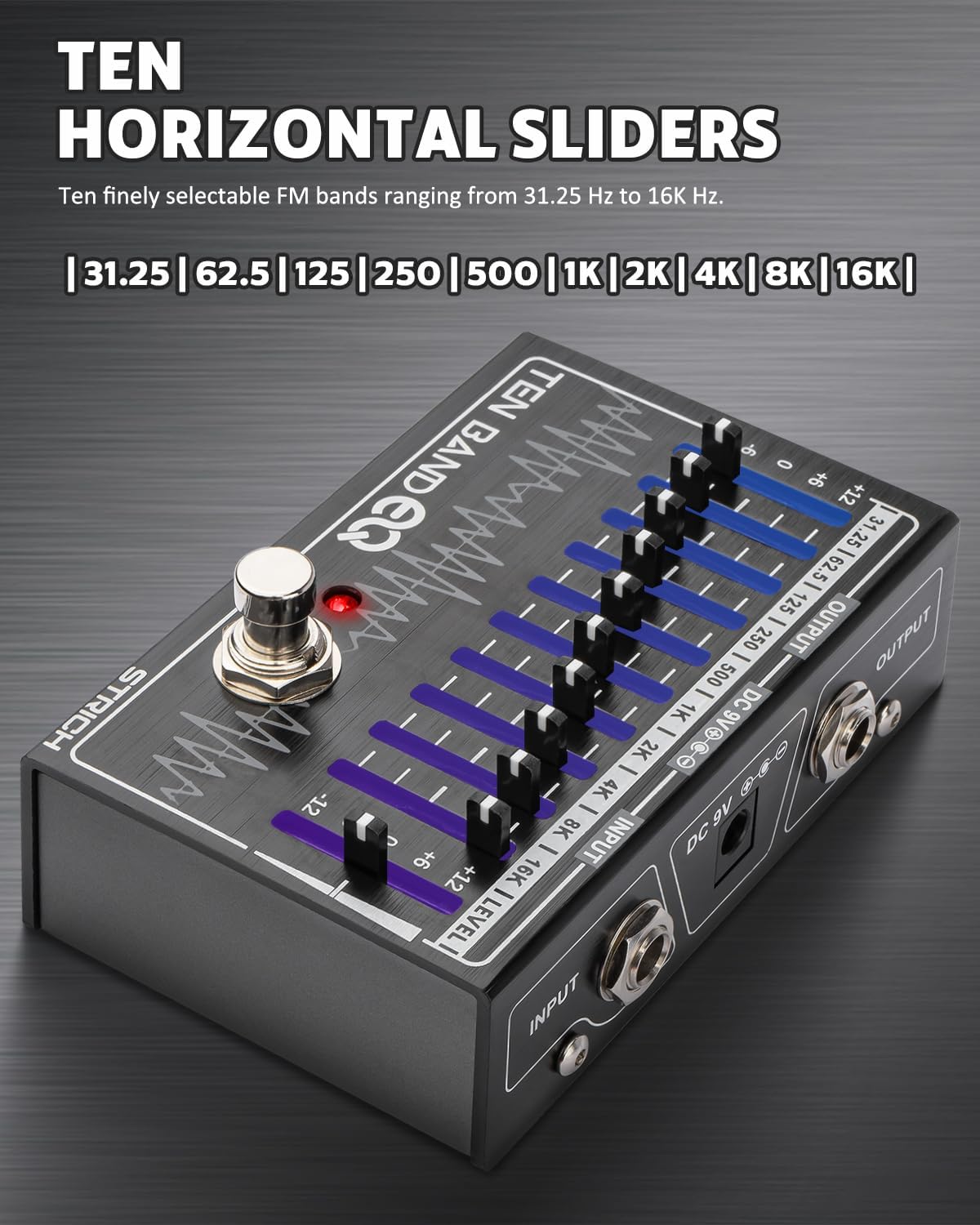

படம் 4: நெருக்கமான காட்சி view of the ten horizontal sliders, each controlling a specific frequency band from 31.25 Hz to 16 kHz, allowing for precise tonal shaping.

Figure 5: Illustration demonstrating the ±12dB gain and attenuation range for each frequency band, with marked points at 0, ±6, and ±12dB.

விவரக்குறிப்புகள்

Figure 6: Diagram illustrating the physical dimensions of the STRICH TEN BAND EQ Pedal in centimeters and inches.

பராமரிப்பு

To ensure the longevity and optimal performance of your STRICH TEN BAND EQ Pedal, follow these general maintenance guidelines:

• சுத்தம்: Use a soft, dry cloth to wipe down the pedal's exterior. Avoid using abrasive cleaners, solvents, or excessive moisture, which can damage the finish or internal components.
• சேமிப்பு: Store the pedal in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity. When not in use for extended periods, disconnect it from power.
• கையாளுதல்: While the pedal is designed to be durable, avoid dropping it or subjecting it to harsh impacts. Handle cables carefully to prevent damage to jacks.

சரிசெய்தல்

If you encounter issues with your STRICH TEN BAND EQ Pedal, consider the following common troubleshooting steps:

• No Power/No LED:
  • Ensure the DC 9V power adapter is correctly connected and functioning.
  • Verify that the power adapter has a negative center polarity.
  • மின் நிலையத்தை சரிபார்க்கவும்.
• No Sound/Weak Sound:
  • Check all instrument cables for proper connection and integrity. Try swapping cables.
  • Ensure your guitar and ampலைஃபையர் சரியாக வேலை செய்கிறார்கள்.
  • Verify that the "LEVEL" slider on the pedal is not set to minimum.
  • If using other pedals, try connecting the EQ pedal directly to the ampசிக்கலை தனிமைப்படுத்த லிஃபையர்.
• தேவையற்ற சத்தம்/ஹம்:
  • Ensure you are using a regulated DC 9V power supply specifically designed for guitar pedals.
  • உங்கள் அமைப்பில் தரை சுழல்கள் இருக்கிறதா என்று சோதிக்கவும்.
  • Move the pedal away from power transformers or other sources of electromagnetic interference.

உத்தரவாதம் மற்றும் ஆதரவு

STRICH products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official STRICH website. If you require technical support or have questions not covered in this manual, please contact STRICH customer service through the details provided on their official channels or the retailer where you purchased the product.

மேலும் தகவல் மற்றும் தயாரிப்பு புதுப்பிப்புகளுக்கு, பார்வையிடவும் STRICH Store on Amazon.
