Alphacool Core RX 9070 XT TUF + Prime GPU Water Block with Backplate

1. தயாரிப்பு முடிந்துவிட்டதுview

The Alphacool Core RX 9070 XT TUF + Prime GPU Water Block is designed for the latest AMD Radeon RX generation graphics cards. This water block is part of the Core product series, offering high-quality construction and optimized cooling performance. It features a copper cooler milled from a single piece, a brass connection terminal with a nylon cover, and chrome plating for durability. The integrated acrylic top allows for impressive aRGB lighting. The design includes an optimized cooler base and nozzle for efficient heat transfer.

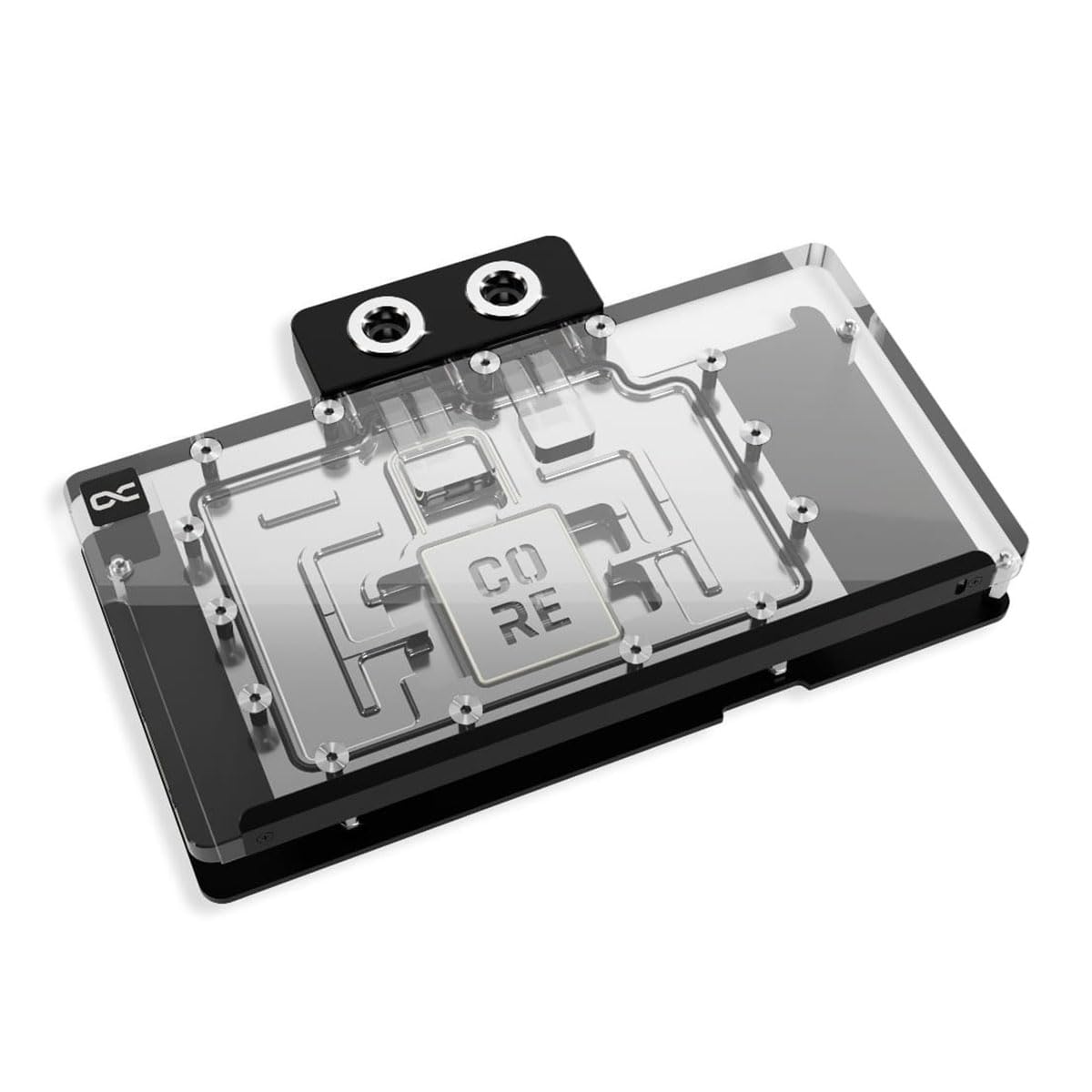

Figure 1: Alphacool Core RX 9070 XT TUF + Prime GPU Water Block with Backplate, showing the overall design and clear acrylic top.

2. பெட்டியில் என்ன இருக்கிறது

நிறுவலைத் தொடங்குவதற்கு முன் அனைத்து கூறுகளும் உள்ளனவா என்பதைச் சரிபார்க்கவும்.

• 1x GPU Water Block
• 1x பேக் பிளேட்
• பெருகிவரும் திருகுகள் மற்றும் துவைப்பிகள்
• வெப்ப பட்டைகள்
• வெப்ப பேஸ்ட்
• RGB Connection Cable (if applicable)

3. அமைவு மற்றும் நிறுவல்

This section provides detailed instructions for installing your Alphacool Core GPU Water Block. Ensure your system is powered off and disconnected from the mains before proceeding. It is recommended to consult your graphics card's manual for disassembly instructions.

3.1 தயாரிப்பு

1. சேகரிப்பு கருவிகள்: You will need a small Phillips head screwdriver, isopropyl alcohol, and lint-free cloths.
2. Disassemble GPU: Carefully remove the stock cooler from your graphics card. This typically involves unscrewing the mounting screws around the GPU core and removing any fan headers or RGB cables.
3. Clean GPU: Use isopropyl alcohol and a lint-free cloth to thoroughly clean the GPU die and memory modules, removing all traces of old thermal paste and thermal pads.

3.2 வெப்பப் பொருட்களைப் பயன்படுத்துதல்

Proper application of thermal paste and pads is critical for optimal cooling performance.

Figure 2: The copper cooler base of the water block, where thermal paste and pads are applied.

1. வெப்ப பேஸ்ட்டைப் பயன்படுத்துங்கள்: Apply a small amount of thermal paste (pea-sized dot or thin line) to the center of the GPU die. Do not spread it manually; the pressure from the water block will distribute it evenly.
2. வெப்பப் பட்டைகளைப் பயன்படுத்துங்கள்: Cut the provided thermal pads to the correct sizes according to the instruction diagram (usually included with the product, or refer to Alphacool's website for a specific model diagram). Carefully place them on the memory modules and VRM components on the graphics card PCB. Ensure good contact and no air bubbles.

3.3 நீர் தடுப்பை ஏற்றுதல்

Figure 3: Underside of the water block showing mounting holes for secure attachment to the GPU PCB.

1. Position Water Block: Carefully align the water block with the mounting holes on the graphics card PCB. Lower the block straight down onto the GPU, ensuring the thermal paste and pads make proper contact.
2. பாதுகாப்பான நீர் தொகுதி: Insert the provided mounting screws through the back of the PCB and into the water block. Tighten them in a diagonal pattern (e.g., top-left, bottom-right, top-right, bottom-left) until snug. Do not overtighten.

3.4 Installing the Backplate

The backplate provides structural support and additional cooling for the rear of the PCB.

Figure 4: The aluminum backplate, designed to cover the entire back of the GPU PCB.

1. Apply Backplate Thermal Pads: If included, apply thermal pads to the designated areas on the backplate to make contact with the rear of the PCB components.
2. Mount Backplate: Align the backplate with the mounting holes on the rear of the graphics card. Secure it with the remaining screws, tightening them evenly.

3.5 Connecting to the Cooling Loop

படம் 5: மேல் view of the water block, highlighting the G1/4 inch connection ports for liquid cooling.

1. பொருத்துதல்களை நிறுவவும்: Screw G1/4 inch fittings (not included) into the inlet and outlet ports of the water block. Ensure they are hand-tightened securely.
2. குழாய் இணைப்பு: Connect your liquid cooling tubing to the installed fittings, ensuring a secure and leak-free connection.
3. Connect RGB (Optional): If your water block includes aRGB lighting, connect the provided RGB cable to a compatible 3-pin 5V aRGB header on your motherboard or a dedicated RGB controller.


   படம் 6: எ.காample of the integrated aRGB lighting in the water block.

4. இயக்க வழிமுறைகள்

1. கசிவு சோதனை: Before powering on your computer, perform a thorough leak test of your entire liquid cooling loop. It is highly recommended to use an air pressure tester for at least 15-30 minutes. Alternatively, fill the loop with coolant and run the pump for several hours with the system powered off, checking for any leaks.
2. ஆரம்ப தொடக்கம்: Once leak testing is complete and no leaks are detected, power on your system. Monitor coolant temperatures and GPU temperatures using appropriate software.
3. கண்காணிப்பு: Regularly monitor your system's temperatures to ensure optimal performance. High temperatures may indicate issues with coolant flow, air bubbles, or insufficient thermal contact.

5. பராமரிப்பு

• குளிரூட்டி மாற்றீடு: It is recommended to replace the coolant in your loop every 6-12 months, depending on the coolant type and usage.
• கணினி சுத்தம்: Periodically inspect your water block and other loop components for any signs of buildup or corrosion. If necessary, disassemble and clean with distilled water and a soft brush.
• தூசி அகற்றுதல்: Keep your system's radiators and fans clean from dust to maintain efficient heat dissipation.

6. சரிசெய்தல்

7. விவரக்குறிப்புகள்

• மாதிரி: 14779
• தயாரிப்பு பரிமாணங்கள் (L x W x H): 220.00 x 144.50 x 33.07 மிமீ (8.66"L x 5.69"W x 1.3"H)
• குளிரூட்டும் முறை: தண்ணீர்
• பொருள்: Copper (cooler), Brass (connection terminal), Nylon (cover), Aluminum (backplate), Acrylic (top)
• இணைப்பான் வகை: G1/4 inch threads for fittings
• RGB: Addressable RGB (3-Pin 5V)
• பொருளின் எடை: தோராயமாக 1.81 கிலோ (4 பவுண்டுகள்)

8. இணக்கத்தன்மை

This water block is compatible with the following graphics card models:

• Asus Prime Radeon RX 9070 OC Edition 16GB GDDR6
• Asus TUF Gaming Radeon RX 9070 OC Edition 16GB GDDR6
• Asus Prime Radeon RX 9070 XT OC Edition 16GB GDDR6
• Asus TUF Gaming Radeon RX 9070 XT OC Edition 16GB GDDR6

Always verify your specific graphics card model against the compatibility list before purchase and installation.

9. உத்தரவாதம் மற்றும் ஆதரவு

Alphacool products are manufactured to high standards and come with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the official Alphacool webதளம் அல்லது அவர்களின் வாடிக்கையாளர் ஆதரவைத் தொடர்புகொள்ளவும்.

For technical assistance, troubleshooting, or warranty claims, please visit the Alphacool support portal or contact their customer service department.

• அதிகாரி Webதளம்: www.alphacool.com
• ஆதரவு: அதிகாரப்பூர்வ வலைத்தளத்தில் ஆதரவு பிரிவைப் பார்க்கவும். webதளம்.
