NIVIAN NV-ACCESS-RFID

NIVIAN NV-ACCESS-RFID IP68 RFID Access Control System Instruction Manual

Model: NV-ACCESS-RFID

1. தயாரிப்பு முடிந்துவிட்டதுview

The NIVIAN NV-ACCESS-RFID is an IP68-rated outdoor RFID access control system designed for secure door access. It supports up to 2,000 users and offers convenient configuration via a remote control. This system provides a robust and reliable solution for managing access in various environments.

முக்கிய அம்சங்கள்:

  • RFID Card and Key Fob Access: Securely opens doors using EM 125kHz proximity cards and key fobs for quick, contactless entry.
  • அதிக பயனர் திறன்: Supports up to 2,000 users, making it suitable for communities, businesses, or facilities with high personnel turnover.
  • ரிமோட் கண்ட்ரோல் உள்ளமைவு: Manage users, cards, and functions easily with the included remote control, eliminating the need for internet connection or additional software.
  • IP68 Outdoor Rating: Features a robust, water-resistant, and dustproof design, ideal for outdoor installations. Constructed from durable ABS material.
  • Wiegand System Compatibility: Easily integrates into existing security systems through its 26-bit Wiegand input/output and configurable NO/NC relay output.

தொகுப்பு உள்ளடக்கம்:

  • NIVIAN Access Control Unit (NV-ACCESS-RFID)
  • Remote Control for configuration
  • Installation accessories (screws, wall plugs)
  • பயனர் கையேடு

தயாரிப்பு View:

NIVIAN NV-ACCESS-RFID Access Control Unit with feature icons

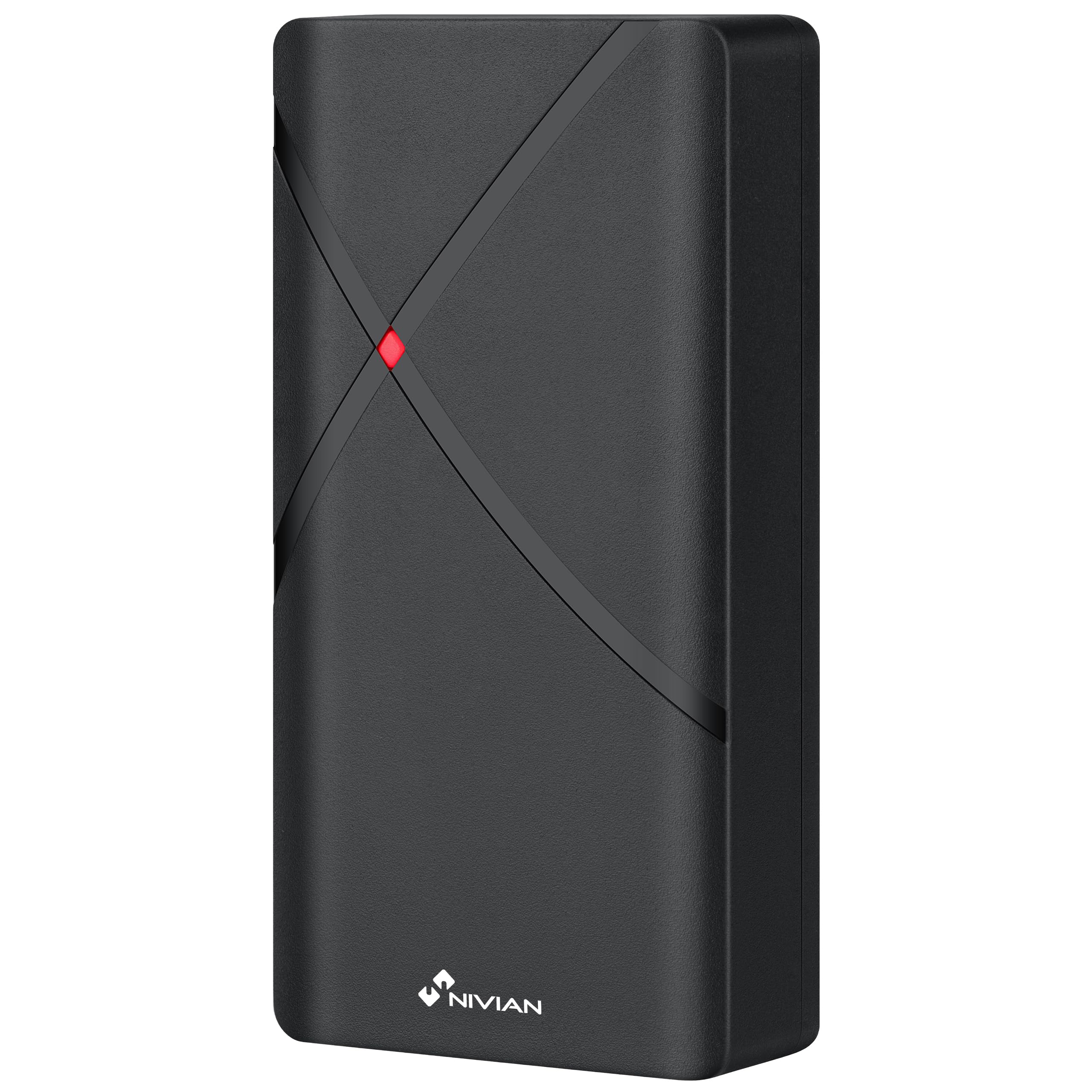

படம் 1: முன் view of the NIVIAN NV-ACCESS-RFID Access Control Unit, highlighting its remote control compatibility, RFID tag support, RFID card opening, and IP68 outdoor rating.
NIVIAN NV-ACCESS-RFID Access Control Unit in a weatherproof and anti-vandalism metal alloy casing
Figure 2: The NIVIAN NV-ACCESS-RFID unit demonstrating its weatherproof and anti-vandalism metal alloy construction, suitable for outdoor use.

2. நிறுவல் வழிகாட்டி

Proper installation is crucial for the optimal performance and security of your NIVIAN NV-ACCESS-RFID system. Please follow these steps carefully.

2.1 அலகு ஏற்றுதல்

  • Choose a suitable mounting location, ensuring it is within reach of necessary wiring and provides clear access for users. The IP68 rating allows for outdoor placement.
  • Use the provided mounting template (if included) to mark drilling points on the wall or door frame.
  • Drill holes and insert wall plugs. Secure the unit to the surface using the provided screws.
  • Ensure the unit is firmly attached and stable.
NIVIAN NV-ACCESS-RFID Access Control Unit mounted on a narrow door frame
Figure 3: The access control unit designed for installation on narrow door frames, demonstrating its compact form factor.
NIVIAN NV-ACCESS-RFID Access Control Unit mounted on a glass door
Figure 4: The access control unit mounted on a glass door, showcasing its versatility in installation environments.

2.2 வயரிங் வரைபடம்

Connect the access control unit to your power supply, electric lock, and optional exit button or doorbell according to the following diagram. Always ensure power is disconnected before performing any wiring.

Diagram showing wiring options for the NIVIAN NV-ACCESS-RFID system, including power supply, electric lock, remote control, and optional exit button
Figure 5: Wiring diagram illustrating the connections for power supply, electric lock, remote control, and optional exit button for the access control system.

Video 1: This video demonstrates the installation scheme for the access control system, detailing how to connect the various components such as the door access control unit, lock, power supply, exit button, proximity card reader, and doorbell.

3. இயக்க வழிமுறைகள்

The NIVIAN NV-ACCESS-RFID system is designed for user-friendly operation. This section covers basic access methods and user management.

3.1 Granting Access with RFID Cards/Key Fobs

  • To grant access, simply present a pre-programmed RFID card or key fob to the reader area on the unit.
  • The unit will emit an audible signal and/or visual indicator (e.g., green light) to confirm successful access.
A hand presenting an RFID card to the NIVIAN NV-ACCESS-RFID unit for door access
Figure 6: A user presenting an RFID card to the access control unit to gain entry, illustrating the contactless operation.

3.2 User Management (via Remote Control)

The remote control allows for easy management of users without complex software. Refer to the remote control's specific instructions for detailed programming steps.

  • பயனர்களைச் சேர்த்தல்: Use the remote control to enter programming mode, then follow the prompts to add new RFID cards or key fobs.
  • பயனர்களை நீக்குதல்: Access programming mode via the remote control and select the option to delete specific user cards or all users.
  • முதன்மை குறியீட்டை மாற்றுதல்: The remote control can also be used to change the system's master programming code for enhanced security.

4. தொழில்நுட்ப விவரக்குறிப்புகள்

அம்சம்விவரக்குறிப்பு
மாதிரி எண்NV-ACCESS-RFID
பிராண்ட்நிவியன்
பரிமாணங்கள் (LxWxH)12 x 7 x 2 செ.மீ
எடை300 கிராம்
நுழைவு பாதுகாப்பு (IP) மதிப்பீடுIP68 (நீர் மற்றும் தூசி எதிர்ப்பு)
பயனர் திறன்2,000 பயனர்கள் வரை
அணுகல் முறைRFID (EM 125kHz cards/key fobs)
கட்டமைப்புரிமோட் கண்ட்ரோல்
பொருள்நீடித்த ஏபிஎஸ்
இணக்கத்தன்மைWiegand systems (26-bit input/output)
சக்தி ஆதாரம்கம்பி மின்சாரம்

5. பராமரிப்பு

  • சுத்தம்: மென்மையான, டி-துணியால் யூனிட்டைத் தொடர்ந்து துடைக்கவும்.amp துணி. சிராய்ப்பு கிளீனர்கள் அல்லது கரைப்பான்களைத் தவிர்க்கவும்.
  • ஆய்வு: Periodically check for any signs of damage, loose connections, or wear and tear.
  • நிலைபொருள் புதுப்பிப்புகள்: உற்பத்தியாளரைச் சரிபார்க்கவும் webஉகந்த செயல்திறன் மற்றும் பாதுகாப்பை உறுதி செய்வதற்காக கிடைக்கக்கூடிய எந்த ஃபார்ம்வேர் புதுப்பிப்புகளுக்கான தளம்.

6. சரிசெய்தல்

பிரச்சனைசாத்தியமான காரணம்தீர்வு
யூனிட் இயங்கவில்லைமின்சாரம் இல்லை அல்லது வயரிங் பழுதடைந்துள்ளது.Check power connections and ensure the power supply is active. Verify wiring according to the installation diagram.
RFID card/fob not recognizedCard/fob not programmed or damaged. Incorrect card type.Ensure the card/fob is correctly programmed into the system using the remote control. Try a different card/fob. Verify it's an EM 125kHz type.
Door does not unlock after successful scanElectric lock malfunction or incorrect wiring.Check the electric lock's functionality independently. Verify the wiring between the access control unit and the lock. Ensure relay output is correctly configured (NO/NC).
ரிமோட் கண்ட்ரோல் வேலை செய்யவில்லைBattery low or out of range.Replace the remote control battery. Ensure you are within the effective range of the unit.

7. ஆதரவு மற்றும் உத்தரவாதம்

For technical support, warranty information, or additional resources, please visit the official NIVIAN webதளம் அல்லது வாடிக்கையாளர் சேவையை தொடர்பு கொள்ளவும்.

NIVIAN branding with links to NIVIANHOME WEB, இன்ஸ்tagram, and YouTube for support and tutorials
Figure 7: NIVIAN support information, including links to their webதளம், Instagram, and YouTube channel for technical assistance and tutorials.
